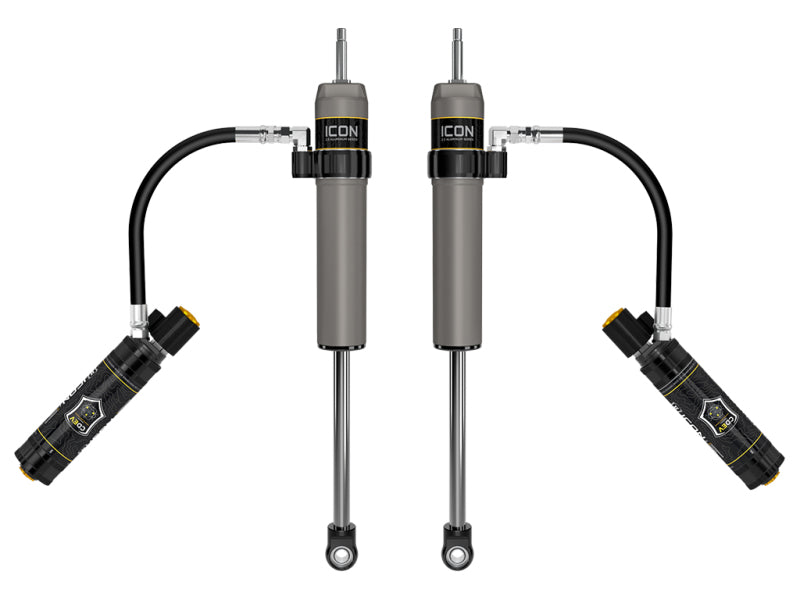

ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4.5in Lift Front 2.5 Series Shocks - Pair

Manufacturer Part # : 67811EP

Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. Remoyte reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Product Description - Extended

ICON 2.5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Associated Comments

• TECH NOTE: Can be installed as secondary shocks in OE location with ICON 4-6" lift coilover conversions with CDEV, part number 61721E. Part numbers 611003 and 191207 will also be required.
• TECH NOTE: Can be installed as secondary shocks in OE location with ICON 4-6" lift coilover conversions without CDEV. Part number 611003 will also be required.
• TECH NOTE: Compatible with 3-5" of front lift over stock on 2023-2025 Super Duty models equipped with Tremor package.
• TECH NOTE: Compatible with 4-6" of front lift over stock on 2023-2025 Super Duty models without Tremor package.

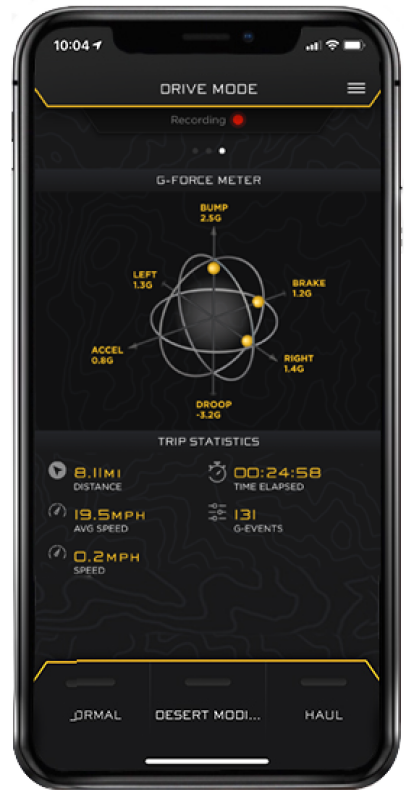

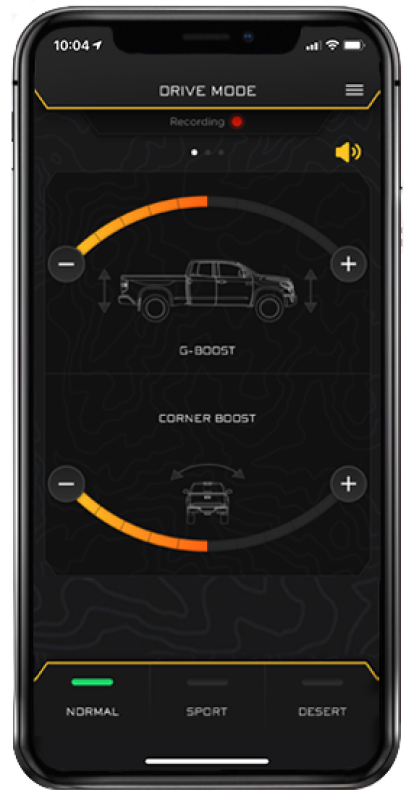

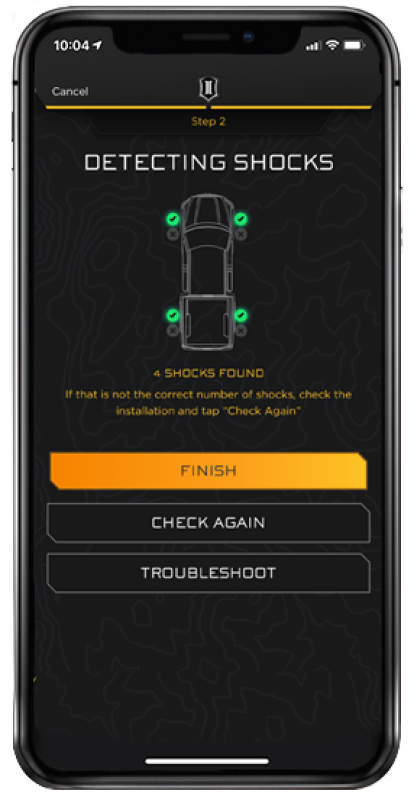

• APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
• APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
• TECH NOTE: Optimized for pairing with ICON 4.5" lift coil springs
• APPLICATION NOTE #150: Shocks are fully serviceable
• APPLICATION NOTE #1: Only fits 4WD models

Features and Benefits

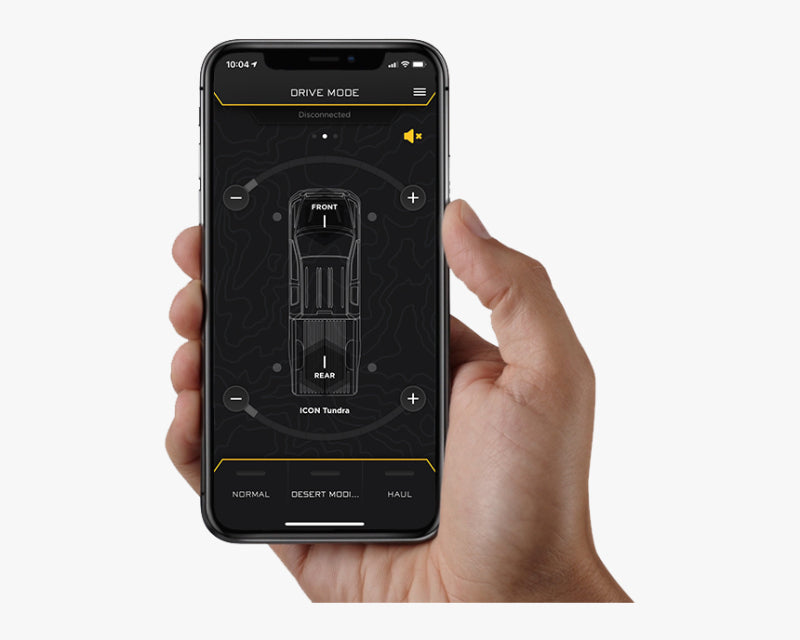

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Remote reservoirs maintain cooler operating temperatures during extended off-road use and allow for longer suspension travel
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and retunable

Product Description - Short

• ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4.5in Lift Front 2.5 Series Shocks - Pair
• SHOCK ABSORBER PAIR

Product Description - Long

23-25 FSD 4.5" FRONT 2.5 VS RR CDEV PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

67811EP
