⚠️ FL5 Owners (2023+) – Read This First
The 2023+ FL5 Civic Type R uses a Bosch MG1 ECU that is locked from the factory.
If the ECU is not unlocked, Hondata FlashPro will not communicate with the vehicle.
You have two main options:
- Hondata Jailbreaker: A hardware tool that allows you to unlock the ECU yourself without removing it from the car.
- Mail-In Bench Unlock Service: Send your ECU to a professional tuner (such as IMW-Tuned or Phearable) for unlocking using specialized programming equipment.
Note: If you own an FK8 (2017–2021), no unlock is required. You are ready to plug and play.
What Is a Base Map?
A base map is a preloaded calibration included with FlashPro.
It is a safe starting tune designed for:
- Stock vehicles or basic bolt-ons (intake, intercooler, downpipe)
- Specific octane levels (91 or 93)
- Improved throttle response and reduced factory rev hang
Base maps are conservative by design and intended as a starting point — not a full custom performance tune.
🧰 What You’ll Need

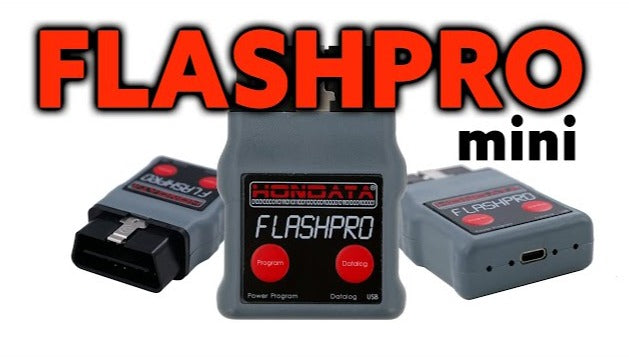

- Hondata FlashPro (FK8 or FL5 specific version)
- Unlocked ECU (FL5 only)
- Windows laptop with FlashPro Manager installed
- High-quality USB cable
- Battery charger or tender (strongly recommended for FL5)
The FL5 ECU is sensitive to voltage drops during flashing. Maintaining stable battery voltage is critical.
Step 1 – Software Prep & Firmware
- Download the latest FlashPro Manager from Hondata’s website.
- Connect your FlashPro to the laptop via USB.
- Go to Help > Check for Updates.
- If firmware updates are available, install them before proceeding.
Never flash the vehicle using outdated firmware.
Step 2 – Select the Correct Base Map
Open FlashPro Manager and click New Calibration.
Select your vehicle (FK8 or FL5), then choose a calibration that matches:
- Your fuel octane (91 or 93)
- Your modifications (stock, intake, downpipe, etc.)
Tip: If you have an aftermarket intake (PRL, Eventuri, etc.), select the calibration specifically designed for that intake to ensure proper MAF scaling.
🔌 Step 3 – Flashing the ECU
- Connect a battery charger to the vehicle.
- Plug FlashPro into the OBD2 port (under the driver-side dash).
- Turn ignition to ON (press Start twice with foot OFF the brake).
- In FlashPro Manager, click Upload.
- Wait 3–7 minutes. Do not disconnect anything.
When complete, follow the on-screen instructions to turn ignition OFF for 30 seconds, then back ON.
If voltage drops during flashing, the upload may fail and could require ECU recovery or professional reprogramming.
🚗 Step 4 – Clear DTCs & Idle Setup
After flashing, the dash may show temporary warnings such as:
- Rev-Match System Error
- VSA System Error
This is normal.
In FlashPro Manager, go to Online > Clear DTCs to remove these communication codes.
Start the engine and allow it to idle for 5–10 minutes.
Monitor Short Term Fuel Trim (STFT):
- Normal range: within +/- 10% during steady idle/cruise
- Sustained trims beyond +/- 20% may indicate the wrong intake calibration
📊 Step 5 – Datalog (Safety Check)
Take the vehicle for a 10–15 minute light drive and monitor:
- Knock Count: Occasional events can occur. Repeated knock under light load should be investigated.
-
Air/Fuel Ratio (AFR):
- Idle/Cruise: ~14.7
- Under Boost: Typically low 12s to high 11s depending on load
If readings appear abnormal, stop and consult a professional tuner before driving aggressively.
Common Mistakes to Avoid
- Flashing on a weak battery
- Selecting the wrong intake calibration
- Using a 93 map on 91 fuel
- Attempting to flash a locked FL5 ECU
Final Thoughts
Installing a Hondata base map is one of the safest ways to begin tuning your Civic Type R.
Done correctly, it improves drivability, sharpens throttle response, and creates a solid foundation for future modifications.
Keep voltage stable. Choose the correct calibration. Log your data.
Build it smart.
