Ford 5.0 Coyote (2018+)

In stock
Regular price $1,999.00
Product INFO
  • Vendor Xtreme-DI
  • SKU XDI.13531
  • Barcode 13531
Fuel Pumps
Camshaft
DI-Injectors
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

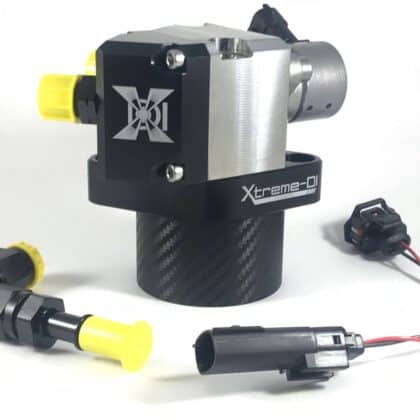

HPFP(s):
EVO: Please inquire for current ETA
HPFP45: Please inquire for current ETA

Injectors: In Stock

F150 Camshaft: In Stock
Mustang Camshaft: In Stock

If you would like information on becoming a dealer or about this product please click the button below!

APPLICATION
Maximum Rail Pressure:

OEM 200bar / 2900psi
EVO: 250bar / 3600psi
HPFP45: 260bar / 3800psi
Keep in mind, just because the HPFP is capable doesn’t mean the injectors are, stock injectors are limited to 220bar / 3200psi

MECHANICAL DATA
Geometric Volume
OEM 1.22cc / rev
HPFP45 1.77cc / rev > +45% capacity)

Fuel Compatibility: all known fuels, all Ethanol blends
Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI, tuning changes needed
Accessories: electric pigtail
Maximum Flow Rate: tbc
Housing material: stainless steel, hard coated Aluminum
Tuning Support:  Standalone, SCT, HPT
Dry Weight: 1112 g
