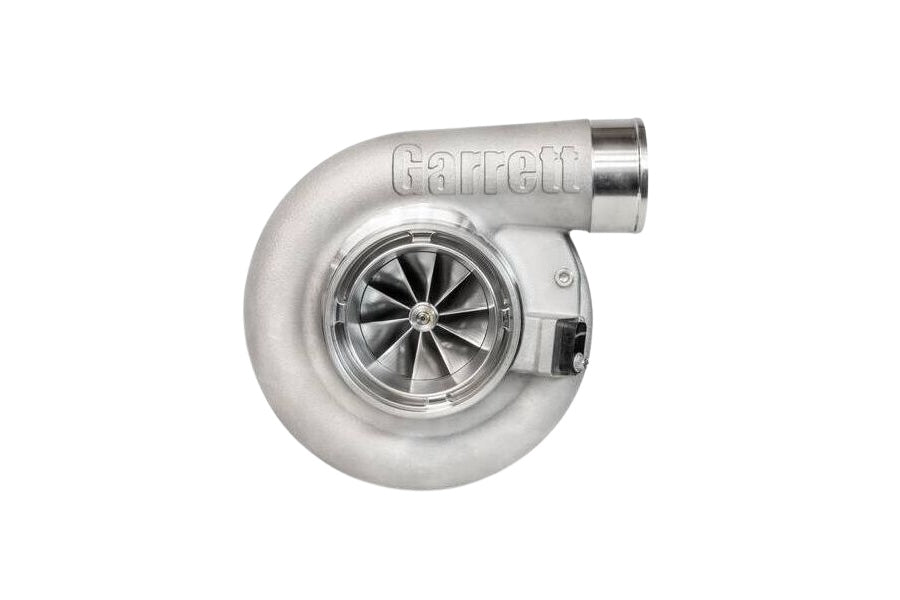

THE GARRETT G SERIES G40-900 TURBO BRINGS BIG POWER IN A MID-FRAME TURBOGarrett's all-new G40 mid-frame turbochargers are engineered for 2.0L - 6.0L engine displacements and are capable of supporting from 500 - 1150 horsepower. G Series G40 is offered in two sizes: G40-900 (62mm compressor inducer) and G40-1150 (71mm compressor inducer). Stainless steel turbine housings are available in T4 divided inlet and V-Band inlet configurations.
While the G40-1150 certainly has its place in the lineup, the G40-900 is an excellent choice if you need lower backpressure and up to 82lb/min in the mid-frame footprint. The 900 is a step up from the G35-900, giving you a lower backpressure option at that power output.
COMPRESSOR SPECIFICATIONS: Compressor Wheel Inducer 62mm; Exducer 71mm; Trim 51; Forged Billet Aluminum Alloy; 0.80 A/R; Max Flow Rate 43 lb/min; Max Shaft Speed 125000 KRPM; Inlet 4.0″ Hose Coupler; Outlet 2.5″ Hose Coupler. TURBINE SPECIFICATIONS: Turbine Wheel Inducer 77mm; Exducer 70mm; Trim 84; Mar-M material; Max Temp 1050C / 1922F.
GARRETT G SERIES FEATURES: Ultra High Flow G-Series Turbine Wheel; Advanced aerodynamics G Series Compressor Wheel; Fully machined speed sensor and pressure ports; Oil restrictor and water fittings included; One piece center housing and backplate; Ball Bearing CHRA Rotating Assembly; Standard & Reverse rotation options.
