HKS

HKS HIPERMAX S FL5 FULL CANCELLER KIT PILLOW

Pre-Order
Regular price $3,015.00
Pre-Order
Ships when available
Product INFO
  • Vendor HKS
  • SKU HKS80330-AH013CP

Shop more parts for your car

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

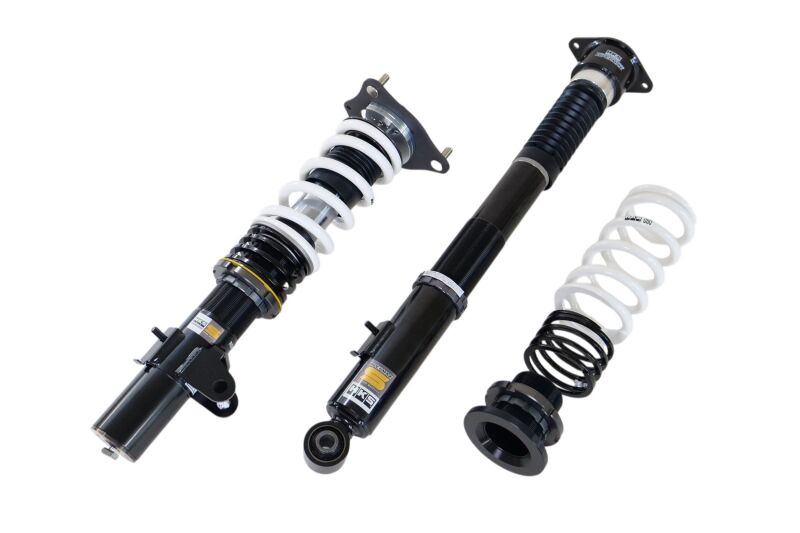

HIPERMAX S is HKS's street and sport coilover for the FL5 Civic Type R, aimed at a comfortable ride with a modest drop. It uses an inverted front strut with a pillow-ball mount, a separate rear spring and damper, and 30-step damping adjustment. The full kit includes the suspension error canceller needed once the factory adaptive dampers are removed.

Features

  • Inverted front coilover; separate-type rear
  • 30-step damping adjustment front and rear (rear adjustable via wire)
  • Front spherical bearing (pillow ball) upper mount; rear rubber upper mount
  • Height-adjustable lower bracket at the rear
  • Suspension error canceller included

Specifications

FrontRear
Spring rate98 N/mm (10.0 kgf/mm)78 N/mm (8.0 kgf/mm)
Helper spring19.8 N/mm7.6 N/mm
HKS recommended height644 mm (-31 mm vs stock)650 mm (-22 mm vs stock)
Adjustable range649-631 mm (-26 to -44 mm)672-631 mm (0 to -41 mm)

Fitment

  • Honda Civic Type R FL5 (K20C), 09/2022 and newer

Notes

  • Very low ride heights can cause body or arm contact. Oil leaks or damage from settings below HKS's recommendation are not covered by warranty.
  • Changing tire or wheel size may cause clearance problems.

Manufacturer part number: 80330-AH013CP
