Hybrid Racing Tucked Fuel System for 02-06 RSX/02-11 Civic Si

In stock
Regular price $337.97
Product INFO
  • Vendor Hybrid Racing
  • SKU HYB-BUN-01-82
Color
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

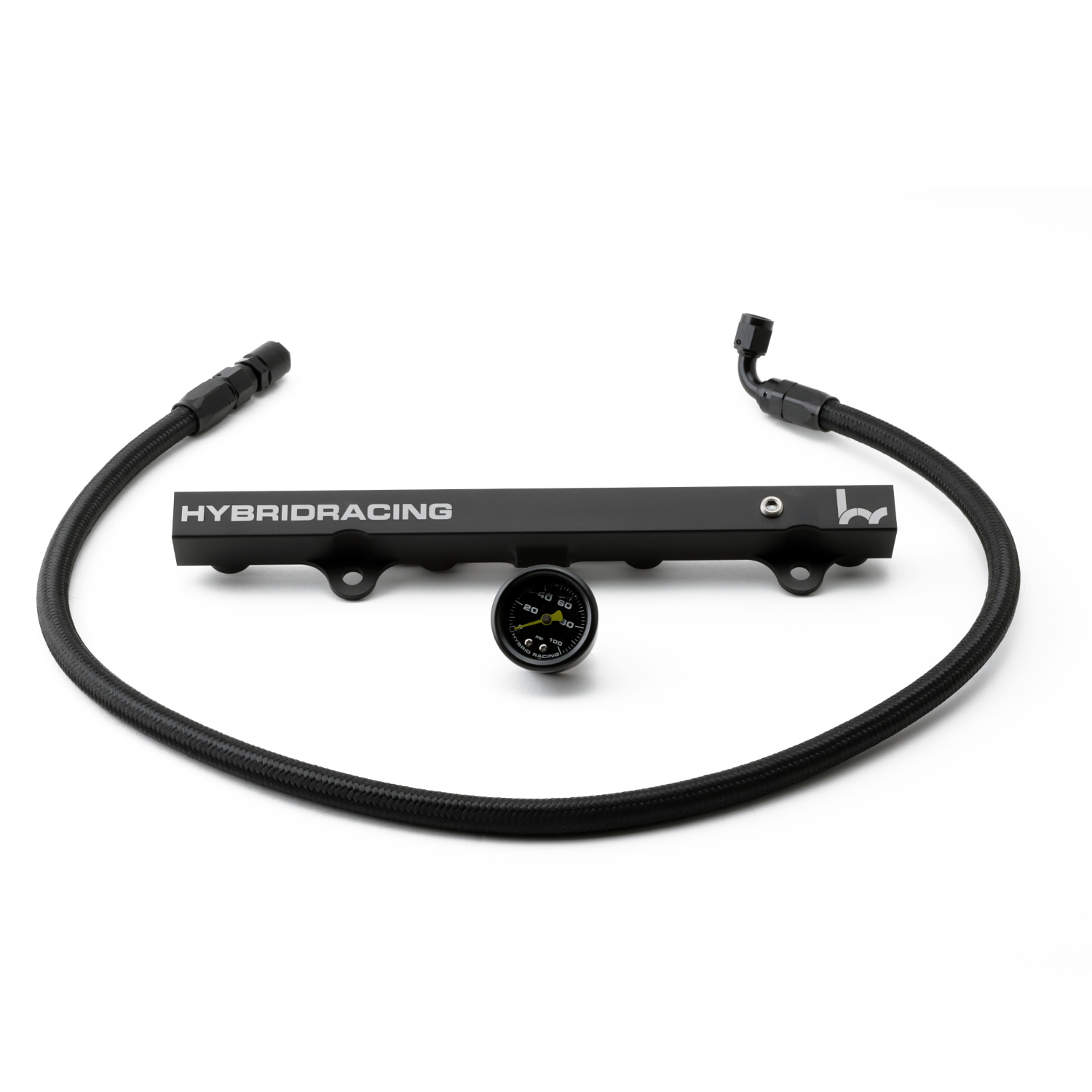

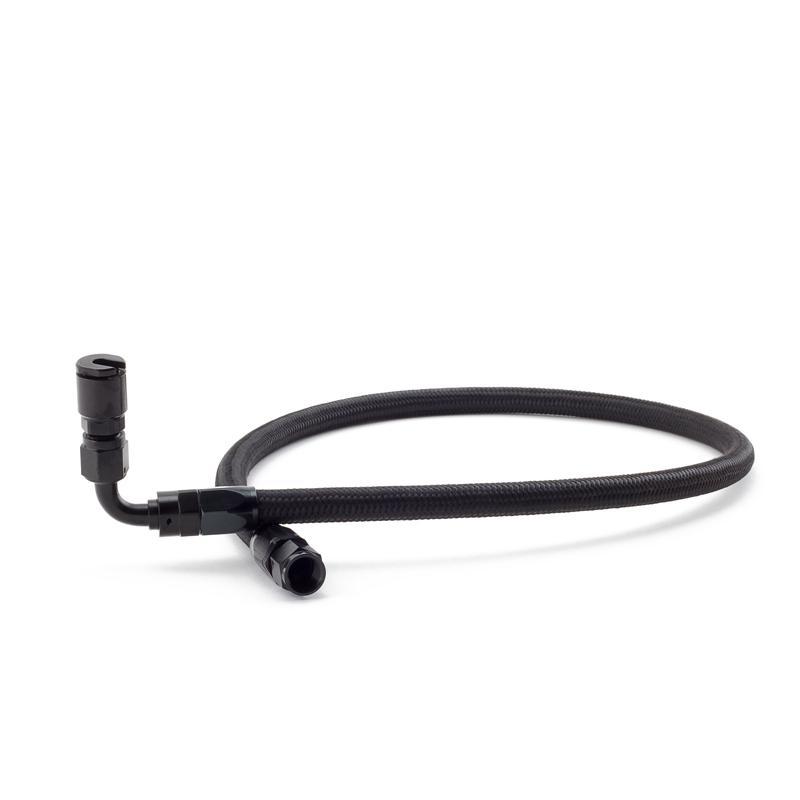

The Hybrid Racing Tucked Fuel System is designed for RSX, EP3 and 8th Gen Civic Si owners looking for a reliable, durable way to tuck and clean up the fuel feed line. The kit replaces the OEM rubber lines with -6AN braided line and swaps the plastic connectors for durable aluminum fittings that stand the test of time. The line connects to the OEM hard line at the firewall with a specially designed quick-disconnect fitting, then routes between the number 2 and 3 runners and neatly hugs the transmission for a cleaner, less cluttered engine bay.

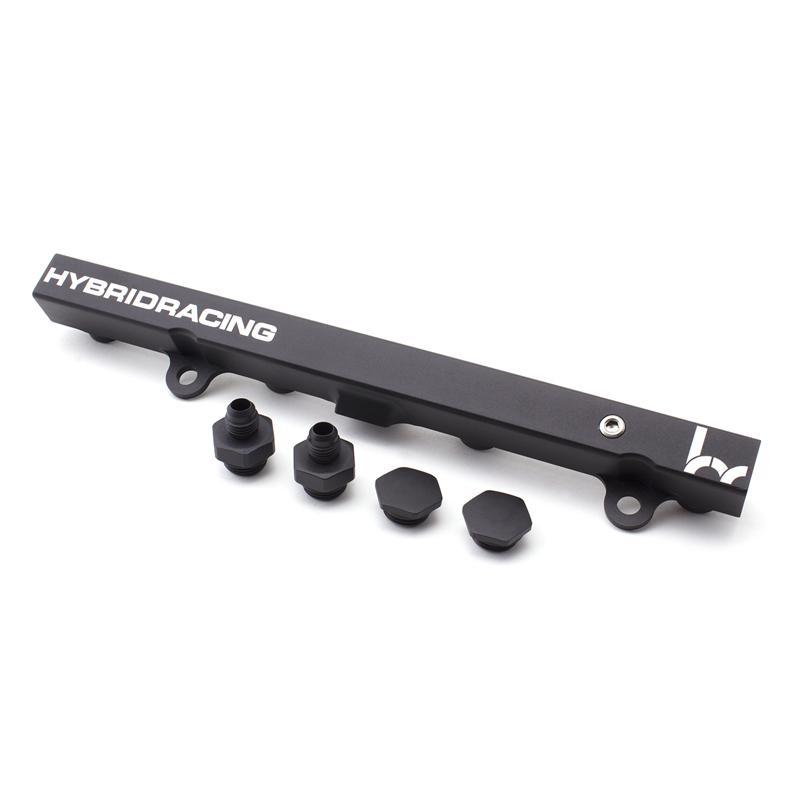

The kit is built around the Hybrid Racing fuel rail, machined from 6061 aluminum with T6 heat treatment and finished in a durable anodized coating with a laser-etched logo. Every rail includes a 1/8" NPT port so the supplied 0-100 PSI fuel pressure gauge mounts directly to the rail, putting fuel pressure somewhere you can actually see it. All ports accept -8 ORB fittings on the inlets and outlet, so you can run -6 or -8 AN fuel lines, and the side inlet and outlet can be plugged to run a centrally located -8 ORB fitting for a fully tucked setup. Note that the OEM fuel rail lacks the ports this line needs, so the kit is designed to work with the Hybrid Racing rail (or another aftermarket rail with a center port, which may require additional adapters).

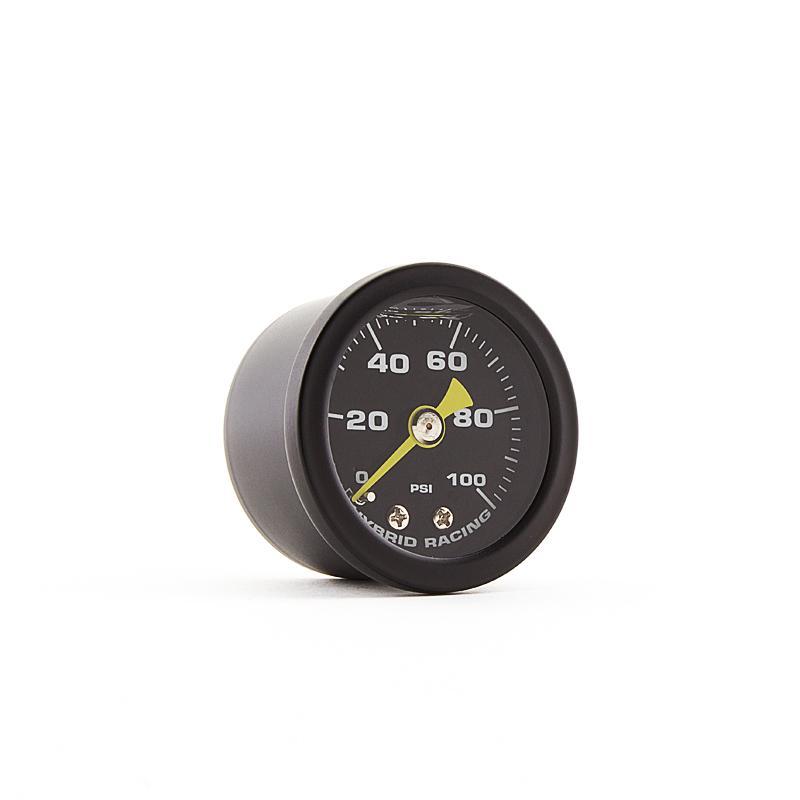

The rail has been shown to mount to PRB, RBC and RBB intake manifolds without modification. The Hybrid Racing fuel pressure gauge resists severe vibration, reads 0-100 PSI and is housed in an all-steel matte black case with a Hybrid Racing Green needle — with two subtle marks to help you set K-series fuel pressure around 50-52 PSI.

Features

  • -6AN braided line replaces the OEM rubber fuel feed line
  • Aluminum connectors replace the OEM plastic fittings
  • Quick-disconnect fitting joins the OEM hard line at the firewall
  • Black anodized 6061-T6 aluminum fuel rail with laser-etched logo
  • Black all-steel 0-100 PSI fuel pressure gauge
  • -8 ORB inlets and outlet accept -6 or -8 AN lines
  • Mounts to PRB, RBC and RBB intake manifolds without modification
  • E85 compatible

Fitment

  • 2002-2006 Acura RSX w/ aftermarket rail
  • 2001-2005 Honda Civic Si w/ aftermarket rail
  • 2006-2011 Honda Civic Si w/ aftermarket rail

What's in the Box

  • (1) K-Series Fuel Rail
  • (2) -8 ORB / -6AN adapter fittings
  • (2) -8 ORB plugs
  • (1) 1/8" NPT plug
  • (1) Fuel Pressure Gauge
  • (1) Tucked fuel line kit (contains adapter fittings)
