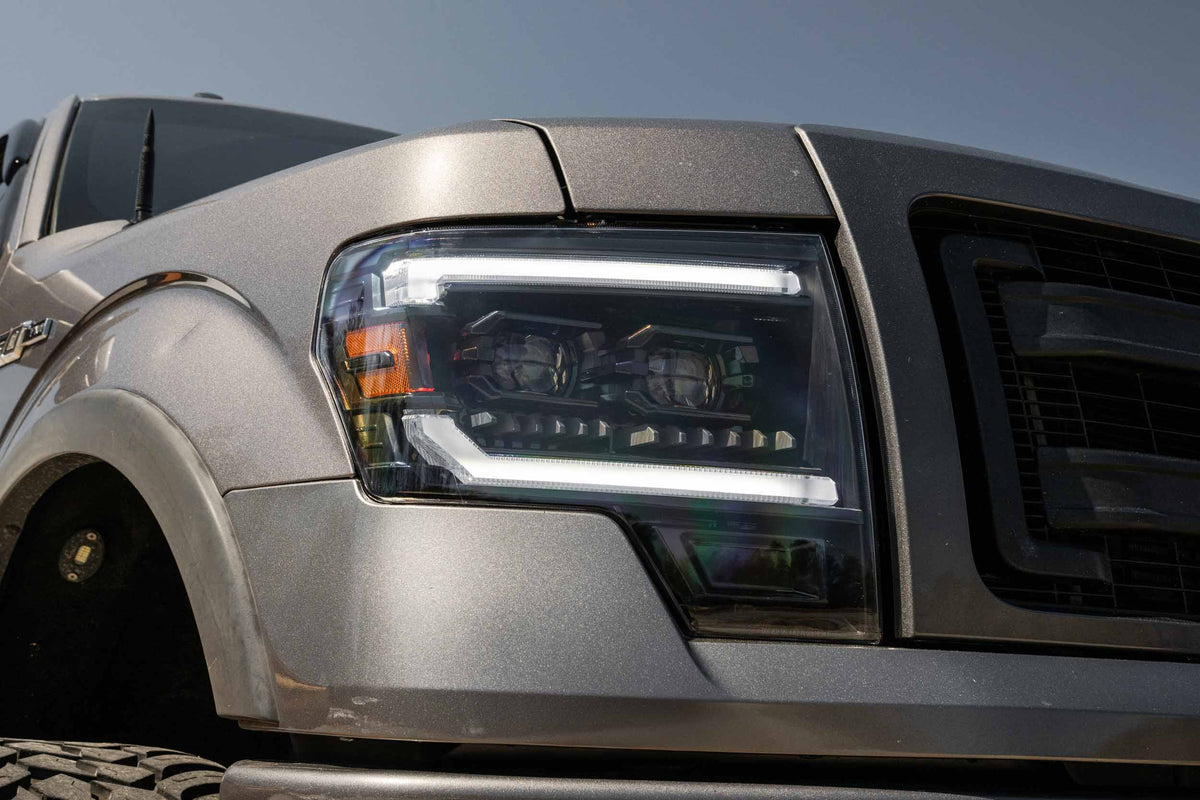

XB Evo Hybrid Headlights: Ford F-150 (09-14 / Set)

Evolutionary: A simple design refresh would have been easy, but that’s not what this is all about. The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo Hybrid headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety... which is a tough mark even for most modern luxury automakers. Here, the F-150 Evo Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. On Road: The Morimoto XB Evo Hybrid Headlights meet all standards with FVMSS108 regulations for on-road use in the USA. Their projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any F-150, even with a lift. The system was designed in California by Morimoto’s lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does. Off Road: Yes, you read that correctly. Out of the box, XB Evo and XB Evo Hybrid are only producing a fraction of their potential intensity for compliance reasons. Want more light for your off-road adventures? The optional Supercharged Drivers boost both low and high beam intensity by 30-50% -- all without sacrificing reliability or warranty. It also adds the welcome sequence to the DRL and projectors that doesn't normally appear on the Hybrid version of the headlight. While the Supercharged drivers easily enable the XB Evo to outshine every other headlight for the F-150 on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity, and therefore should not be used on public roads. DRL Optics: The turn signals and daytime running lights illuminate glass-like 3D optics with special surface textures, which enables maximum intensity from all viewing angles. Easily out-shining low-tech DRL optics found in most every other aftermarket headlight. DRL and Turn Signals: The daytime running light illuminates in a crisp clear white color that perfectly matches the LED projectors. Thanks to their impressive optics, the amber turn signals are also incredibly bright, and operate in a solid flashing pattern with an elegant fade-off effect. Sequential turn signals and Amber DRL settings are not available for the Hybrid version of the headlights. OE Fit & Installation: The XB Evo Hybrid headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging, and then plug into the factory wire harness and then work without errors on the dash, nor flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches. Well-Built: This product is completely designed, engineered & tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their 3,000-hour standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your F-150! We’re proud to stand behind the product with an industry-leading five-year warranty.

Tech Specs

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)
• Output (Supercharged Drivers): +30-50% (Non-Compliant)
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

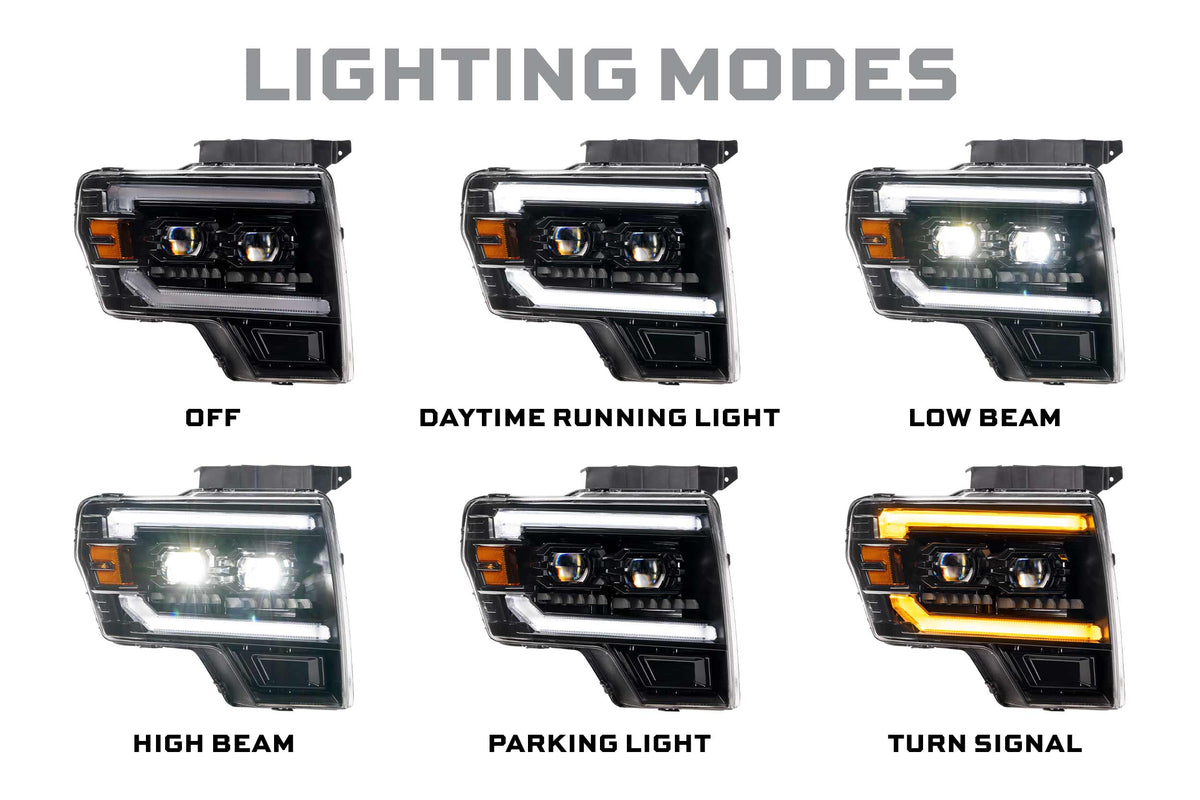

• Functions: Low Beam, High Beam, Parking Light, Turn Signal, and DRL
• Turn Signal Mode: Instant-On / Fade-Off
• DRL Color: White
• DRL/Signal Optics: Glass-like 3D Optics
• Internal Finish: Piano Black w/ contrasting textures
• Side marker: Amber side reflex reflector (DOT compliant)

What's Included

• Headlights: One Pair 09-14 Ford F-150 XB Evo Hybrid (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

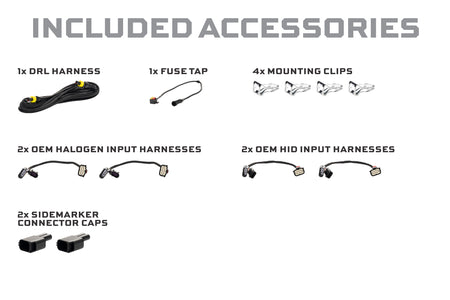

• Accessories: 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x Side Marker Connector Caps, Fuse Tap Hardware, 4x Mounting Clips

Compatibility

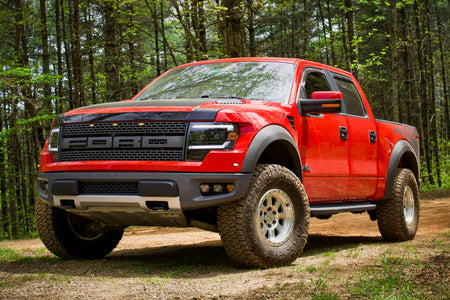

• Ford F-150: 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models)
• Ford SVT Raptor: 2010-2014
• Trim Levels: XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Limited
• Supercharged Drivers: LF2-DRVSC12 (Optional, sold separately)
• Replaces Ford Part #: FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
• Note: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
