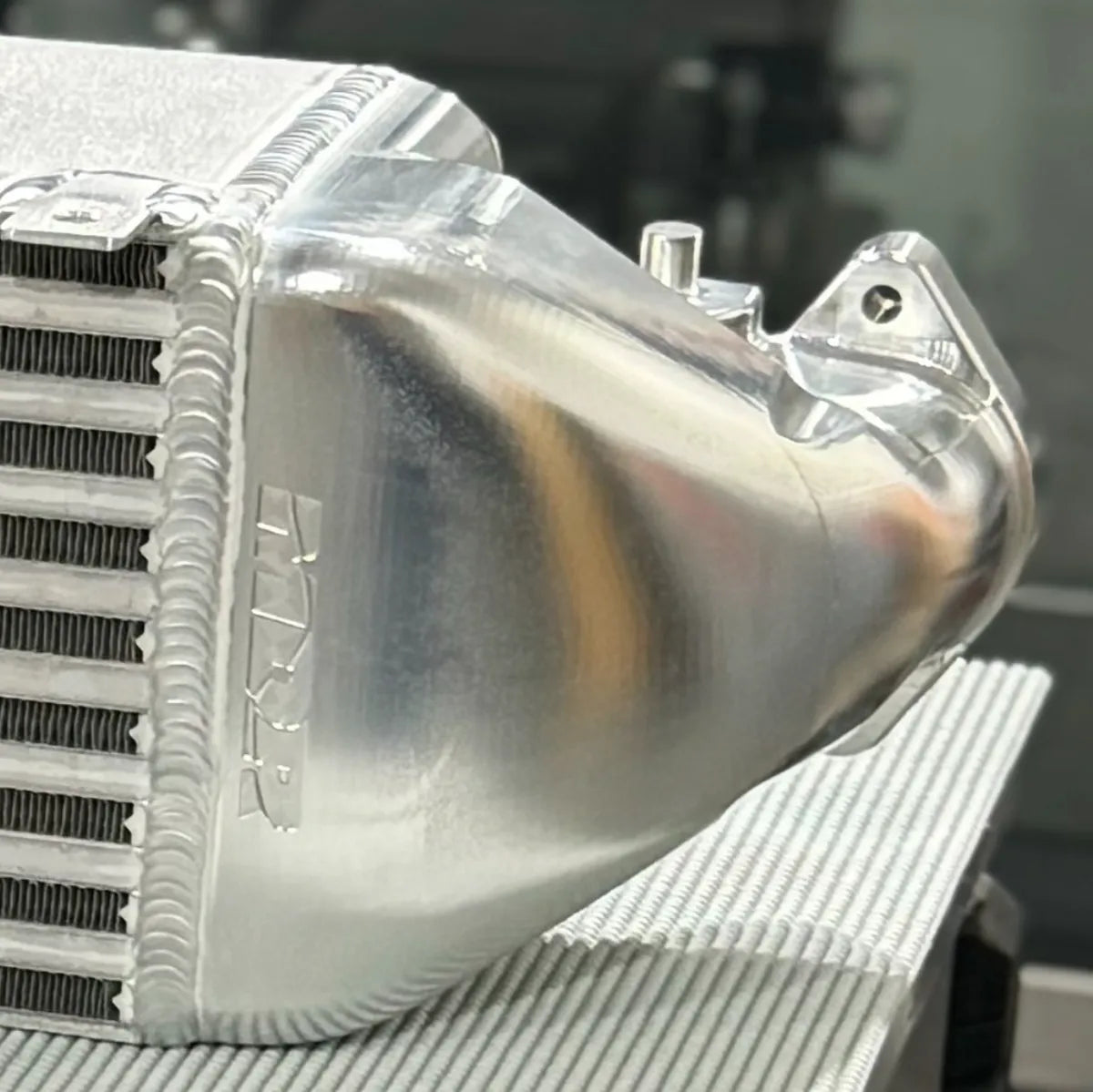

Precision TIG welds and high-density fin design on MDR FL5 Civic Type R intercooler

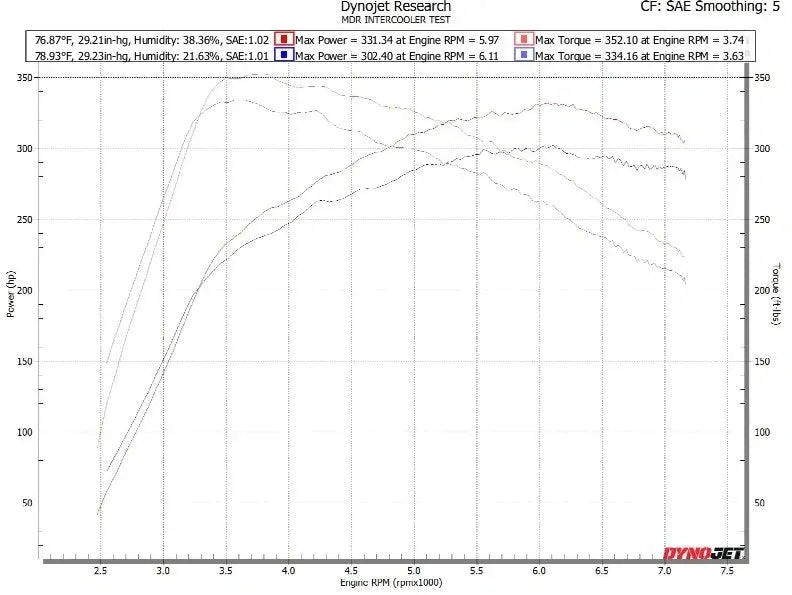

Dyno chart showing horsepower and torque gains from MDR FL5 intercooler upgrade

Dyno data comparing intake air temperature drop with MDR intercooler on FL5

Pressure drop and flow efficiency graph for MDR FL5 Civic Type R intercooler

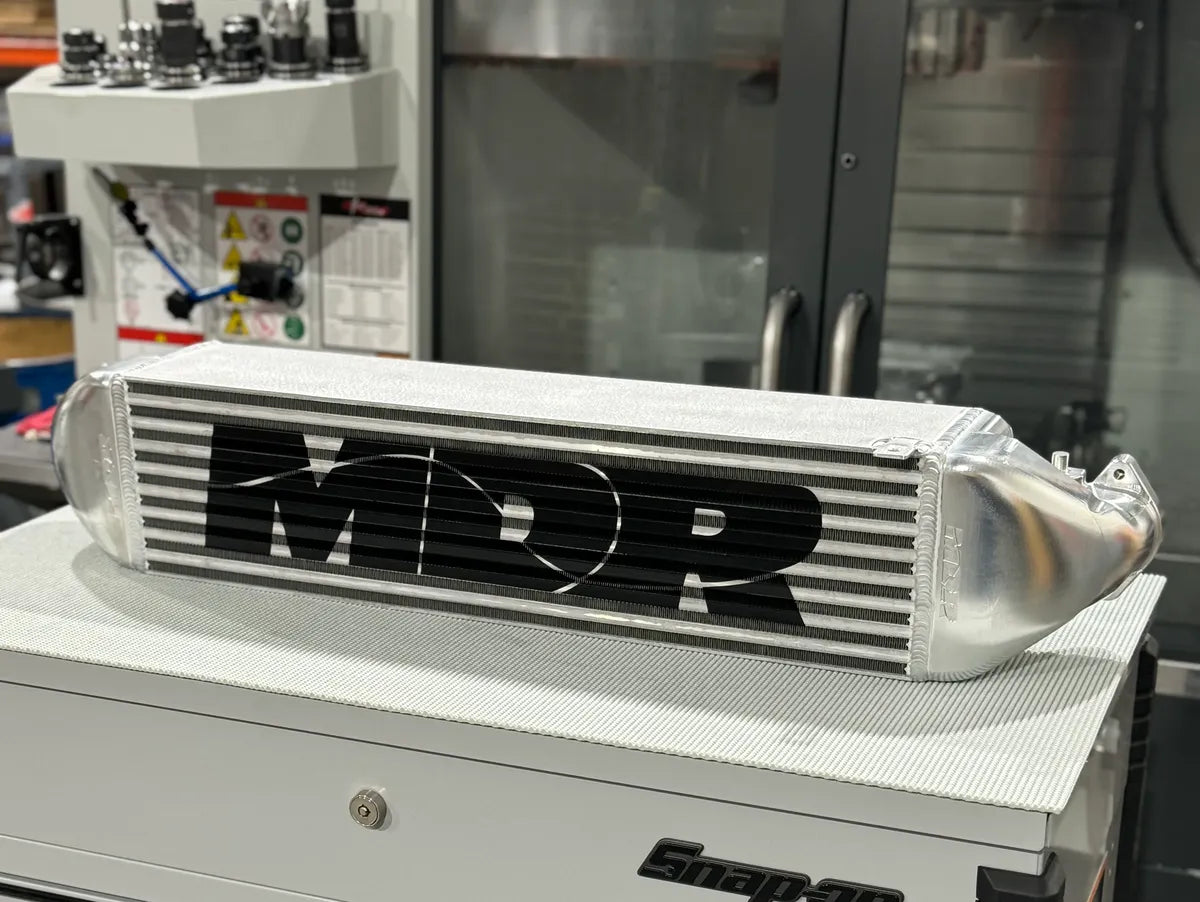

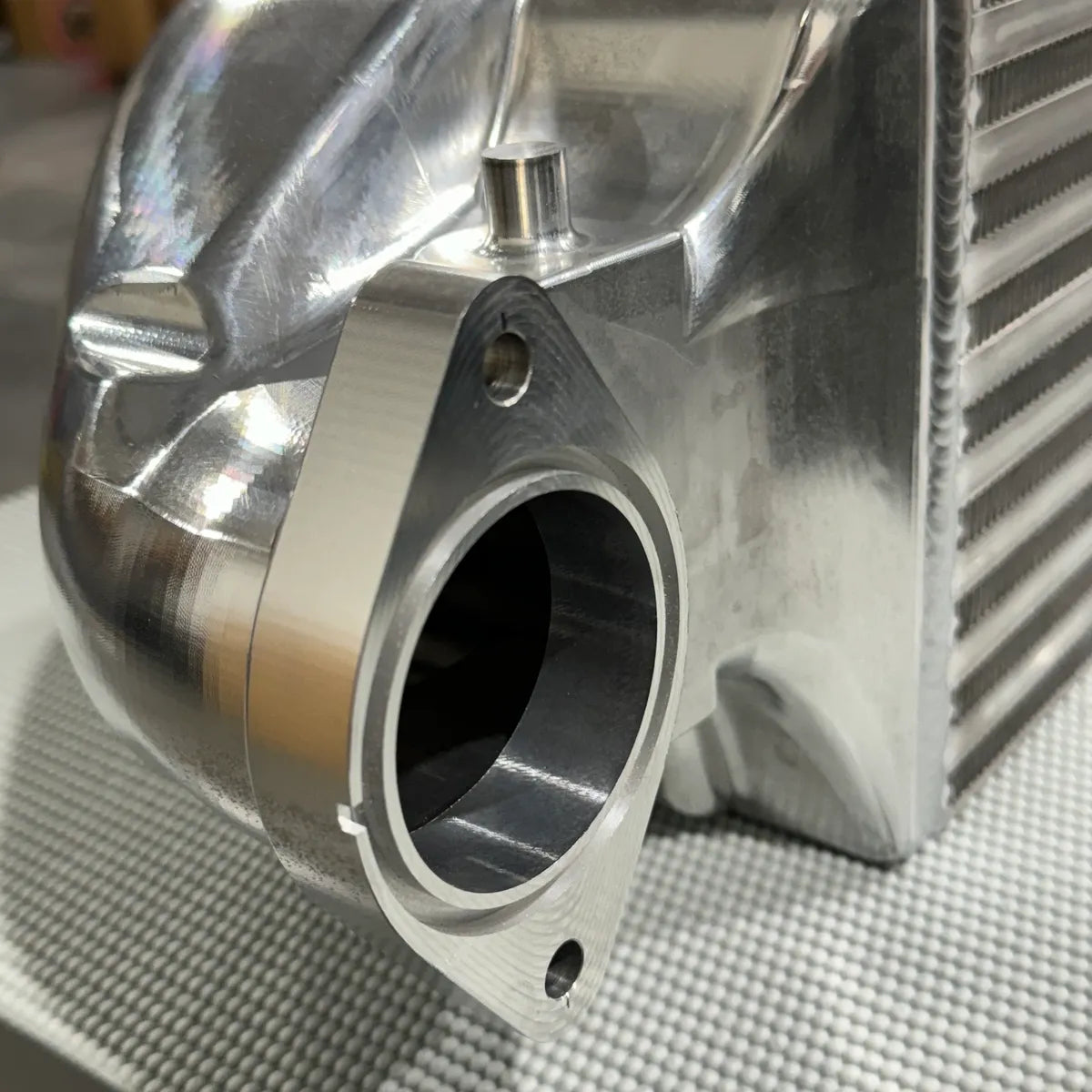

Angled view of MDR FL5 intercooler core with billet end tanks and weld quality

honda-ctr-fl5-acura-type-s-de5-billet-upgrade-intercooler

SKU: 925-196

Availability: Out Of Stock

$1,199.00; $1,199.00
Unit price: per

Please hurry! Only 0 left in stock

ASK AN EXPERT

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

10 customers are viewing this product

honda-ctr-fl5-acura-type-s-de5-billet-upgrade-intercooler

$1,199.00

Quantity:

honda-ctr-fl5-acura-type-s-de5-billet-upgrade-intercooler

$1,199.00

Description
Shipping & Return

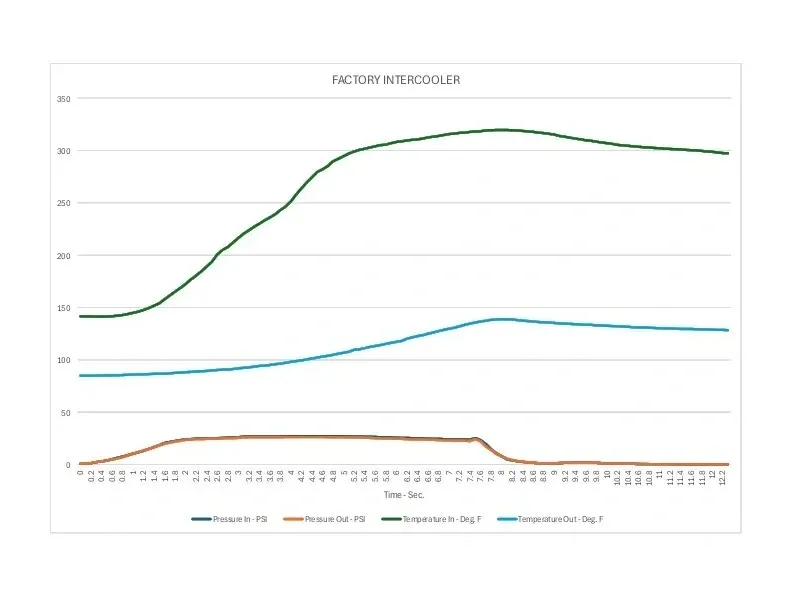

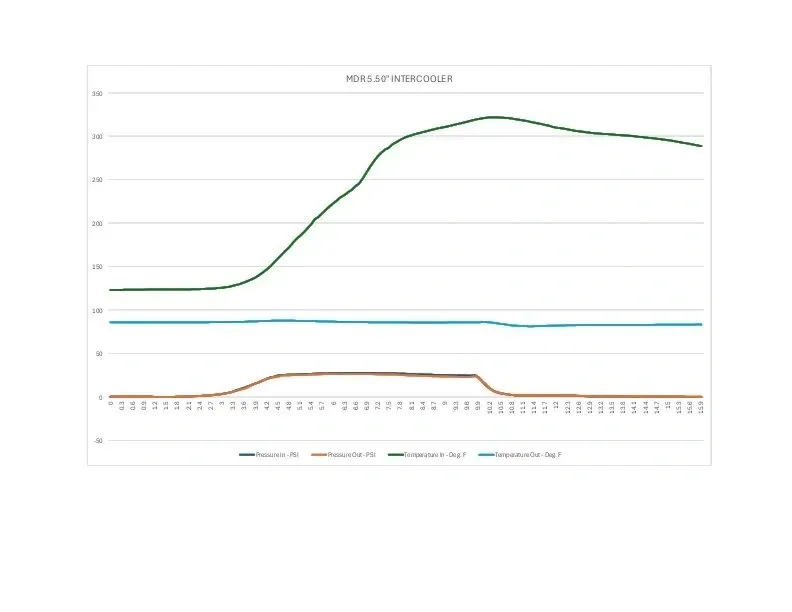

MDR is pleased to announce our very own Billet Intercooler Upgrade for the 2023- Honda Civic Type R FL5 & Integra Type S DE5. Our intercooler is made in the USA, with machined Billet 6061-T6 aluminum end tanks and a 5.50” core to replace the factory’s plastic end tanks and 2.5” core. Throughout our testing period, we calculated heat transfers for different types of fins, with different fin heights, and fin densities to determine the best combination internal and external fin to achieve the highest heat transfer effectiveness, with the lowest pressure drop. We then designed our cores with the most effective fin combinations, which in this case we determined was the bar and plate aluminum core design. The bar and plate core allows the utilization of the entire envelope space, without larger than core sized end plates as compared to the factory tube and fin. Bar and plate cores are designed to withstand high pressure and high vibration applications. Braze sheets seal the entire row as compared to the 0.125” wide sealing surface of the end plate to the extruded tube on tube and fin cores. PN: 925-196MSRP: $1,199.00FEATURESMDR INTERCOOLER PERFORMANCE DATAFACTORY INTERCOOLER PERFORMANCE DATANTERCOOLER COMPARISON DYNO DATAAfter months of testing, street driving, several dyno sessions at different phases, and datalogging, our prototype has exceeded our expectations, both in cooling and performance gains. Dynos were conducted pre-installation with the factory intercooler and compared with the prototype unit. Results and side-by-side comparisons are noted in the graphs to the right.Factory Intercooler 302.40 HP / 334.16 ft-lbs Torque @ 28.03 psi MDR Intercooler 331.34 HP / 352.10 ft-lbs Torque @ 27.54 psi Core size – 2.50” thick x 6.25” stack up height x 25.125” wide Surface area – 157.03 in2 Volume – 392.58 in3 Average pressure drop – 0.71 psi Average temperature drop (Entire 3rd Run) – 138.91 deg. F Max Inlet Temp. - 318.6 deg. FOutlet Temp. - 136.6 deg. F (182 deg. F of Drop)Pressure Drop - 1.01 psiCore size – 5.50” thick x 7.02” stack up height x 28.0” wide Surface area – 196.56 in2 / 25.17% increase Volume – 1,081.08 in3 / 175.38% increase Average pressure drop – 0.85 psi Average temperature drop (Entire 3rd Run) – 151.15 deg. F Max Inlet Temp. - 318.9 deg. FOutlet Temp. - 85.8 deg. F (233.1 deg. F of Drop)Pressure Drop - 1.12 psiBillet 6061-T6 aluminum machined end tanks No ECU calibrations requiredUtilizes all factory intercooler mounting locations / bracketsCore size maximizes the opening on the front bumperNotable increase in air density100% pressure testedTIG weldedAssembled in Simi Valley, CA rewrite this for meta description friendly
