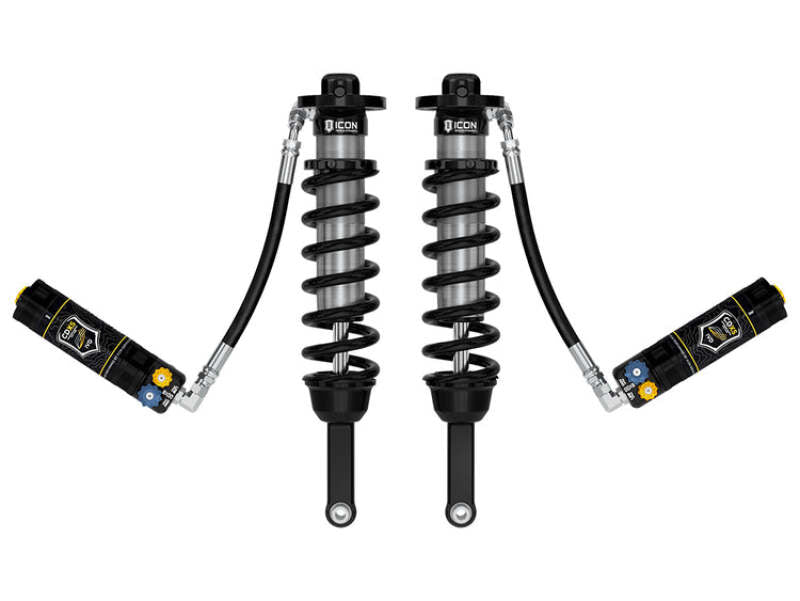

ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi CDXS Coilover Kit - Pair

Name: ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi CDXS Coilover Kit - Pair
Brand: ICON
SKU: T14.1057433
Price: 2629.95 USD
Availability: InStock

Pre-Order

No reviews

$2,629.95

Product INFO

Vendor ICON
SKU T14.1057433
Barcode 58730X-700

Pre-Order

Ships when available

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 58730X-700

Market Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Description - Extended

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Features and Benefits

ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
Vehicle specific tuned for superior shock damping and control
Hose Length Optimized for Increased Fluid Transfer
External Reservoirs Ensures Maximum Cooling
Kit Includes Sway bar relocation brackets
5/8" PTFE-lined spherical bearings
Billet aluminum upper mount
CAD-plated threaded body
Completely re-buildable

Associated Comments

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #50: 700lb/in spring rate only recommended for trucks with additional weight added to front end
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #112: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #108: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
OEM Wheels & Tires Fitment: Yes

Product Description - Short

ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi CDXS Coilover Kit - Pair
COILOVER KIT

Product Description - Long

05-23 TACOMA 2.5 VS RR CDXS COILOVER KIT 700LB

AAIA Part Type Description

Coilover Set

Product Description - Invoice

58730X
