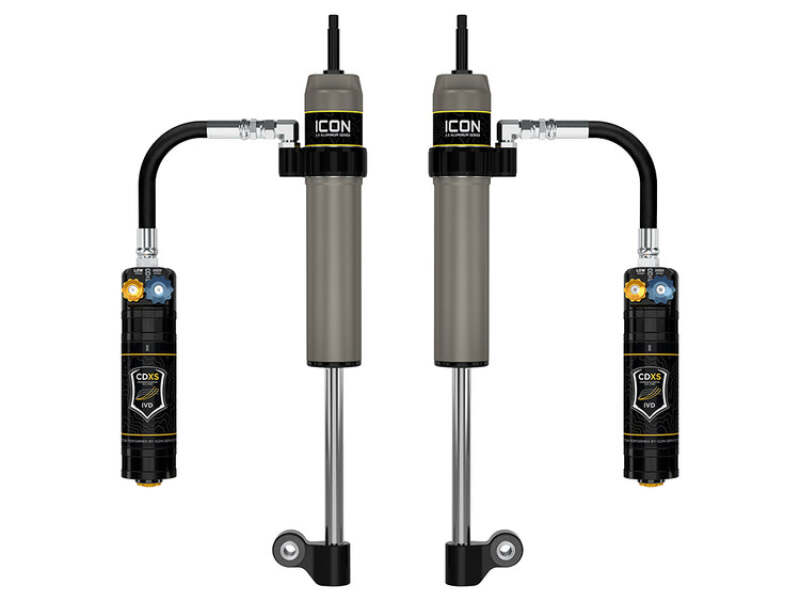

ICON 05-23 Toyota Tacoma Rear VS 2.5 Alum RXT Shock Absorbers Remote Resi w/ CDXS Pair

Pre-Order
Regular price $1,789.95
Product INFO
  • Vendor ICON
  • SKU T14.1057431
  • Barcode 57826XP
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 57826XP


Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Product Description - Extended

ICON 2.5 Aluminum Series shocks are designed for outstanding performance off-road and a smooth ride on the street. With vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.

Features and Benefits

  • ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade shock oil for consistent suspension damping along a wide temperature range
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shafts
  • Nitrogen charged monotube design with remote reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • Double-sealed Schrader caps reduce risk of damage
  • 100% Rebuildable and revalveable

Associated Comments

  • APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation
  • TECH NOTE: Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
  • APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

Product Description - Short

  • ICON 05-23 Toyota Tacoma Rear VS 2.5 Alum RXT Shock Absorbers Remote Resi w/ CDXS Pair
  • SHOCK ABSORBER PAIR

Product Description - Long

05-23 TACOMA RXT REAR 2.5 RR CDXS PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

57826XP
