10th Gen Civic Performance Oil Cooler Kit by MAPerformance

Pre-Order
Regular price $649.99
Product INFO
  • Vendor MAPerformance
  • SKU MAP.MAP HDAX-OCK
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

This item typically ships in 10-14 days.

Not many things kill a motor as fast as high oil temps, and MAPerformance are not alone in finding that the stock Civic X 1.5T system is not up to the task. From lapping days to daily driving and everything in between, the MAPerformance Civic X 1.5T oil cooler kit will do everything you need and more.

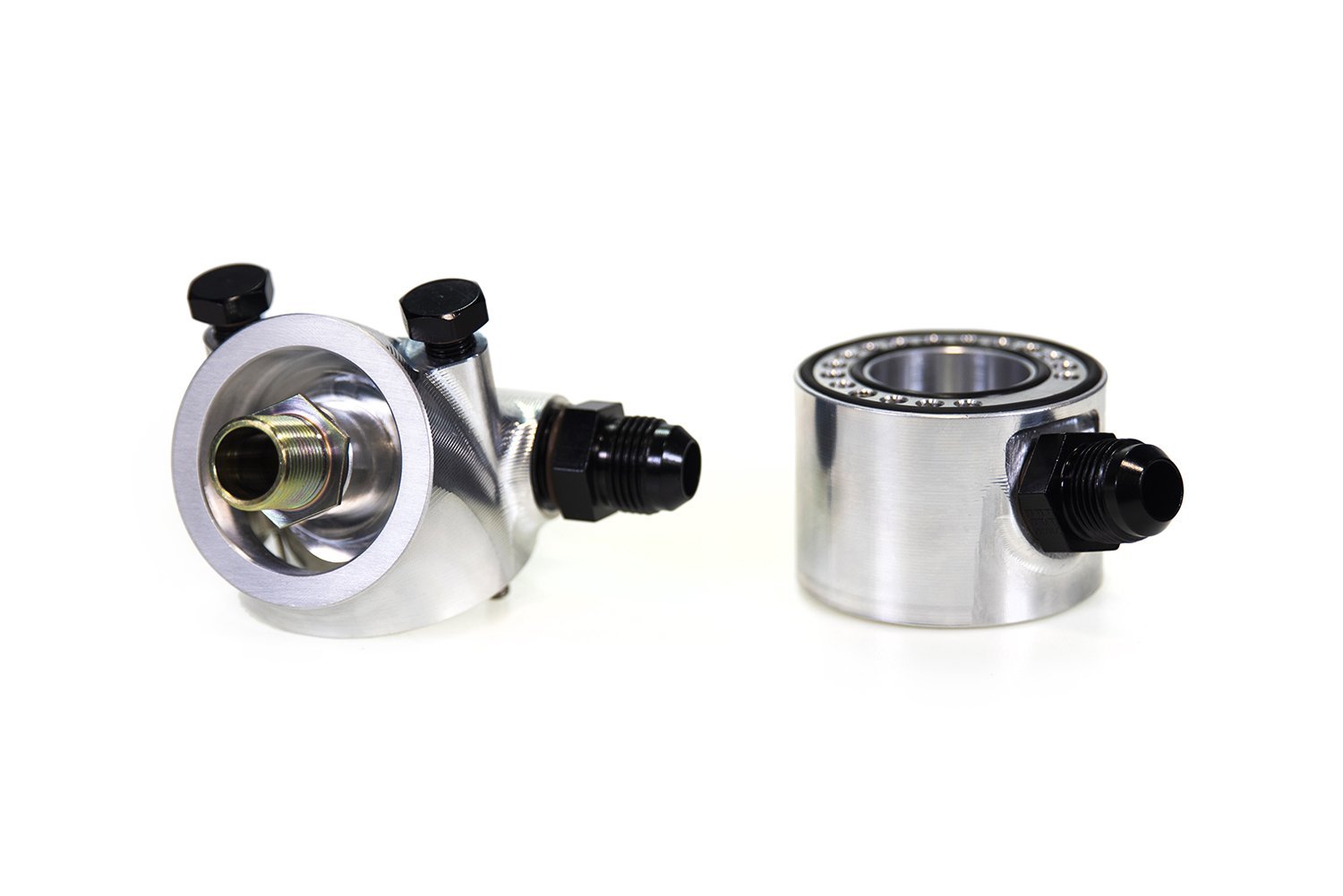

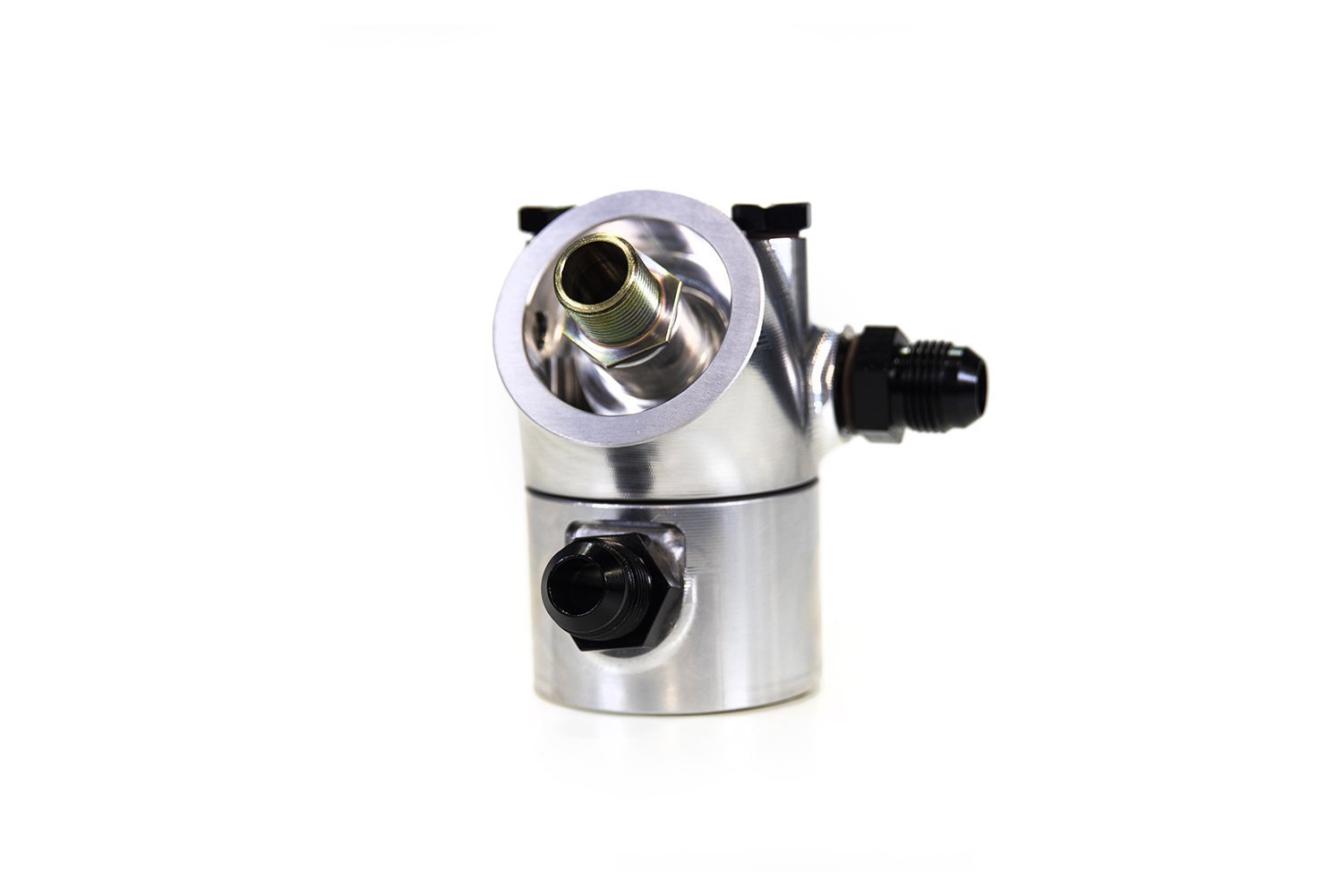

MAP were not happy with any of the filter sandwich plates on the market — they all spaced the oil filter so far down that it became the lowest point on the car, no longer clearing the factory undertray. So MAP designed a two-piece filter adapter that fits properly and flows with near-zero restriction or pressure drop. Because the platform has no factory oil pressure monitoring, a 1/8" NPT port was added to the side of the housing for a temperature or pressure sensor.

The cooler mounts on a 304 stainless, hand-TIG-welded bracket produced at MAP's USA facility — a 100% bolt-on solution with no cutting or trimming required. For the core itself MAP selected one of the largest SETRAB units that would fit within a reasonable budget. The L15B7 has a very small oil capacity, so adding nearly a full quart to the system helps both temperature and oil pressure stability.

Features

  • MAP custom billet aluminum oil filter adapter — retains ground clearance and clears the factory undertray
  • 1/8" NPT port for a pressure or temperature gauge
  • Lightweight braided Squirrelly Performance AN lines and fittings

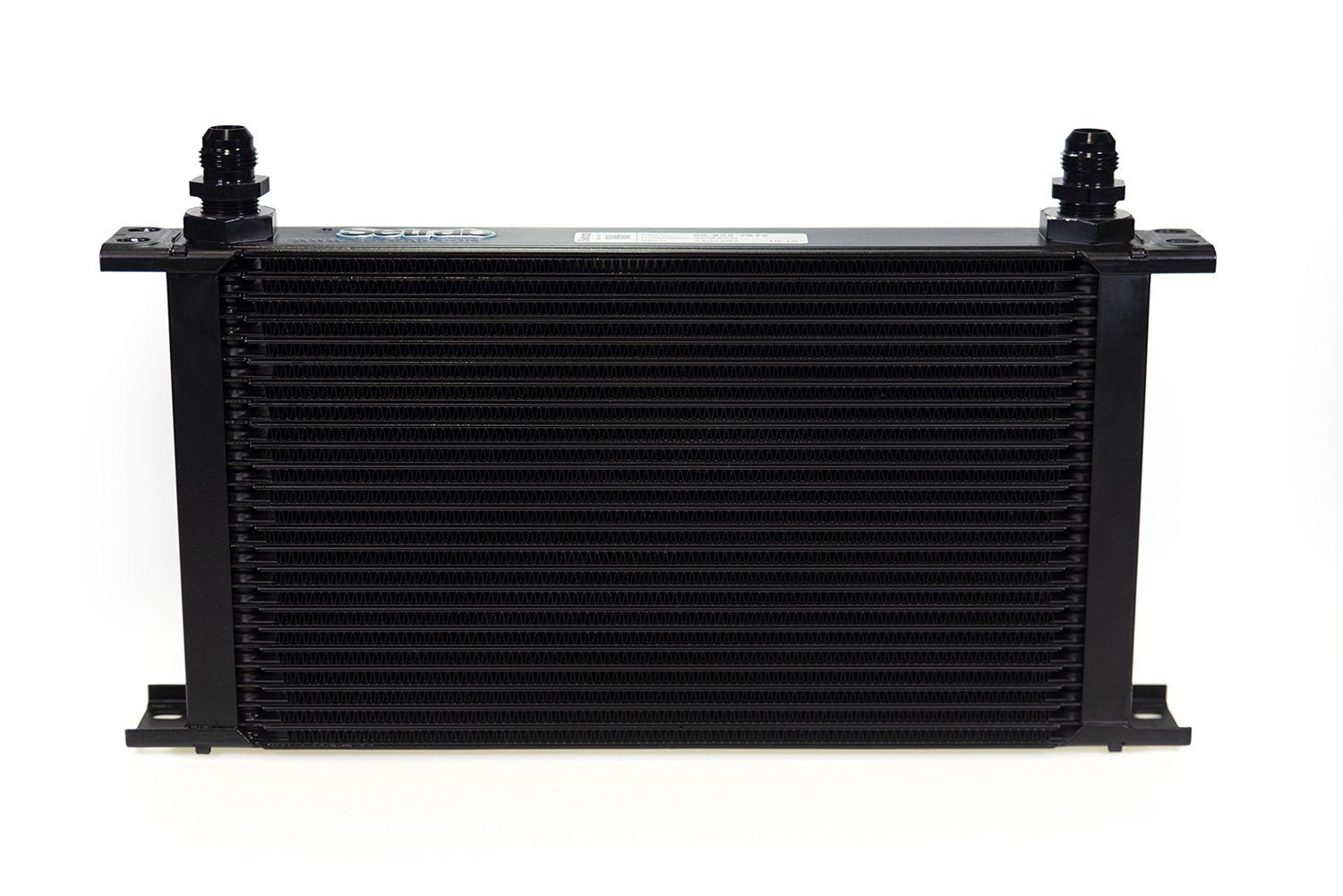

  • Large-capacity SETRAB core — adds nearly 1 qt of oil capacity with the lines
  • All stainless hardware to prevent corrosion
  • USA-made stainless TIG-welded mounting bracket

Benefits

  • 100% direct fit
  • Made in the USA
  • Increased oil capacity
  • Increased oil cooling
  • Maintains ground clearance for the oil cooler

Applications

  • 2016-2021 Honda Civic 1.5T
  • 2017-2021 Honda Civic Si 1.5T

What's in the Box

  • (1) MAP 1.5T Civic oil cooler mounting bracket (upper and lower)

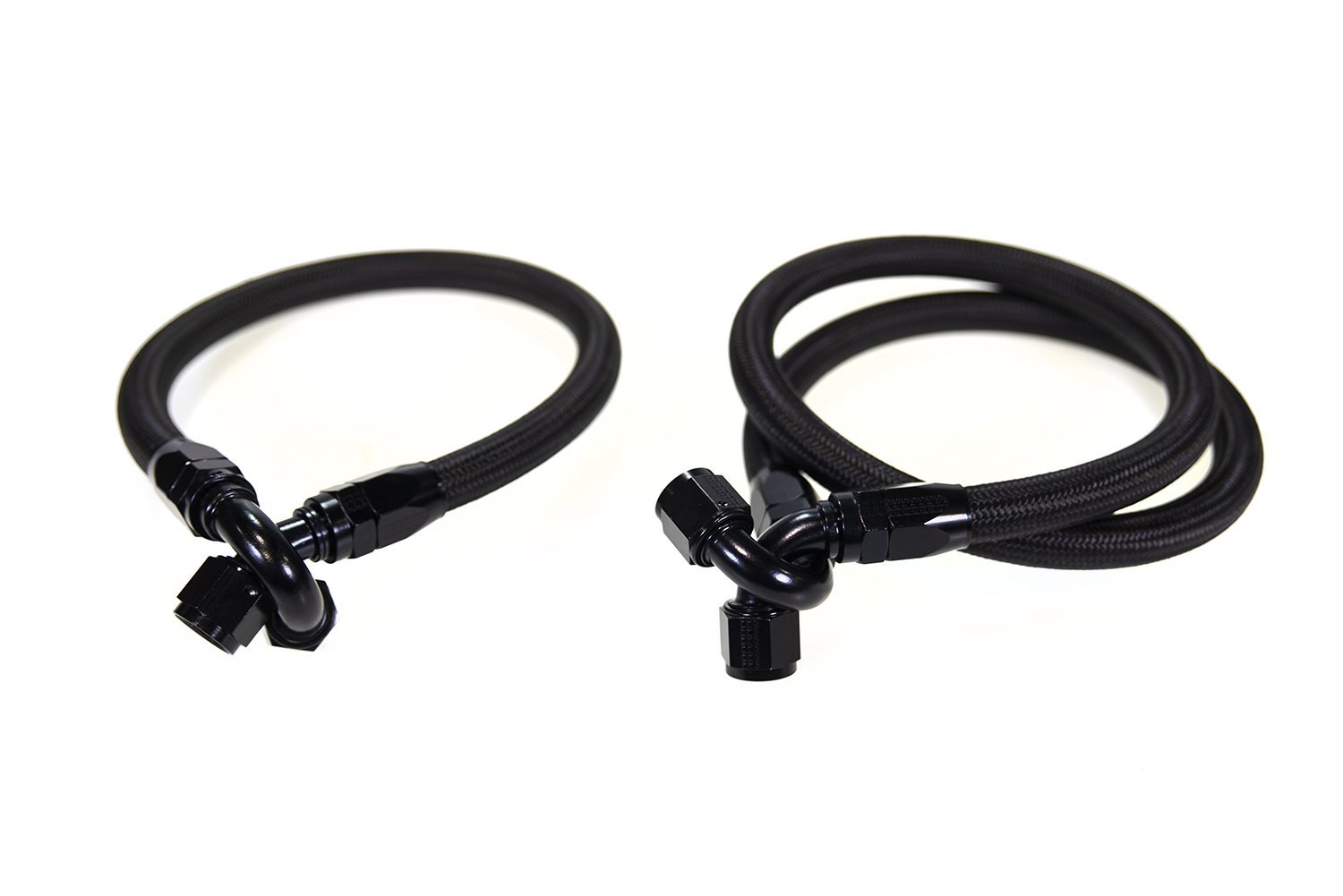

  • (1) MAP 1.5T Civic oil cooler line kit (2 lines)
  • (1) MAP 1.5T Civic oil cooler filter sandwich plate (2 pieces)
  • (2) -10AN to -10ORB fittings
  • (2) -4AN hex head plugs
  • (1) 1/8 NPT allen plug
  • (1) 3/4 mil-spec washer
  • (1) MAP custom 24mm slim nut
  • (1) MAP oil filter stud
  • (1) Setrab oil cooler
  • (2) Setrab oil cooler to -10AN fittings
  • (2) M6x1.0x55 socket head bolts
  • (8) M6x1.0x16 hex head bolts
  • (1) 222 Buna-N O-ring
  • (2) 229 Buna-N O-rings
  • (2) 7/8" rubber loop clamps
  • (4) M6 threaded plates
  • (4) M6 rubber isolators

Torque specs: 25 ft-lbs on the 24mm mounting nut, 60 in-lbs on the M6 housing mounting allen bolts. Covered by the MAP Lifetime Warranty.
