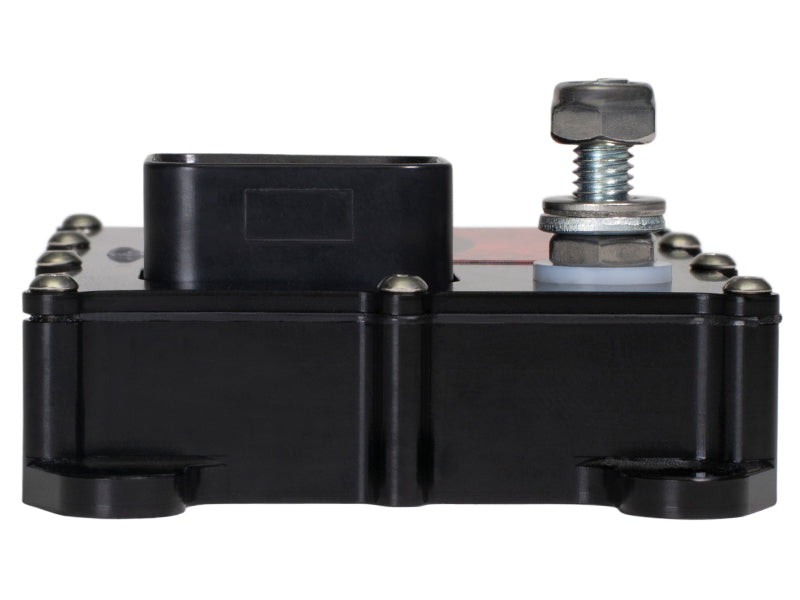

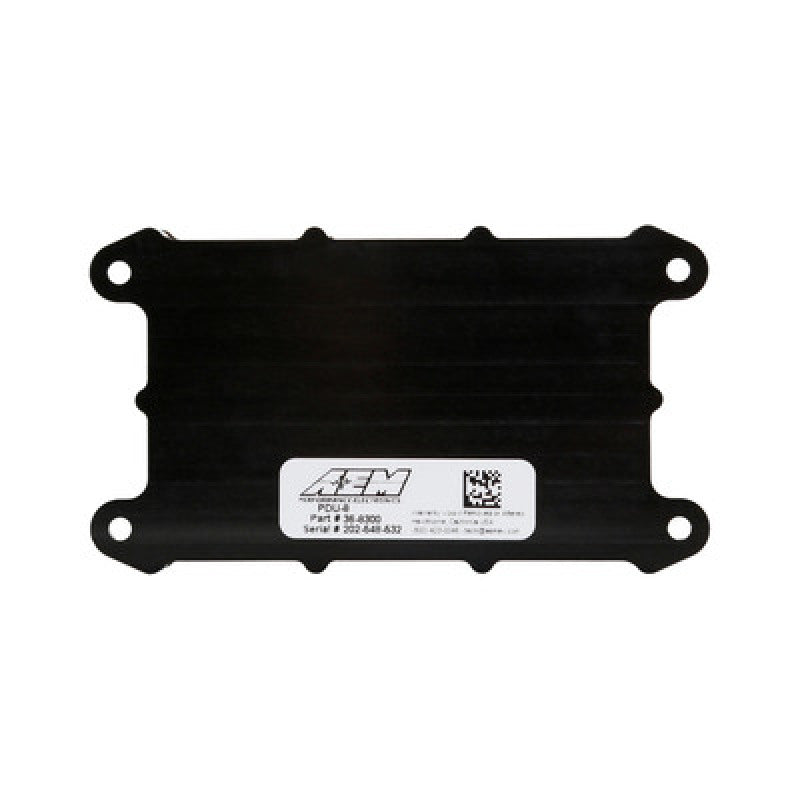

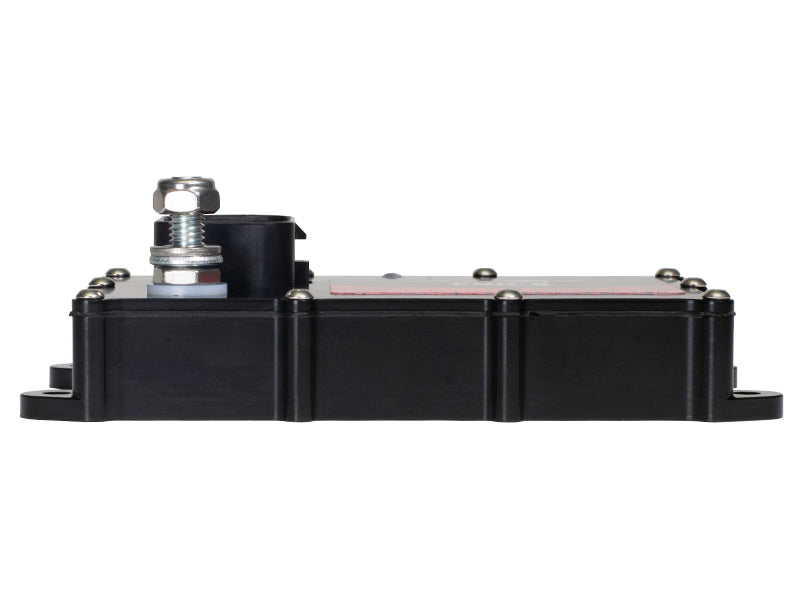

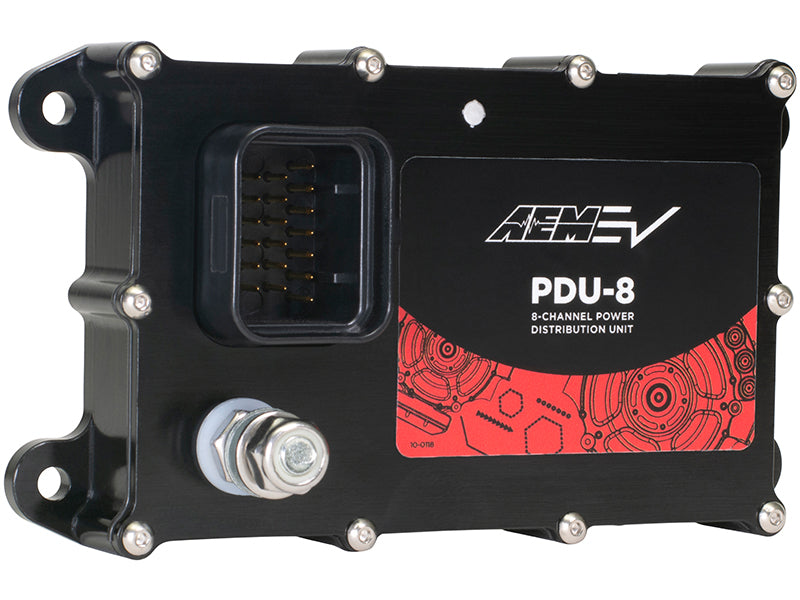

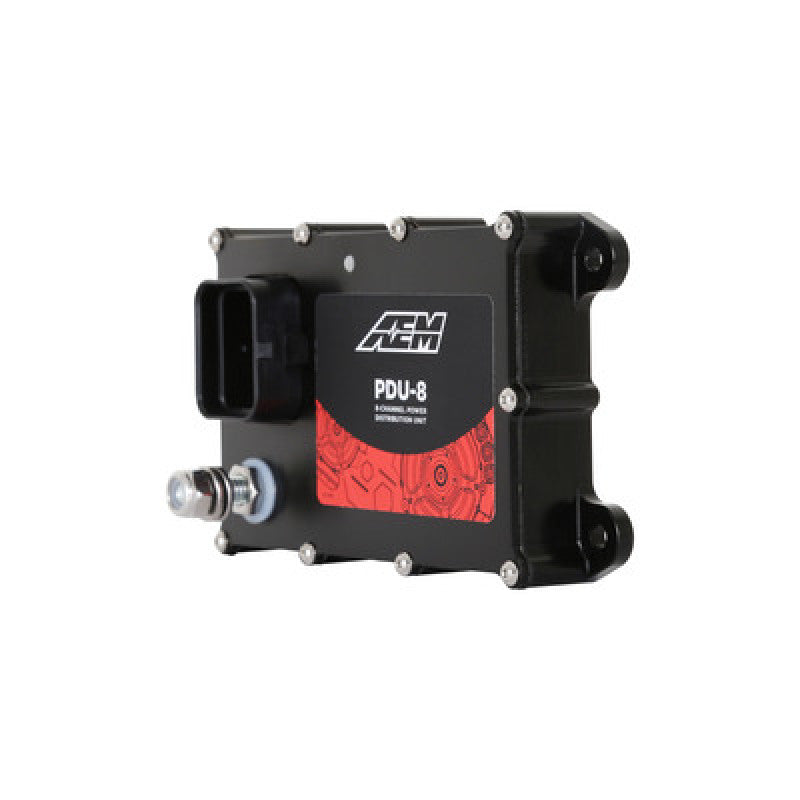

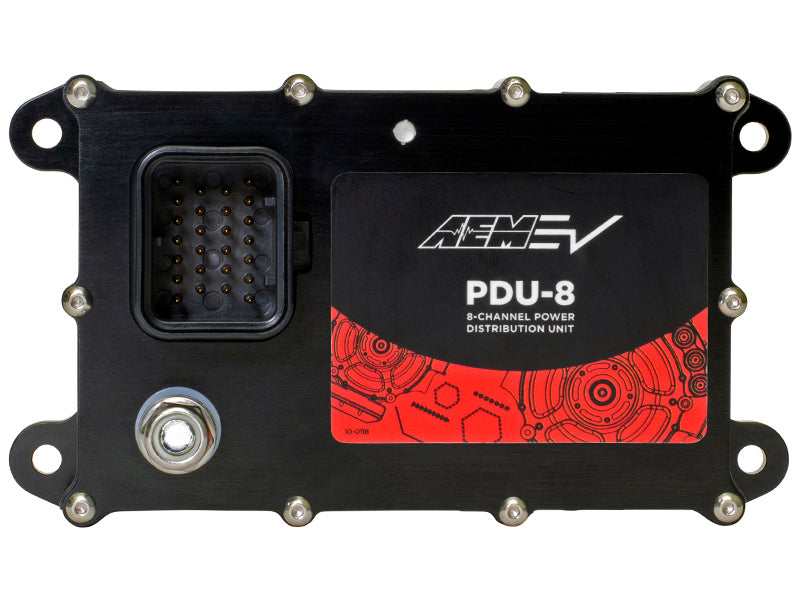

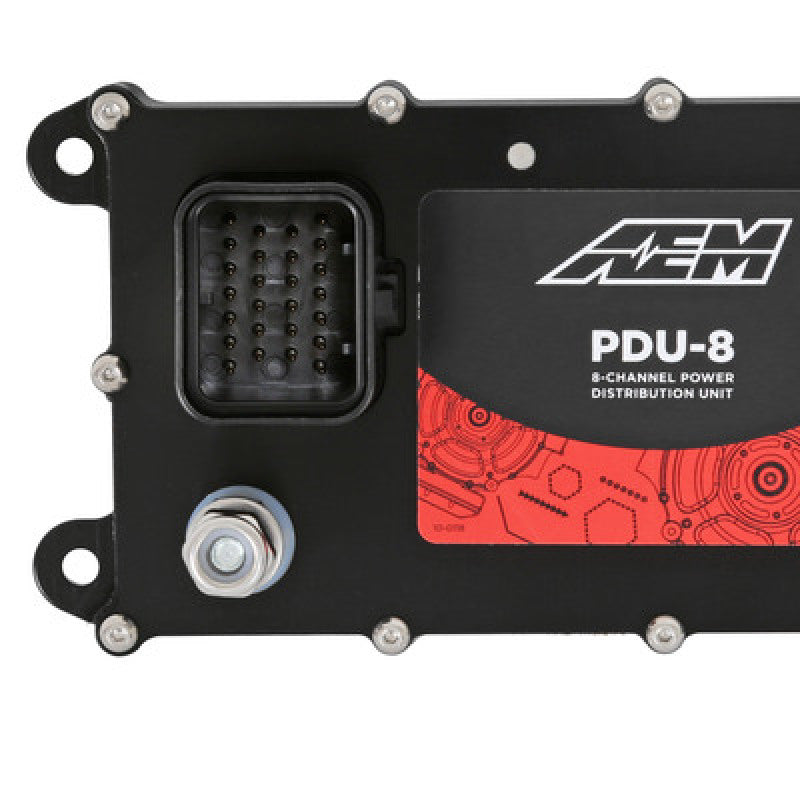

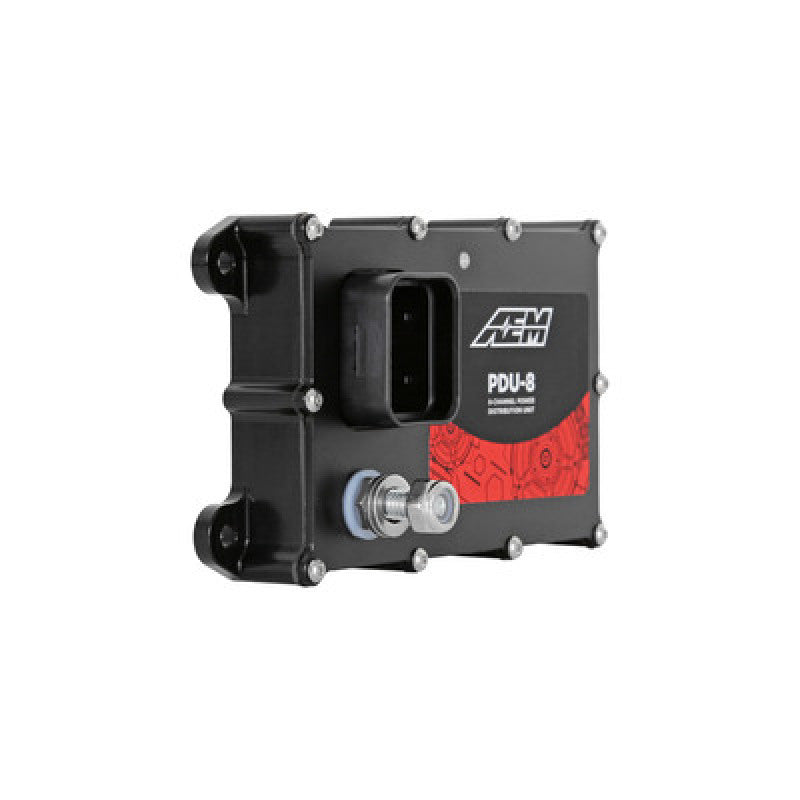

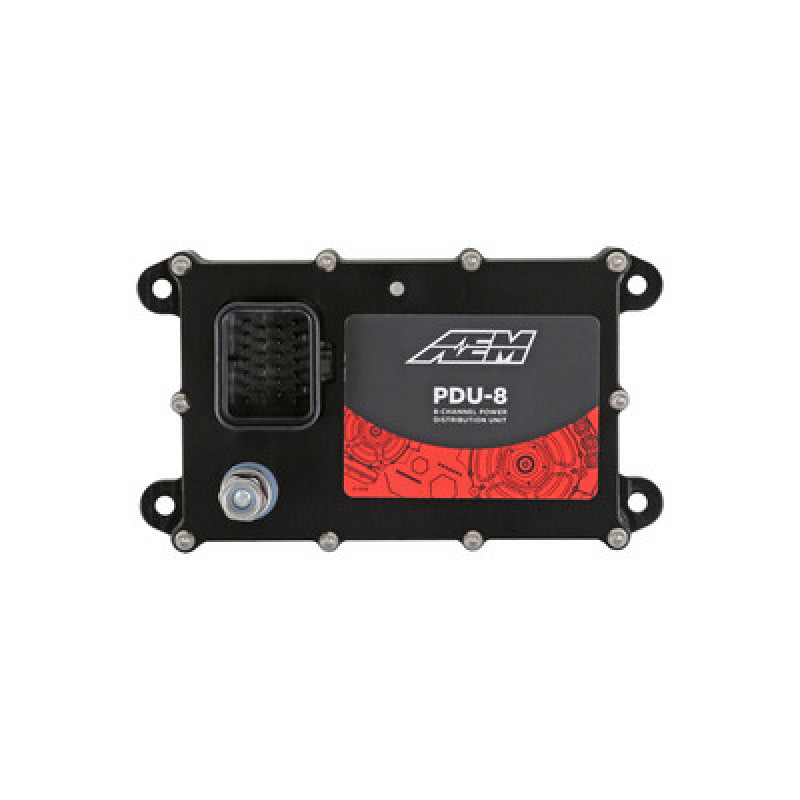

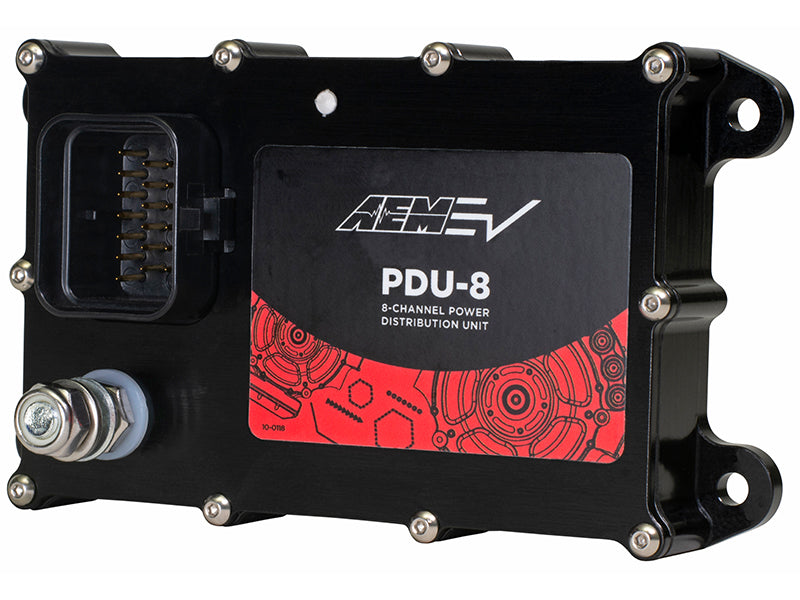

AEM EV 8 Channel CAN Driven Slave Type Power Distribution Unit (PDU)

In stock
Regular price $749.95
Product INFO
  • SKU T14.366815
  • Barcode 840879027100
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • Now available for internal combustion engines! The AEM EV PDU-8 is an eight channel Power Distribution Unit expansion device that gives you the power to program and control various switched devices using our ECU/VCUs, like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers, fuel pumps, and more. The ability to connect up to eight PDU-8s (four on AEM Dashes, and one on Infinity ECU's) on the same CAN bus network lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability. This CAN-based solid-state control module eliminates the need to install fuses and relays for the switched functions that it operates. The PDU-8 can easily be controlled by other CAN based controllers that support custom CAN settings, such as Motec, Link, FuelTech, Haltech, etc. Does work with Holley EFI if using the AEM dash display for logic based control.
  • CAN Bus 2.0, 500kbps, up to 8 units per bit.
  • Output Duty Cycle is 100hz, 0-100%.

Product Description - Extended

  • PDU-8, 8 CHANNEL CAN PDU Four 20A and four 10A high-side 12V outputs Fully-sealed, waterproof billet-aluminum enclosure
  • CAN bus controlled Power Distribution

Features and Benefits

  • Module is fully sealed for installation close to switched controls, simplifying wiring and reducing weight
  • Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices
  • Small size and lightweight (103x67x33mm/4.05x2.70x1.5", 190g/6.7oz/0.42lbs.)
  • CAN-commanded PDU, no logic programming required for PDU operation
  • Fully-sealed, waterproof billet-aluminum enclosure

Product Description - Short

  • AEM EV 8 Channel CAN Driven Slave Type Power Distribution Unit (PDU)
  • PDU-8, 8 CHANNEL CAN

Product Description - Long

  • PDU-8, 8 CHANNEL CAN PDU Four 20A and four 10A high-side 12V outputs
  • PDU-8 Eight-Channel Power Distribution Unit

AAIA Part Type Description

Power Distribution Block

Product Description - Invoice

PDU-8, 8 CHANNEL CAN PDU
