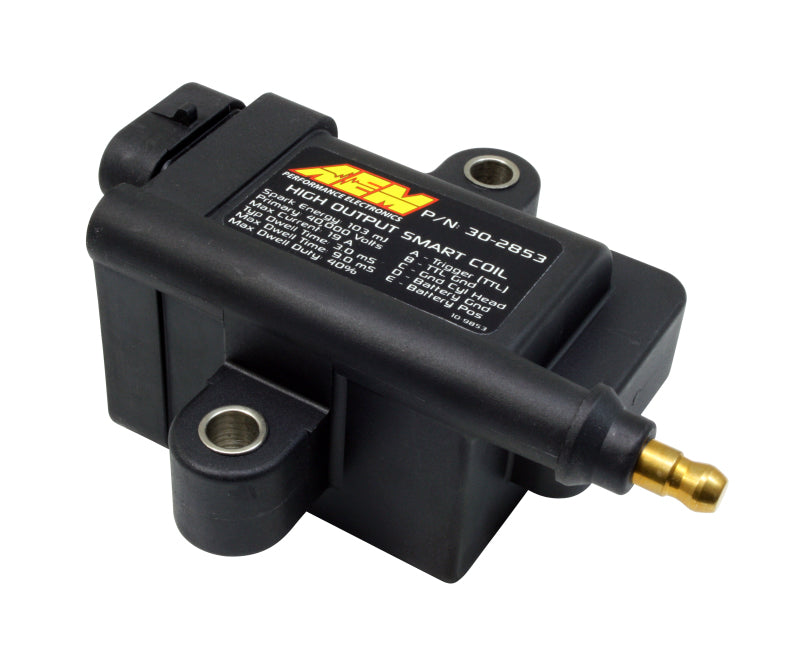

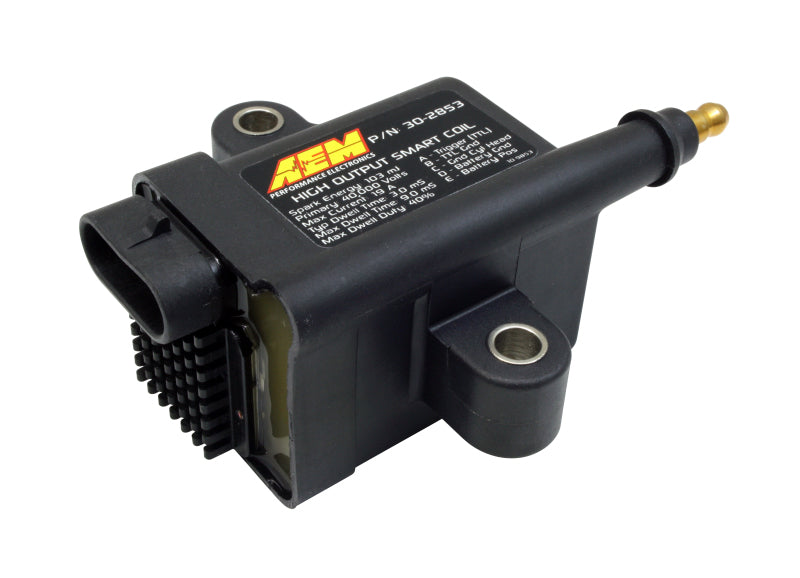

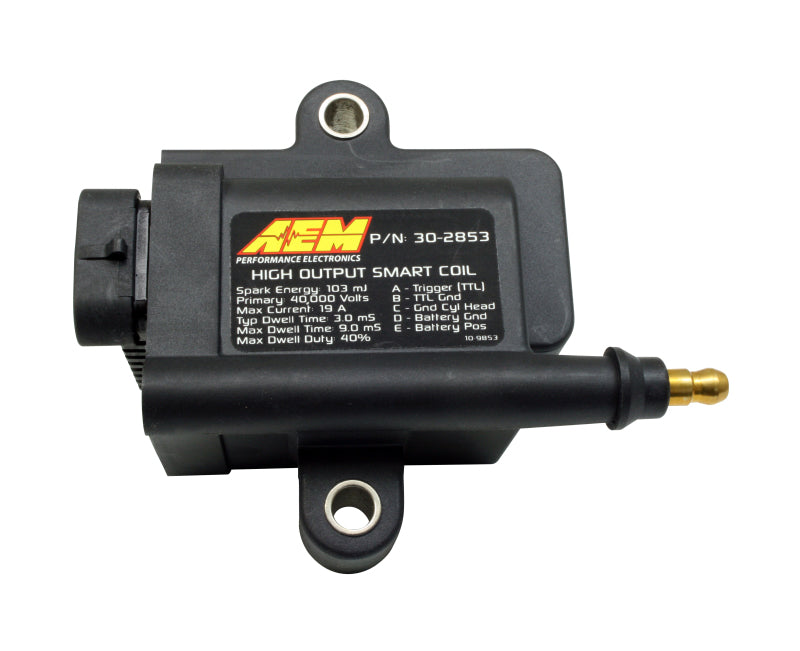

AEM Universal High Output Inductive Smart Coil

In stock
Regular price $87.15
Product INFO
  • SKU T14.249801
  • Barcode 840879021818
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • Auto enthusiasts who have forced induction engines, high RPM engines or run nitrous oxide are aware of the compromises that come with using inductive coils instead of converting to a Capacitive Discharge Ignition system (CDI). While inductive coils deliver a long spark duration with simplicity, they lack the energy to adequately ignite the mixture in the combustion chamber of a highly modified performance vehicle. Conversely, CDIs deliver an intense burst of spark energy, but with practically no spark duration, which makes having the proper air/fuel mixture in the combustion chamber paramount for best performance. This compromise ends with AEM's High-Output IGBT "Smart" Inductive Coils.
  • AEM's High-Output Inductive Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts-as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark duration.
  • The tradeoff between adequate spark energy and adequate spark duration ends with AEM's High-Output Inductive Coils, the first inductive coils that deliver CDI-like spark energy and voltage, and the long spark duration necessary for vehicles running high compression, high RPM, forced induction and/or nitrous engines.
  • AEM's High-Output, Insulated Gate Bipolar Transistor (IGBT) "Smart" Inductive Coils are designed for use on applications that do not have an external igniter.

Associated Comments

  • IMPORTANT: AEM High Output IGBT Smart and Dumb Coils are intended for coil-near-plug use ONLY. They are NOT intended for use on distributed applications and AEM cannot guarantee or warranty the performance of its IGBT coils when used on distributed ignition vehicles.
  • Max Continuous Dwell: 9 mS but don't exceed 40% duty cycle
  • Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum

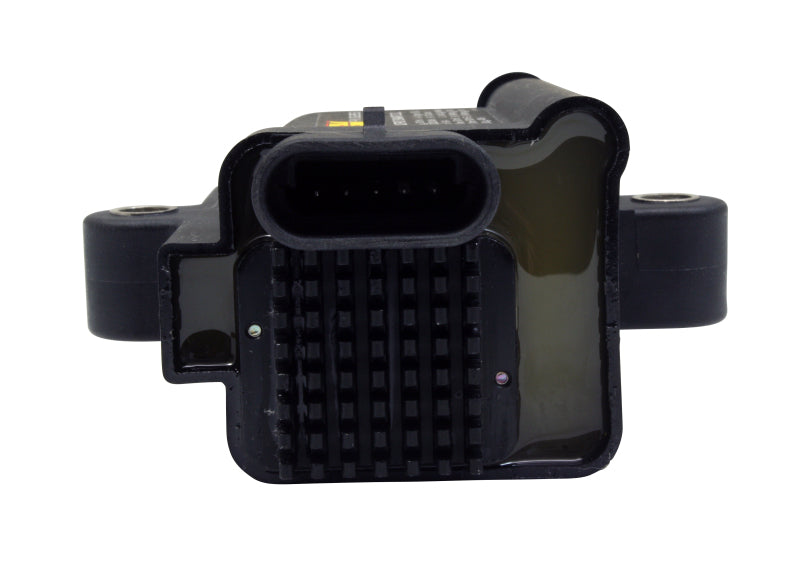

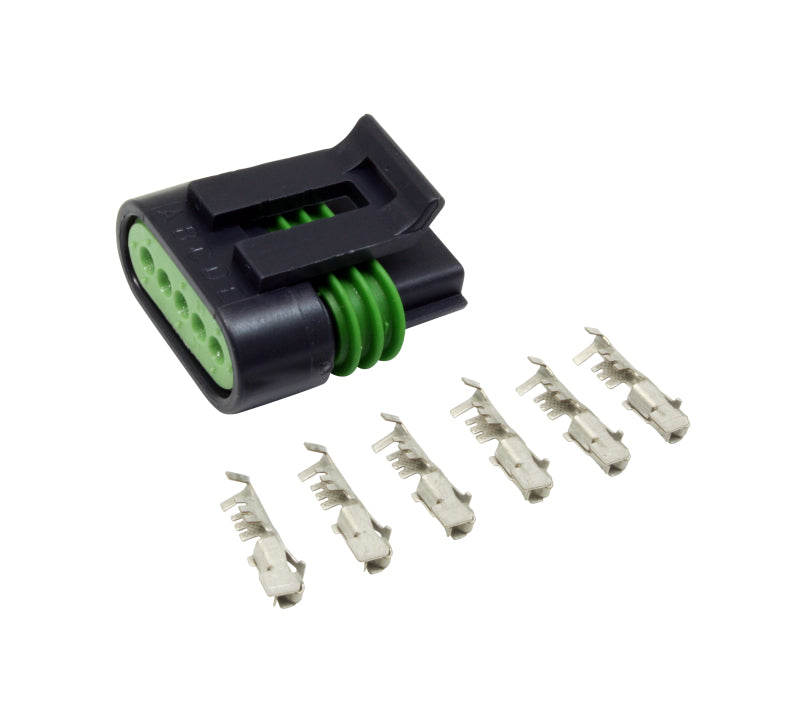

  • Mating Connector: Packard/Delphi 12162825 "Pull to Seat"
  • Mating Contacts: Packard/Delphi 12124075 "Pull to Seat"
  • High Tension Wire Terminal: HEI "spark plug top" Style
  • Peak Secondary Current: 102 mA +/- 10%
  • Maximum Battery Voltage: 17 Volts
  • Output (50pF load): 40kV +/- 10%
  • Output (no load): 40kV minimum
  • Output Energy: 103 mJ +/- 7%
  • Arc Duration: 2.9mS +/- 10%
  • Maximum Current: 19 Amps
  • Base Dwell: 3.0 mS
  • Turns Ratio 71:1

Features and Benefits

  • Deliver CDI-like spark energy-No CDI Module needed
  • Up to 40kV Output Voltage, without using a CDI
  • Incredibly long spark duration, up to 2.9mS
  • Can be mounted directly to the Engine
  • Cost less than aftermarket LS1 coils
  • Massive Spark Energy, up to 103 mJ
  • Can be mounted almost anywhere
  • Weather and Shockproof design

Product Description - Extended

  • Inductive Smart Coil, Spark Energy up to 118 mJ!
  • High Output Inductive Smart Coil

Product Description - Short

  • AEM Universal High Output Inductive Smart Coil
  • Hi Output Smart Coil

Product Description - Invoice

  • AEM - Hi Output Smart Coil
  • SMART HO DIS COIL KIT

Product Description - Long

AEM High Output Smart Coil

AAIA Part Type Description

Ignition Coil
