AEM

AEM X-Series Pressure 0-100psi Gauge Kit

In stock
Regular price $217.95
Product INFO
  • SKU T14.32230
  • Barcode 840879024482
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

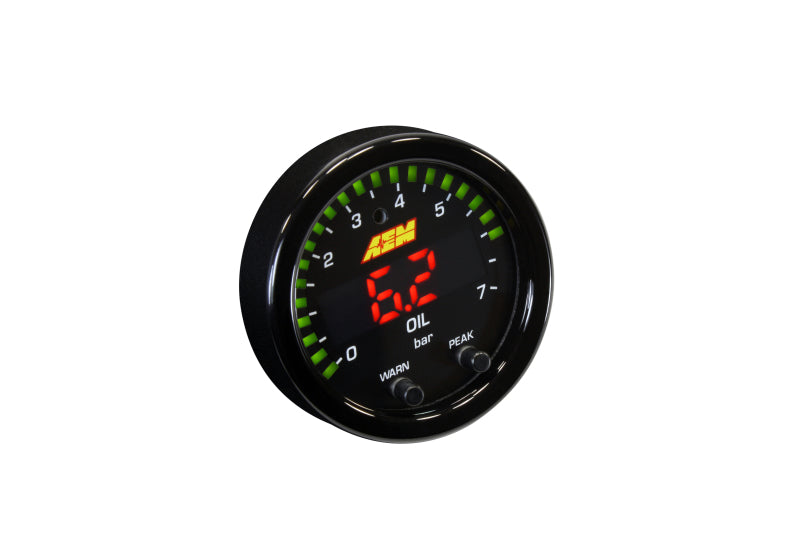

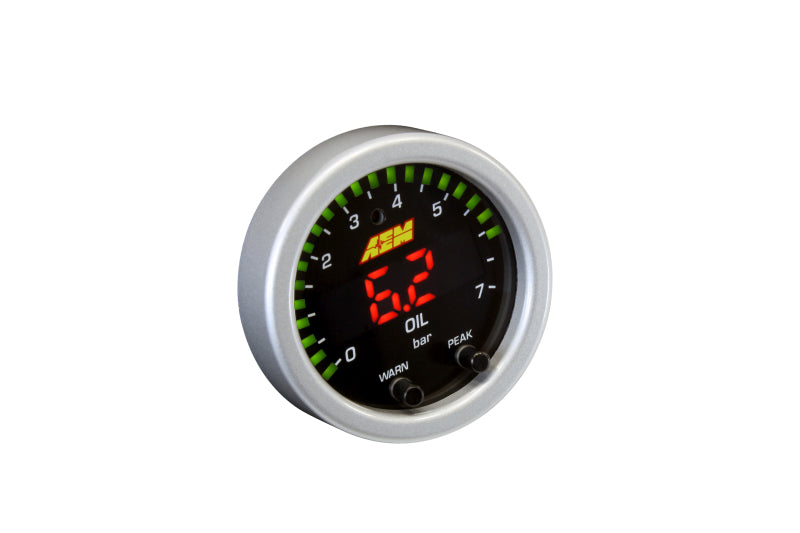

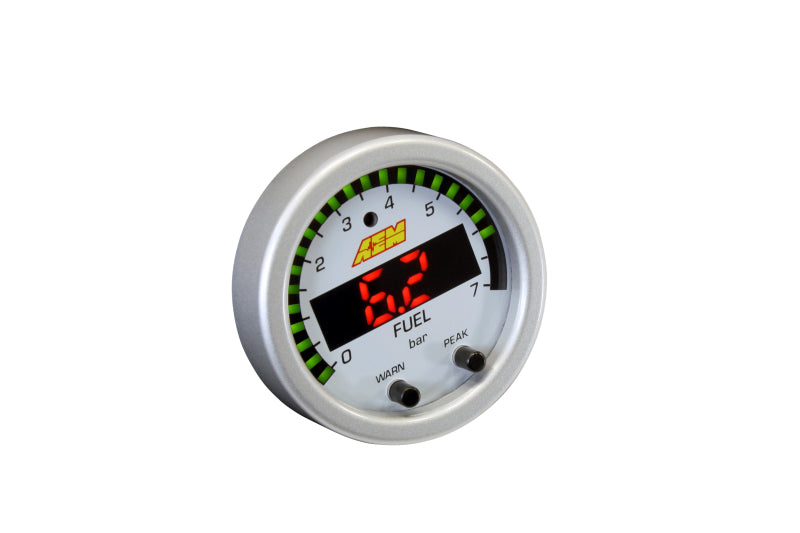

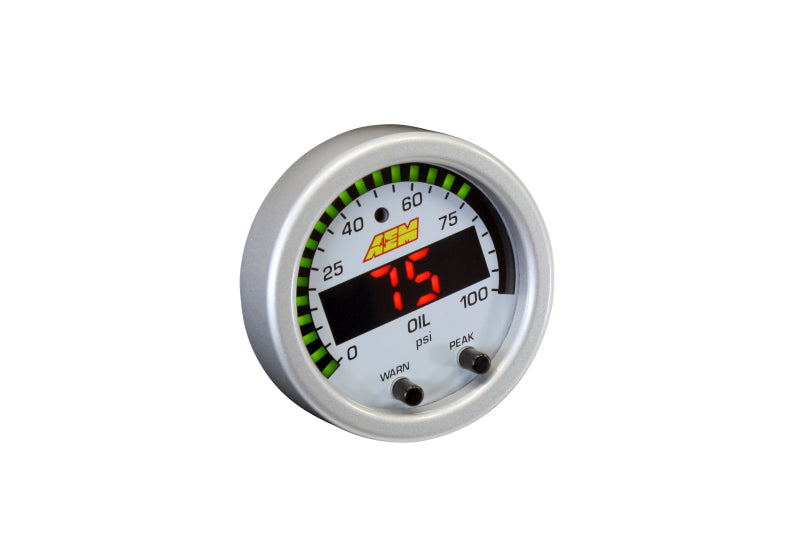

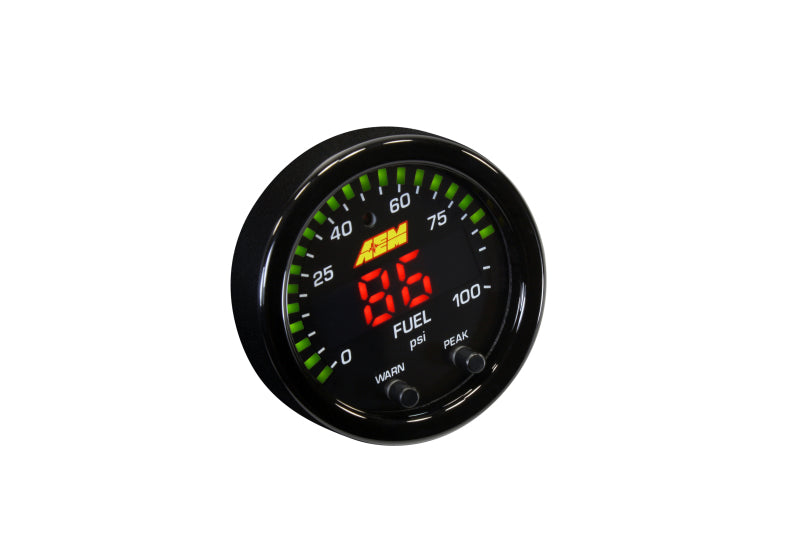

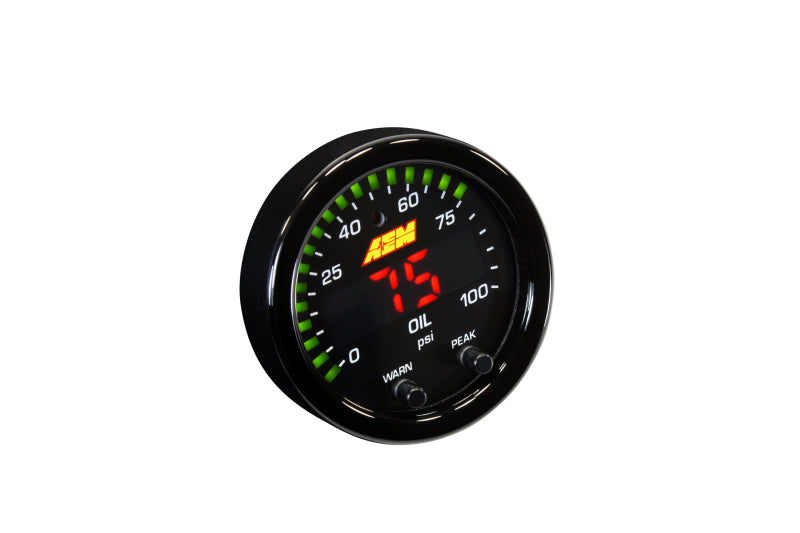

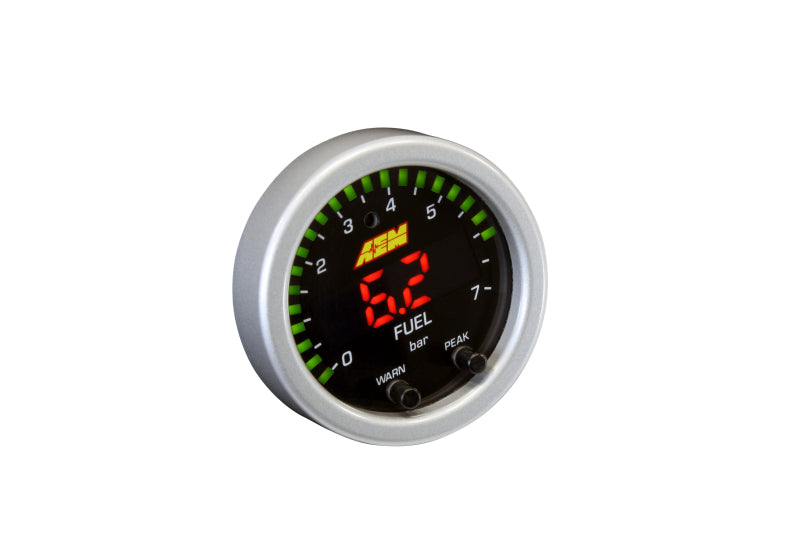

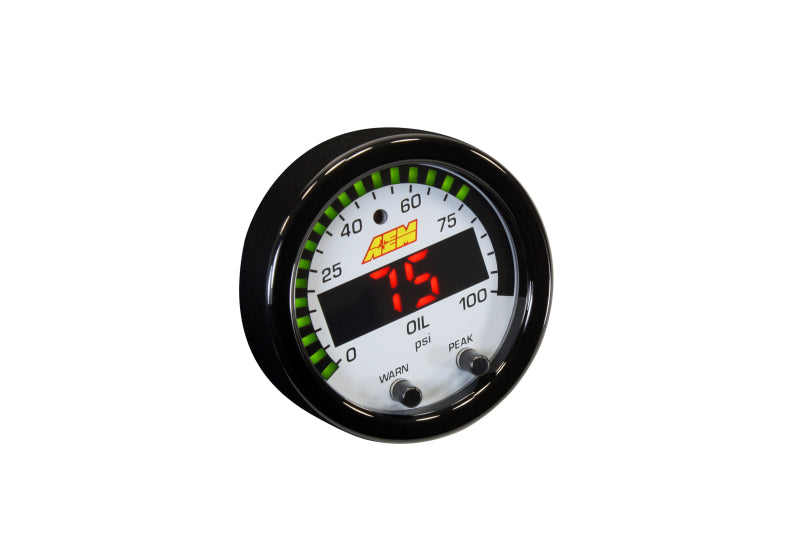

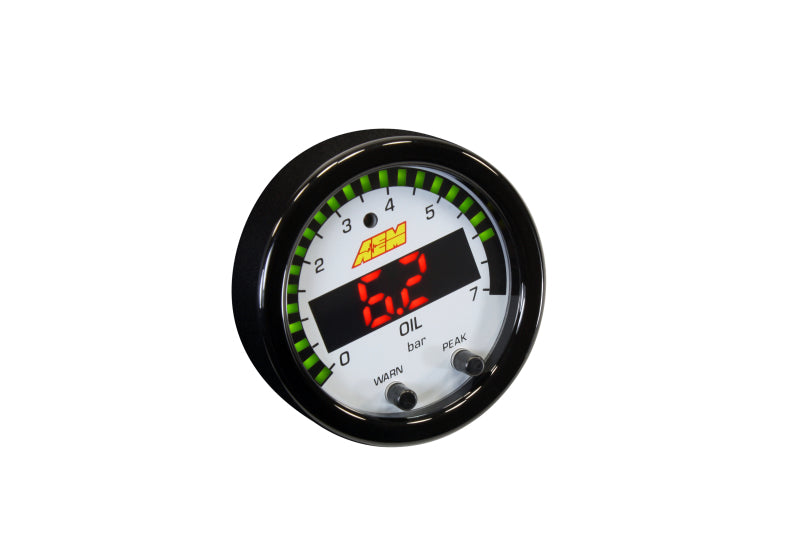

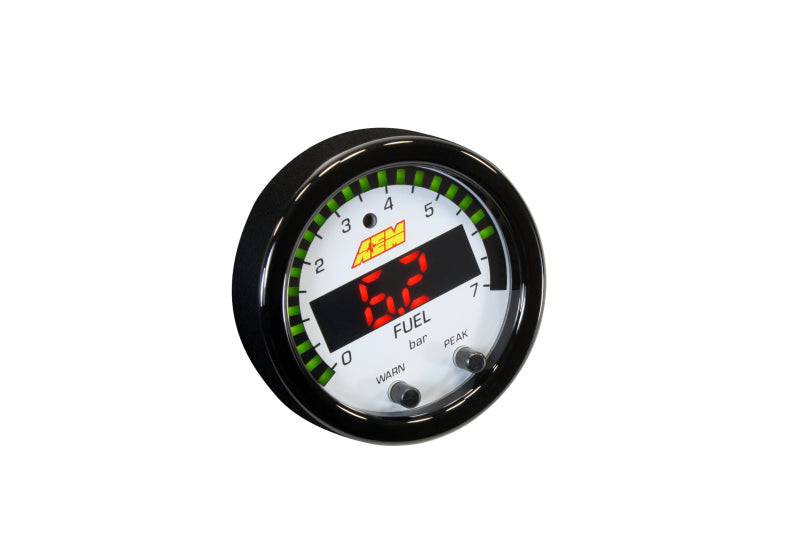

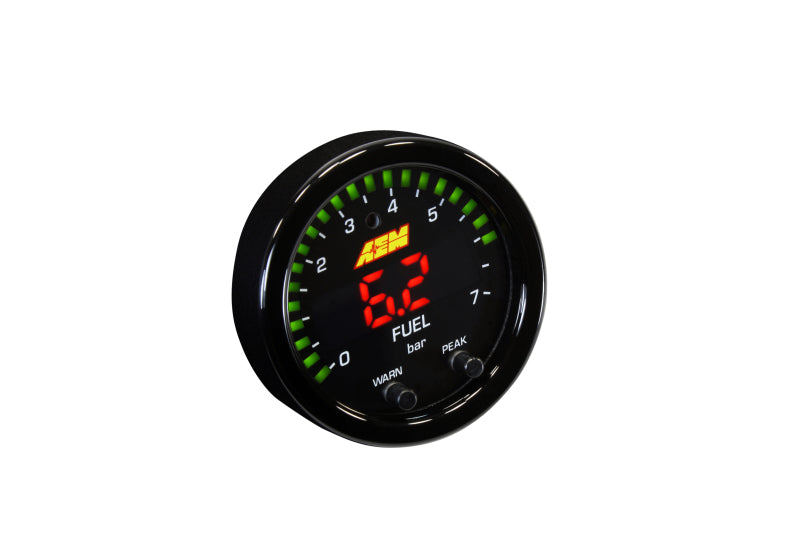

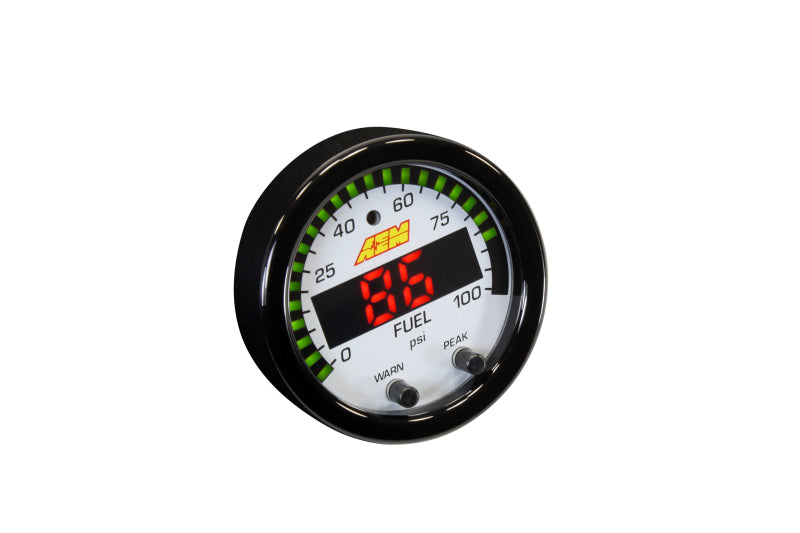

  • NOTE: The 30-0301 comes with a black bezel and black oil pressure faceplate. You will need to purchase the optional 30-0301-ACC accessory kit to get the silver bezel, white oil pressure faceplate, black fuel pressure faceplate and white fuel pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.
  • Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
  • Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
  • AEM's 30-0301 X-Series 100 PSI/7 BAR Digital Oil/Fuel Pressure gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate oil or fuel pressure readouts in their high performance vehicle.
  • X-Series Pressure Gauge 0-100psi / 0-7bar . Black Bezel & Black Oil Faceplate
  • SMARTER INTERFACE
  • EASIER TO MOUNT
  • EASIER TO READ

Features and Benefits

  • Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!

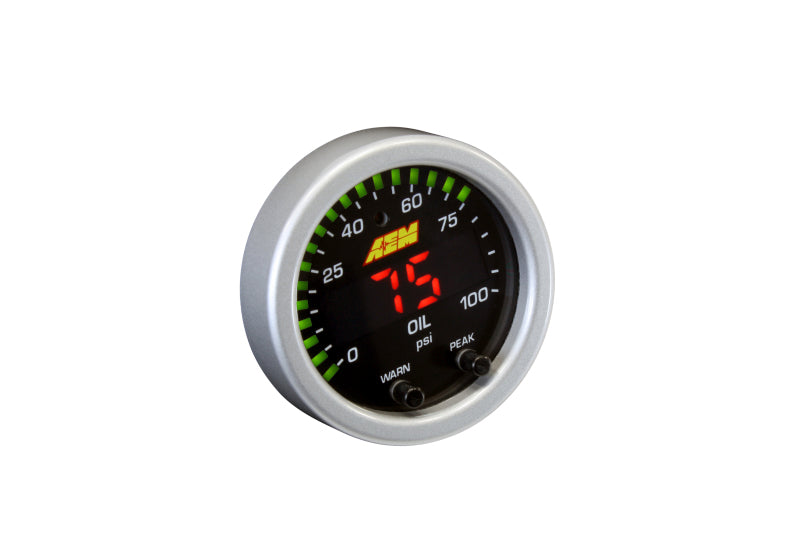

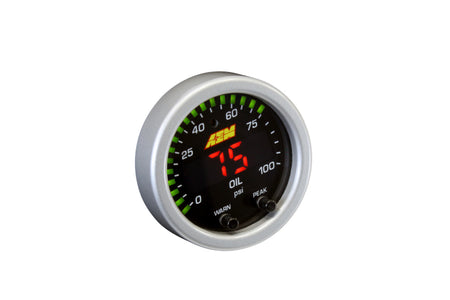

  • Optional silver bezel and white faceplate accessory kit available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Programmable center LED is 87% larger than original AEM gauges
  • User selectable standard or metric display (0-100 PSI/0-7 BAR)
  • 24 green outer LEDs for quick reference to engine parameter
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings

Product Description - Extended

  • X-Series Pressure Gauge 0-100psi - 0-7bar, Black Bezel and Black Oil Faceplate
  • 0-100psi/0-7bar - Black Bezel and Black Oil Faceplate

Product Description - Short

  • AEM X-Series Pressure 0-100psi Gauge Kit
  • X-Series Gauge

Product Description - Long

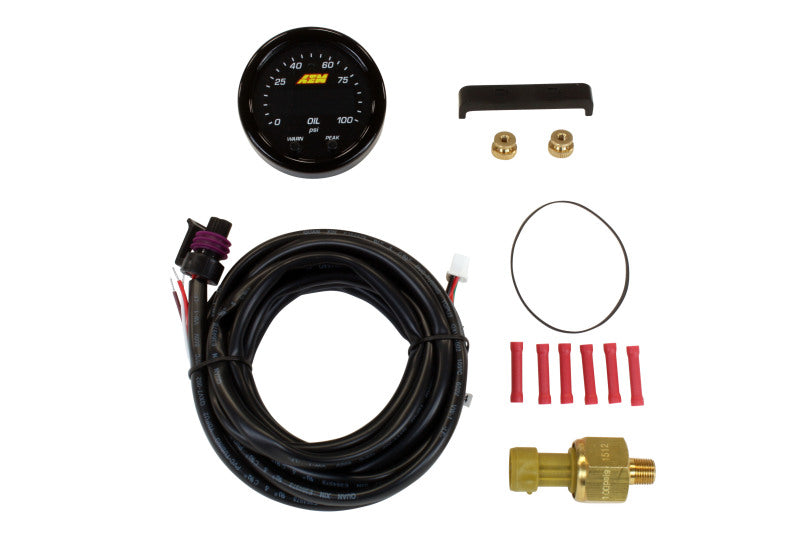

AEM X-Series Fluid Pressure Gauge Kit

AAIA Part Type Description

Electronic Multi-Purpose Gauge

Product Description - Invoice

  • X GAUGE KIT, FLUID PRESS 100
  • AEM - X-Series Gauge
