Market Description
- X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
- Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
- AEM's 30-0309 X-Series 0~15PSI Digital Boost/Fuel Pressure Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost or fuel pressure readouts up to 15 PSI in their high performance supercharged or carbureted vehicle.
- Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

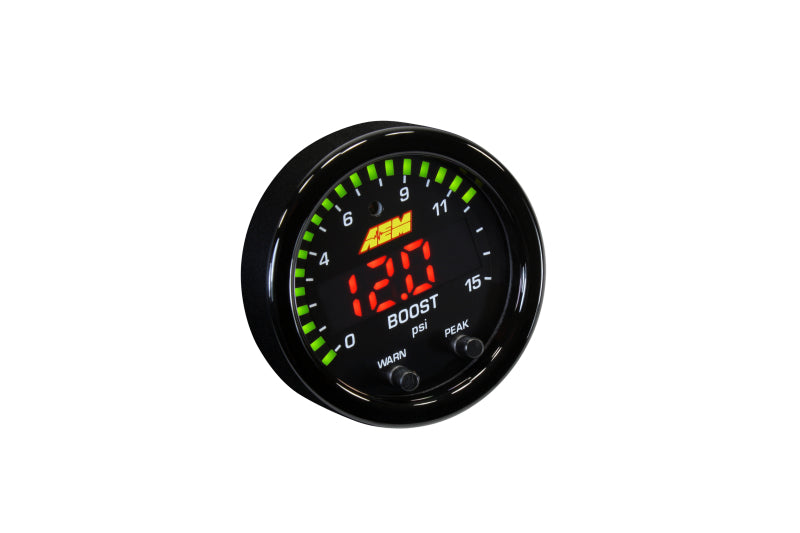

- X-Series Pressure Gauge 0-15psi. Black Bezel & Black Boost/Fuel Faceplate
- SMARTER INTERFACE
- EASIER TO MOUNT
- EASIER TO READ
Product Description - Extended

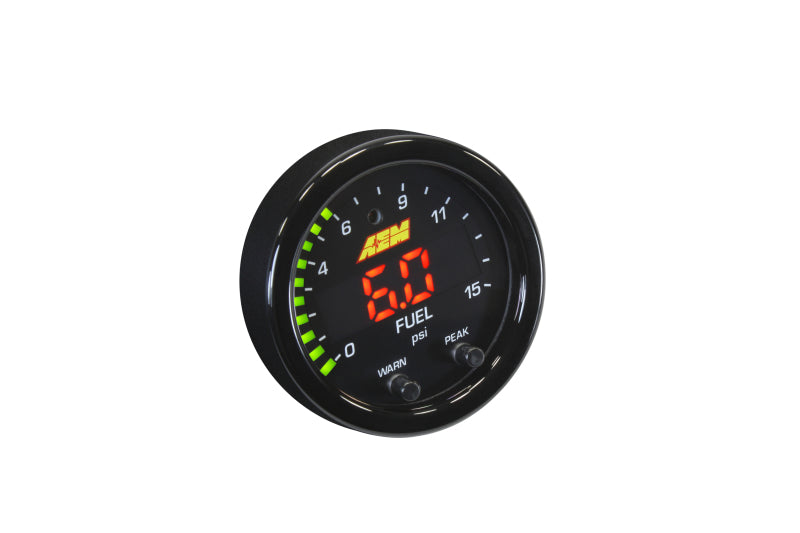

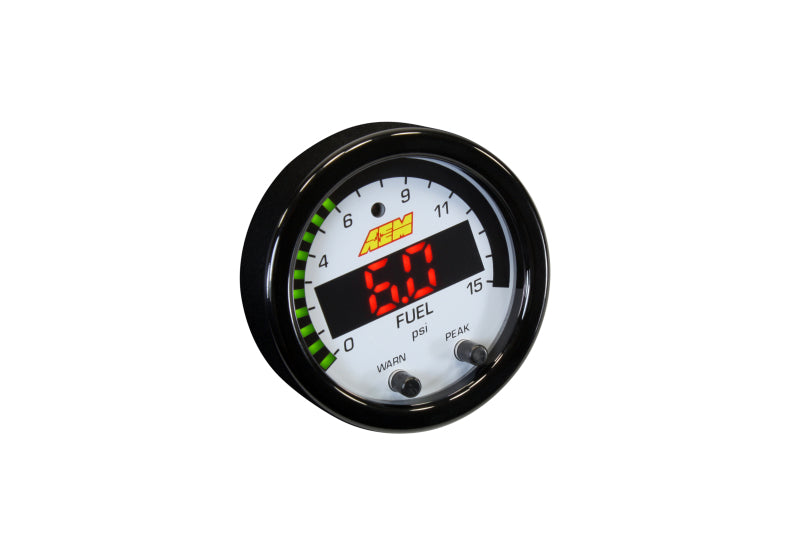

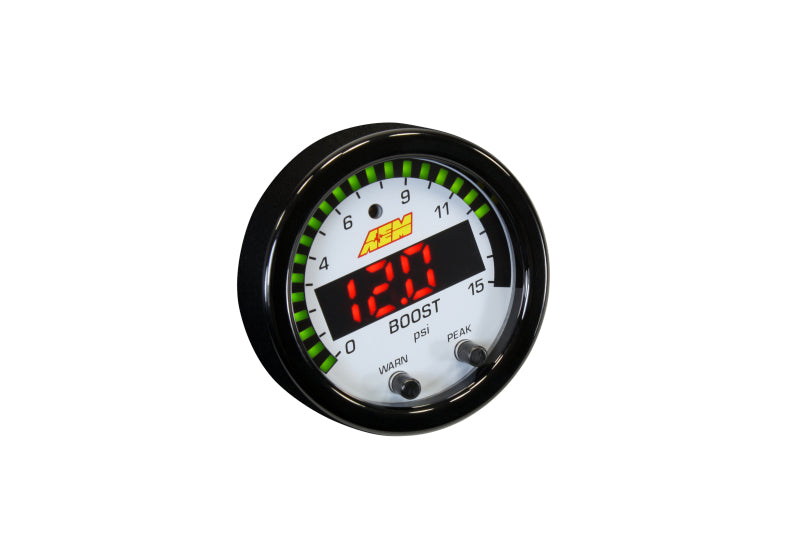

- X-Series Pressure Gauge 0-15psi, Black Bezel and Reversible Black Boost or Fuel Pressure Faceplate
- 0-15 PSI - Black Bezel and Black Boost/Fuel Faceplate
Features and Benefits
- Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!

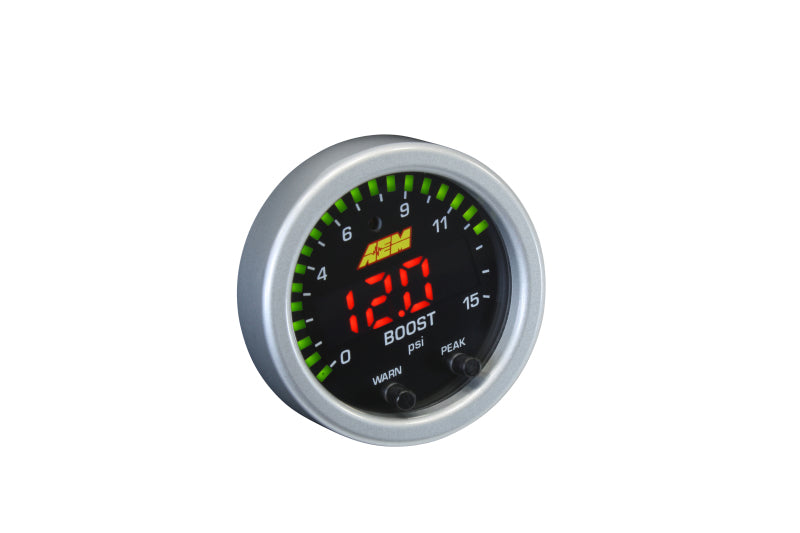

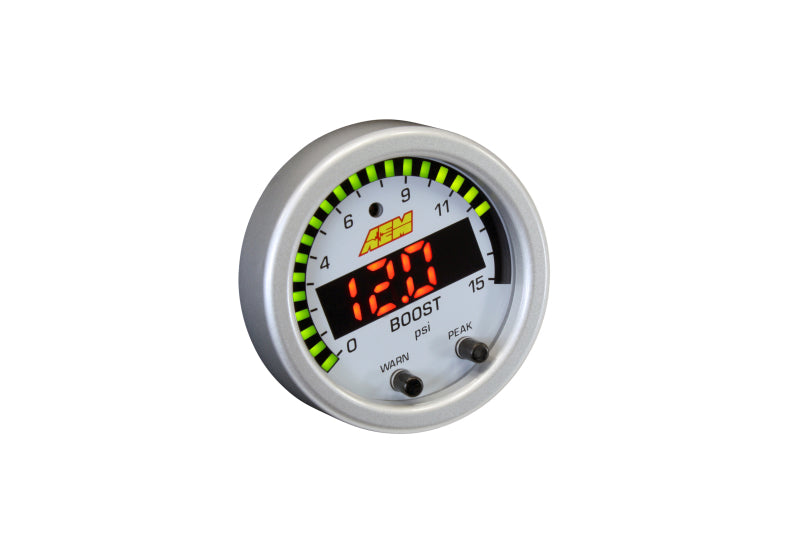

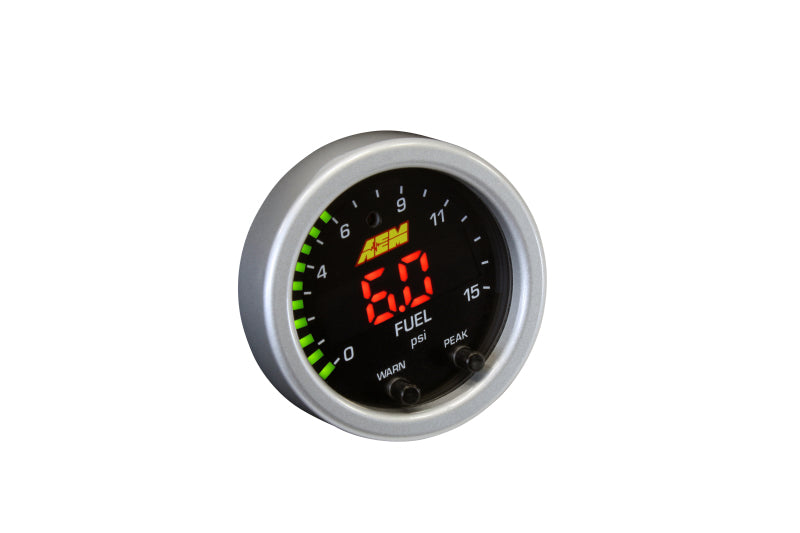

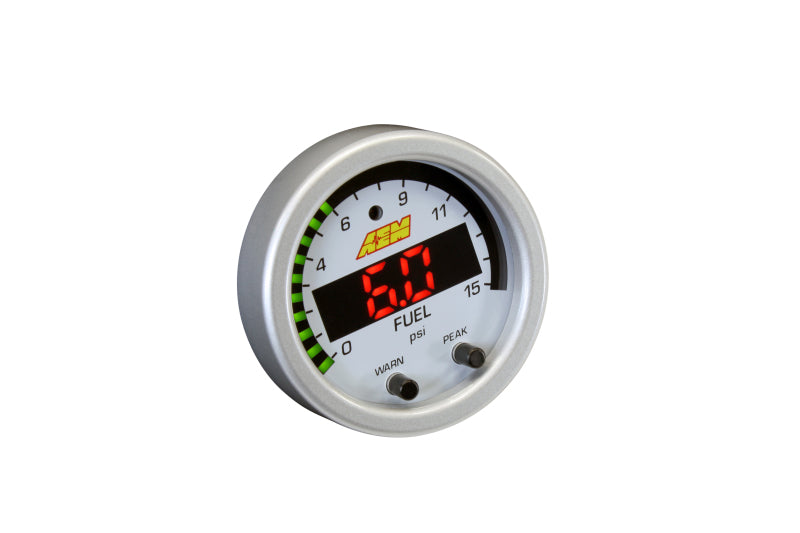

- Optional silver bezel with white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- 24 green outer LEDs for quick reference to engine parameter
- Positive locking connectors provide secure connection
- Auto dimming sensor delivers ideal display brightness
- Center LED is 87% larger than original AEM gauges
- Peak/Recall via gauge face buttons
- User selectable threshold warnings
Product Description - Short

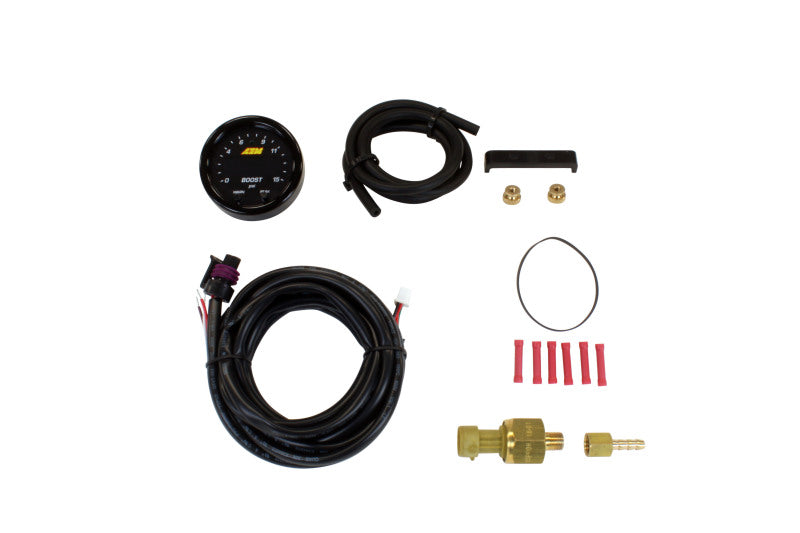

- AEM X-Series Pressure 0-15psi Gauge Kit
- X-Series Gauge
Product Description - Long
AEM X-Series Pressure Gauge Kit
AAIA Part Type Description
Electronic Multi-Purpose Gauge
Product Description - Invoice
- X GAUGE KIT, FUEL BOOST 15 PSI
- AEM - X-Series Gauge
