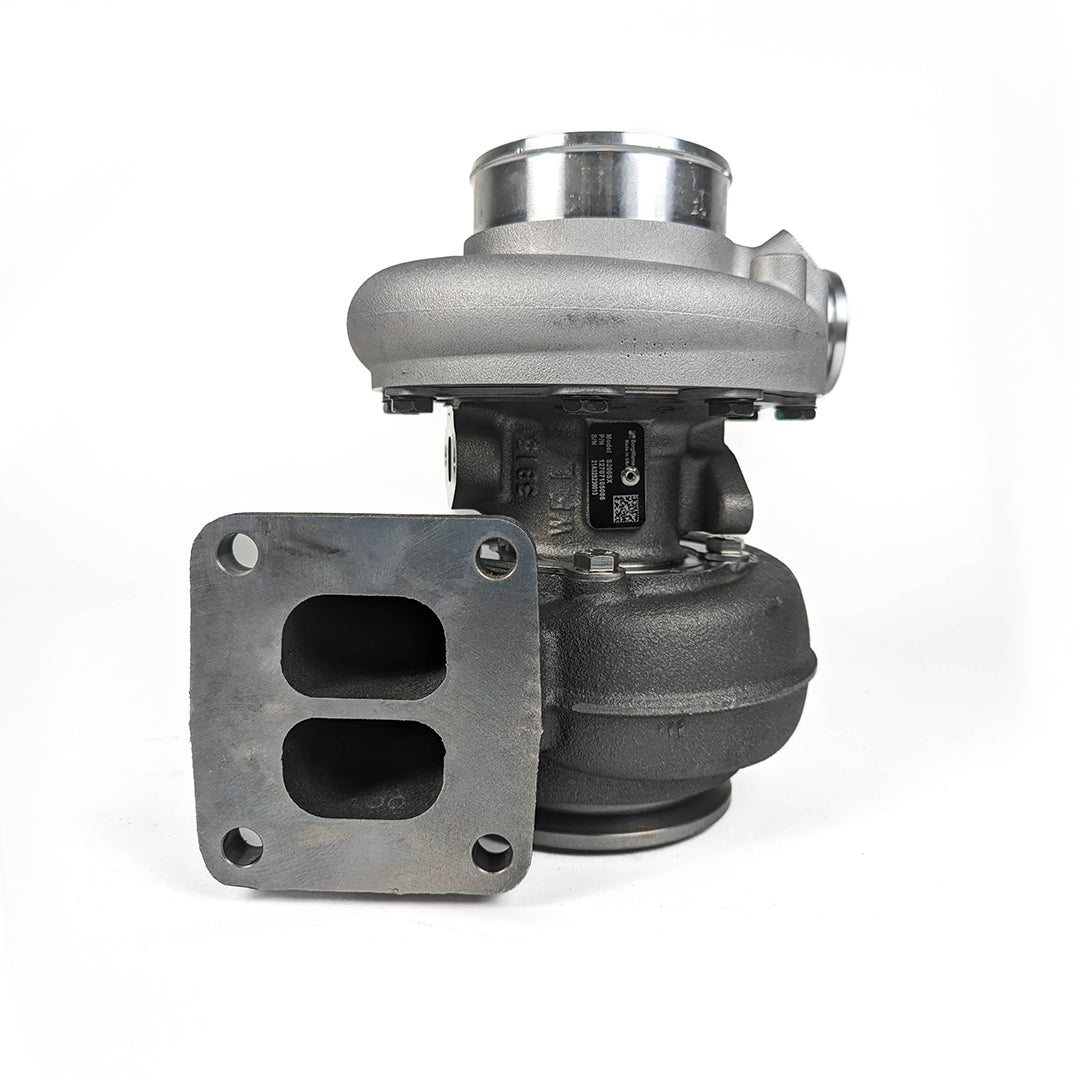

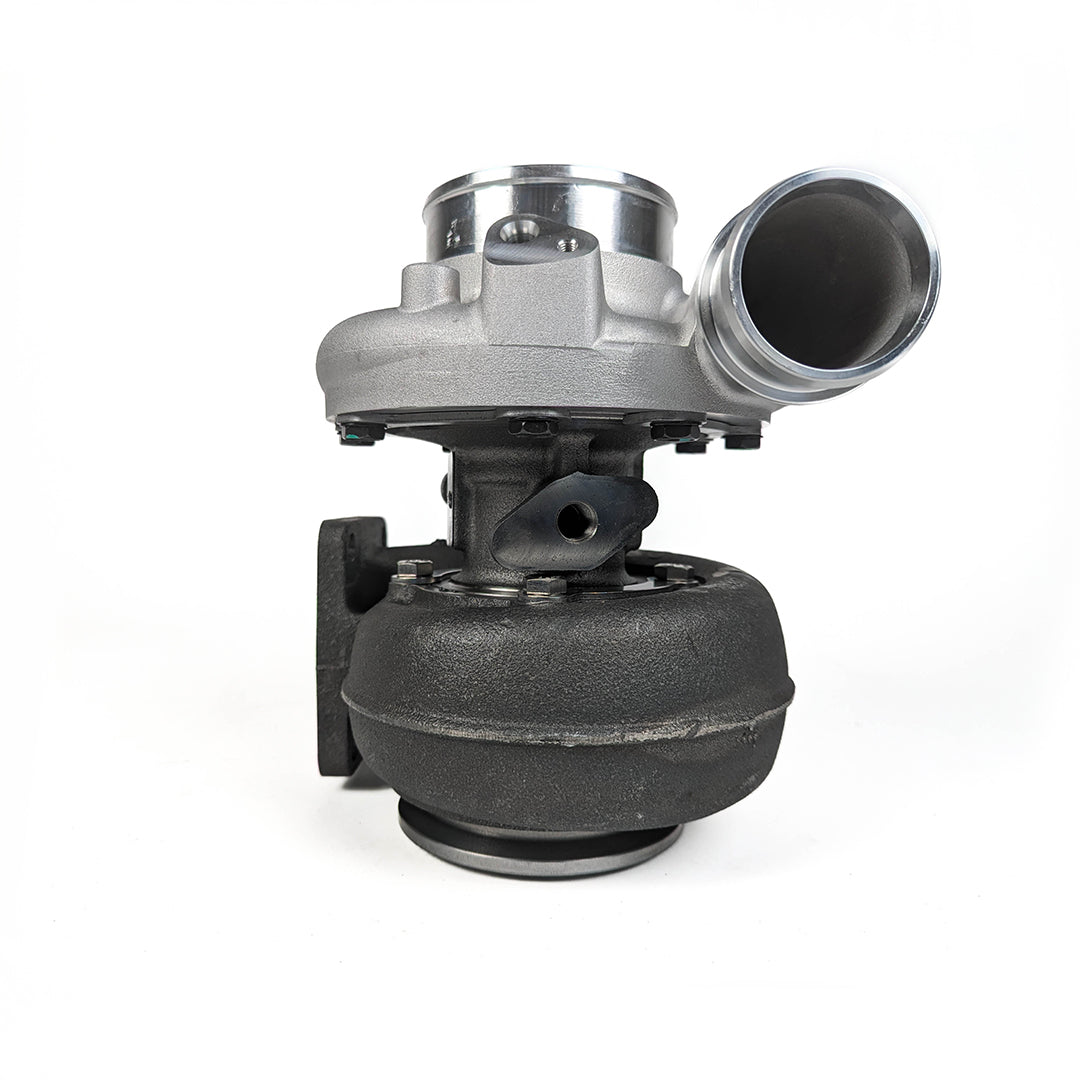

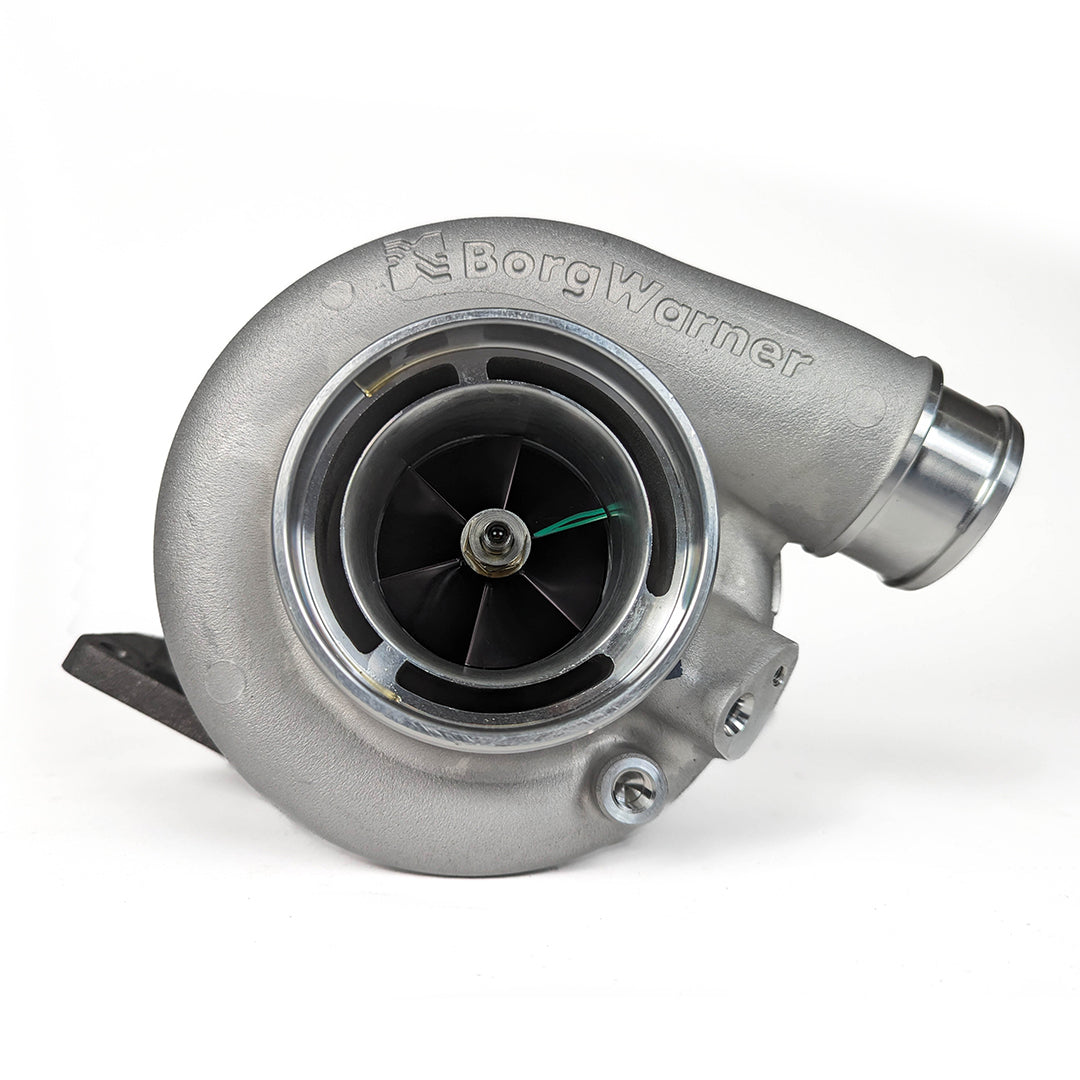

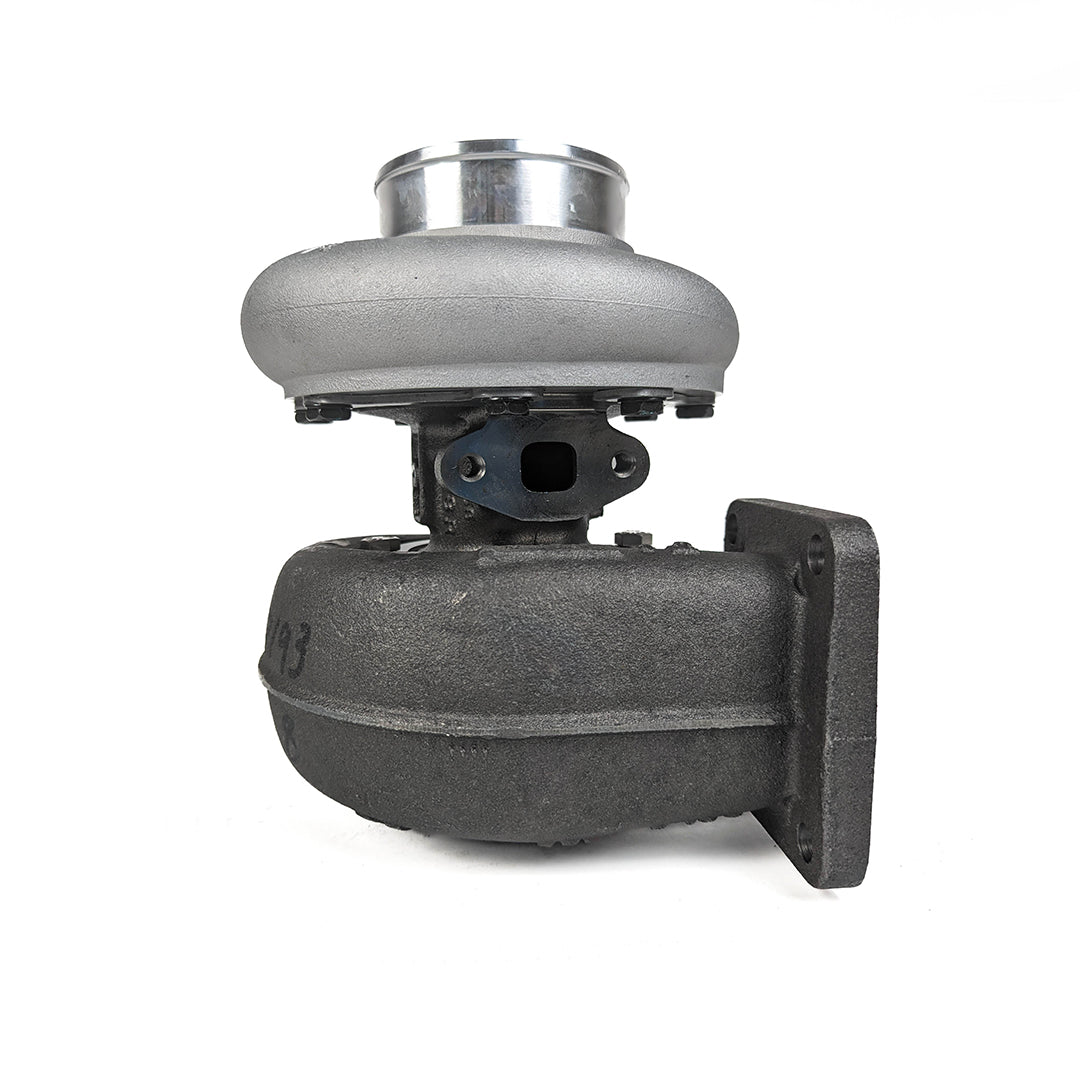

BorgWarner Airwerks S258SX-R (7670)BorgWarner's all-new S258SX-R turbocharger sets a new standard for efficiency, power, and reliability in a simple and cost-effective journal-bearing design. This turbocharger is based on the reliable S200 frame, and flows a remarkable 76lb/min! Featuring BW’s highly advanced 58mm billet compressor wheel, the SXR boasts state-of-the-art aerodynamics to seamlessly blend remarkable airflow rates with minimized inertia. The result? Earlier spool-up and lightning-fast response times, delivering an unparalleled driving experience.
Versatility is the name of the game with the S258SX-R. Whether you're dominating the racetrack, unleashing high performance on the streets, or seeking the perfect balance between the two, this turbocharger has you covered. With its ability to support a wide range of horsepower requirements, it stands as the ultimate choice for competitive racing, spirited street driving, and everything in between.Features & Benefits:
Supports up to 775 HP
Low rotor inertia (quicker spooling)
Integrated speed sensor port
Forged milled compressor wheel
Flexible compressor cover outlet options
Pre-machined boost port
Optimized compressor stage aerodynamics
COMPRESSOR SPECIFICATIONS
Compressor Type: Forged-Milled Wheel (FMW)
Compressor Wheel OD (exducer): 88mm
Compressor Wheel Inducer: 68mm
Max Flow Rate: 76 lb/min
Max Turbo Speed: 580 m/s
Compressor Housing Connections:
Inlet: 3.5″ Hose Coupler
Outlet: 2.0″ Hose Coupler
TURBINE SPECIFICATIONS
Turbine Wheel Exducer: 61.43mm
Turbine Wheel Inducer: 70mm
