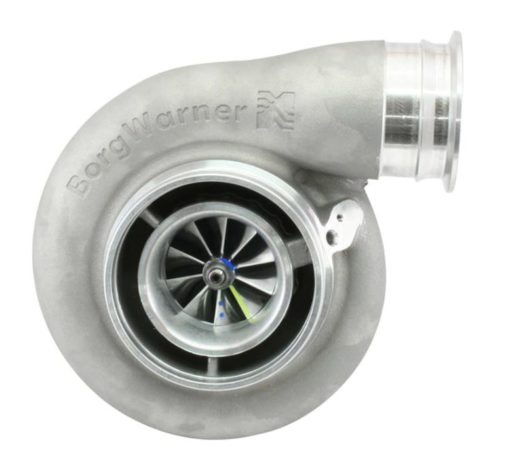

The BorgWarner AirWerks S476SX-E T6 Is Ready to Boost Your Car's Power
If you're looking for a smaller turbo that delivers big power, then look no further than the S476SX-E turbo from BorgWarner. Ideal for applications that require more airflow than the GTX42R or S400SX 74.56mm but also want better fitment than GTX45R. The 76.00mm S400SX-E turbocharger from BorgWarner is the smallest T6 turbo in the AirWerks lineup and uses state-of-the-art SX-E blade aero on both the 76.00mm inducer/100.00mm exducer compressor and the 87.37mm turbine wheel. This turbo is designed for use in high power and high boost 800-1150hp+ per turbo.

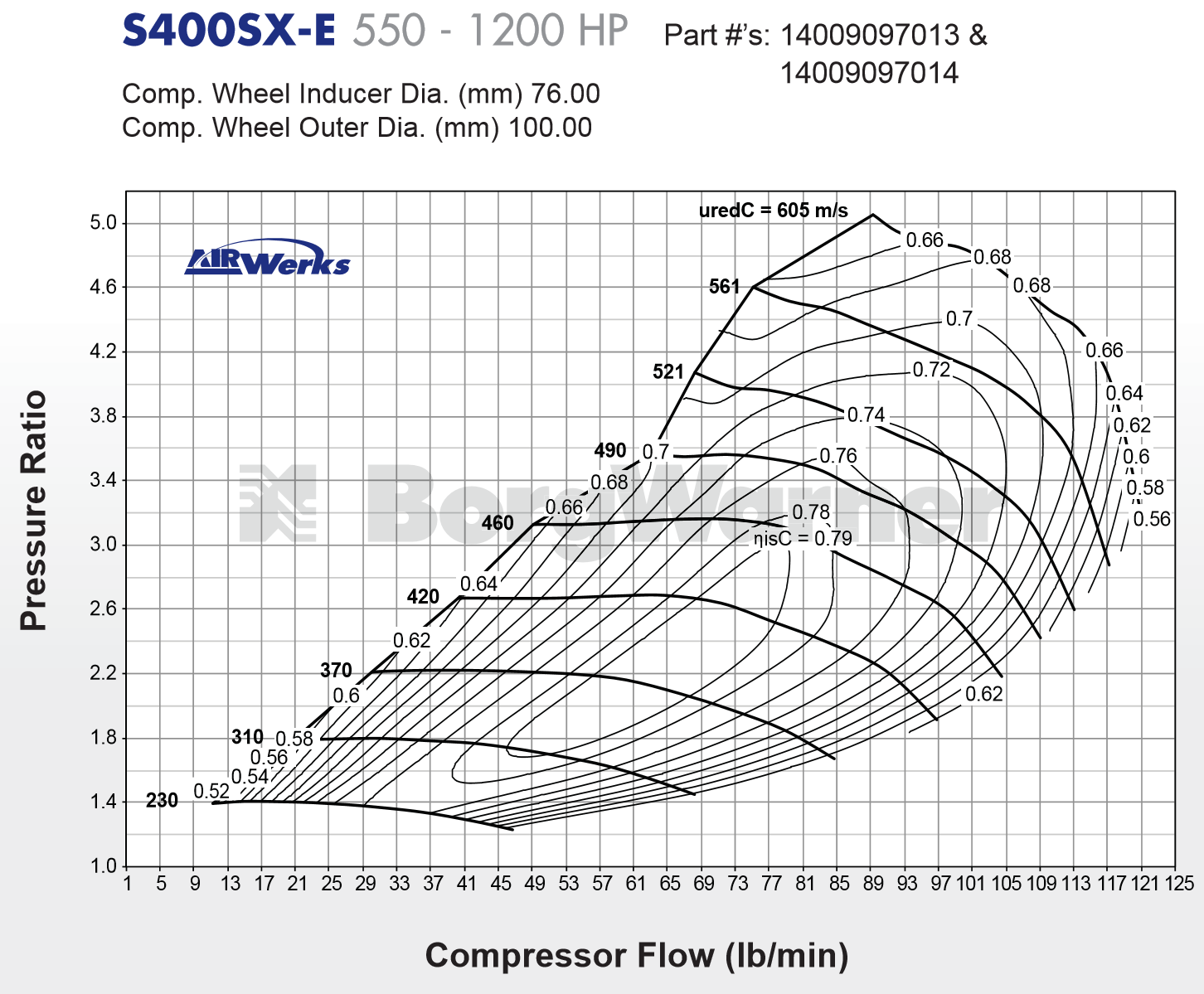

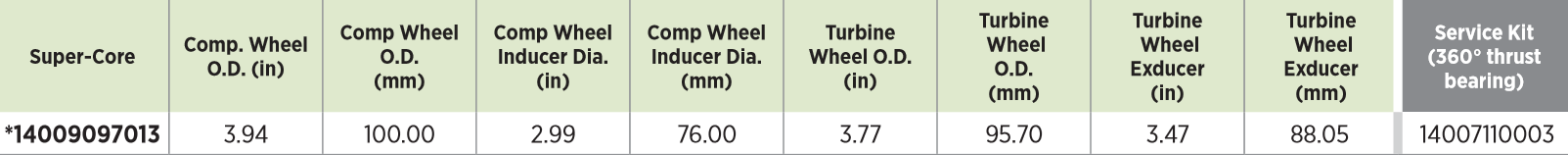

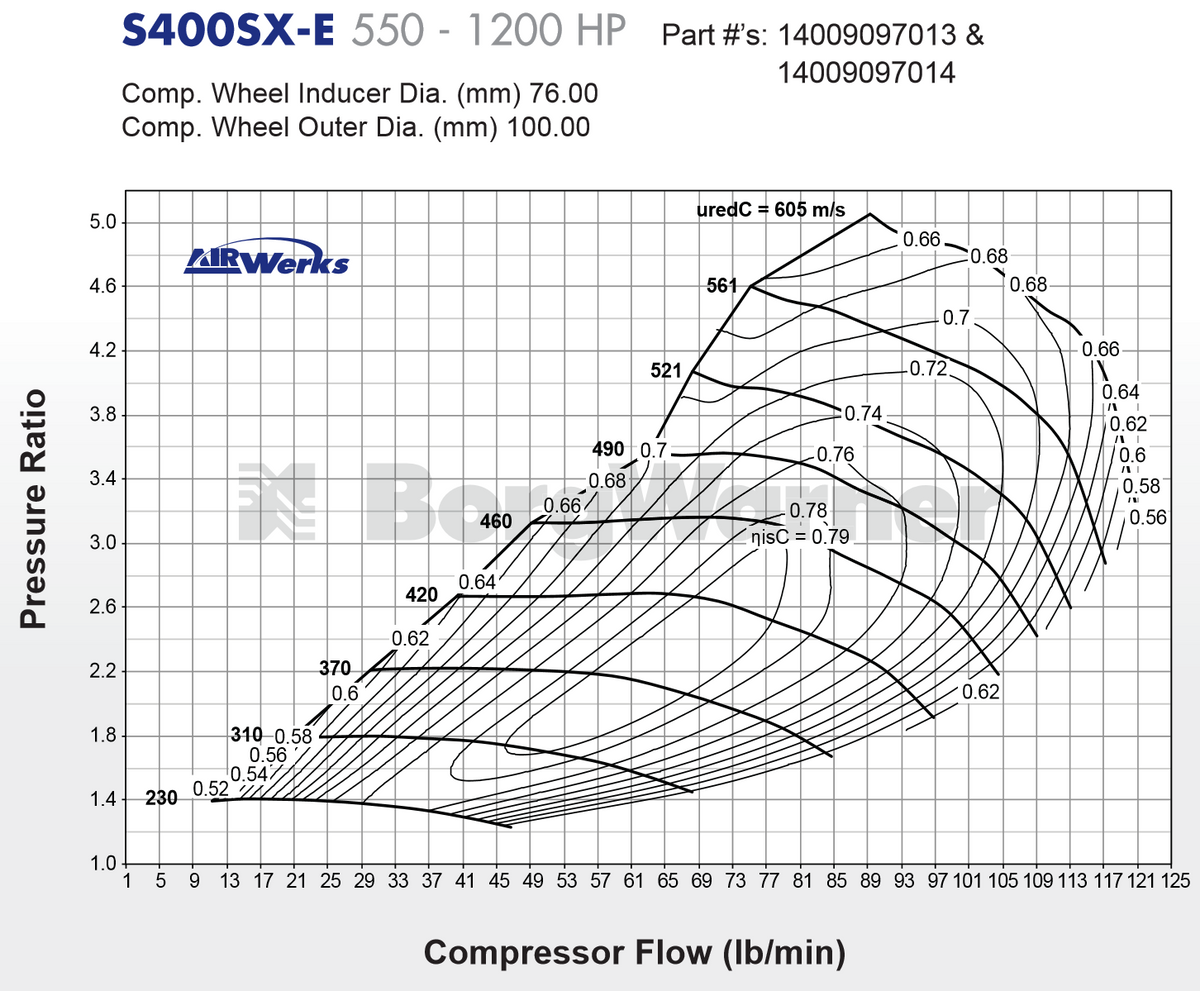

Compressor Specifications

Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 100.00mm
Compressor Wheel Inducer: 76.00mm
Max Flow Rate: 121 lb/min

Turbine Specifications

Turbine Type: Inconel S400SX Turbine Wheel
Turbine Wheel OD: 95.70mm
Housing Material: D5S sandcast

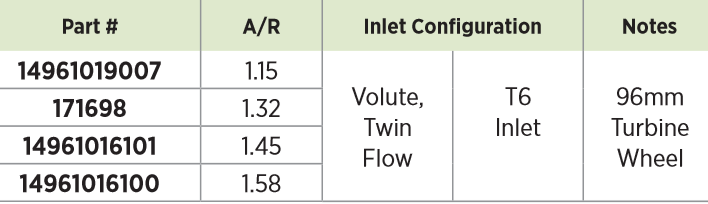

Housing Size and A/R ratio: S400SX 10096 (S476SX-E) is available in four (4) different turbine housing configurations:

1.15 A/R T6 Twin Scroll
1.32 A/R T6 Twin Scroll
1.45 A/R T6 Twin Scroll
1.58 A/R T6 Twin Scroll (Recommended for 30+psi Boost Levels)
