CSF 15-18 BMW M2 (F87) Race-Spec Oil Cooler

Out of stock
Regular price $399.00
Product INFO
  • SKU T14.205333
  • Barcode 710353081044
Out of stock

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

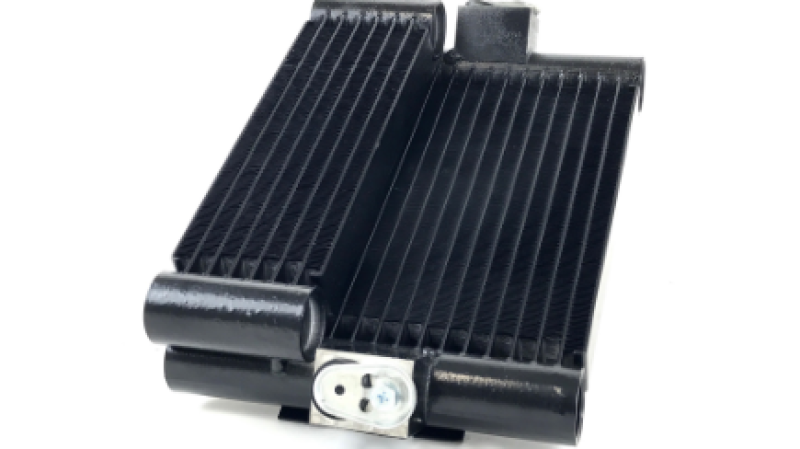

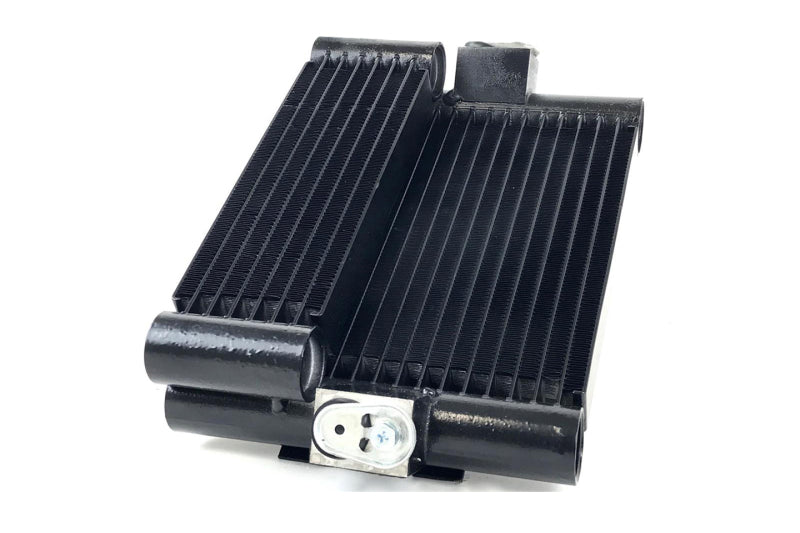

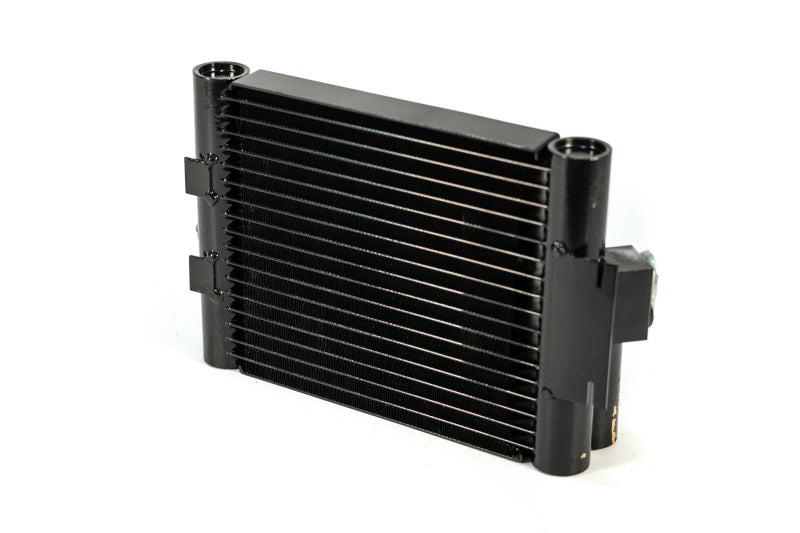

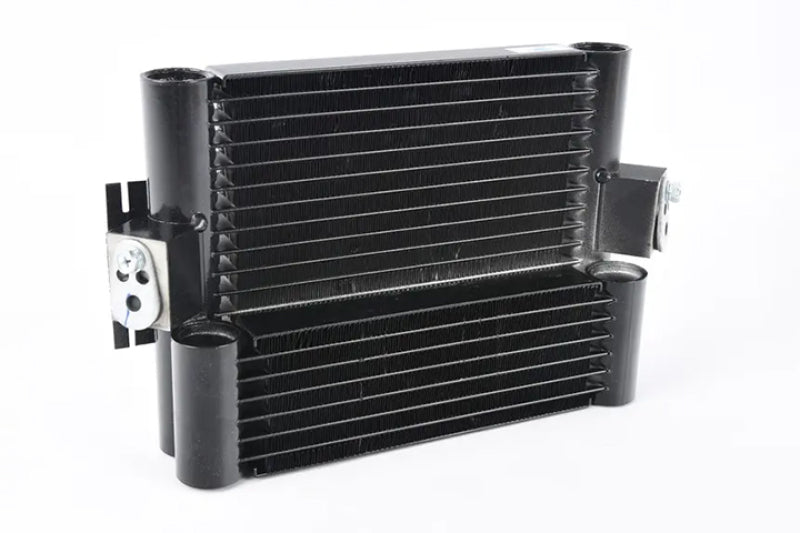

BMW M drivers demand nothing but the best from and for their vehicles. While the F87 M2 (N55) is very capable on the street and track, it does suffer from heat issues in extreme conditions. Extensive track testing reveals the engine oil temps reaching upwards of 280? which will send the M2 into limp mode. The CSF Oil Cooler has been track tested in 103? (115 ? Heat Index) and keep the oil temps much lower than factory with a maximum temperature recorded at 240? throughout testing. The extra cooling performance is accomplished in a design that is a true "drop-in fit" requiring no modifications to install. It accepts all attaching oem components including oil-line connections, mounting brackets and shroud/ducting. This is accomplished by utilizing CSF's AC Condenser Technology with a 1-Row super-high pressure 26mm multi-channel microtube. The front full-size core has 17 cooling tubes vs. oem 15 tubes while the backside cooler has an additional 6 rows. This also increases the overall oil volume of the system by 0.5 quarts (0.47 liters).

Associated Comments

The CSF #8104 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your N55 F87 M2 hard on the street or track, a CSF Oil Cooler is the obvious choice.

Features and Benefits

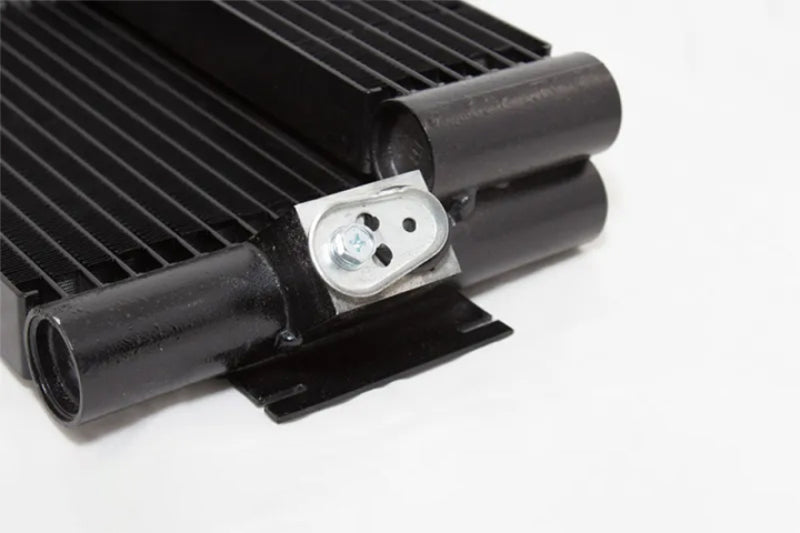

  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
  • Additional Half Quart of Oil Required for Proper Fill-up During Installation (OEM Cooler 7 Qts./CSF's Upgraded Race-Spec M2 Oil Cooler Requires 7.5 Qts.)
  • This is a Reduction from 275/280? Track Oil Temperatures (Limp Mode) When Testing with the Upgraded CSF Cooler on the Vehicle vs. the OEM Cooler
  • World's 1st and Only True "Plug-and-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine in the BMW F87 M2 (2016+)
  • Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
  • Track Tested in 103? (115 ? Heat Index) - Max. Oil Temperature Achieved 240?
  • High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
  • Secondary In-Series Backside Cooler has an Additional 6 Rows of Cooling
  • Front Full-Size Core has 17 Cooling Tubes vs. OEM 15 Tubes
  • Innovative 2-Core In-Series System

Product Description - Short

  • CSF 15-18 BMW M2 (F87) Race-Spec Oil Cooler
  • CSF Oil Cooler
  • 8104

Product Description - Long

  • BMW F87 M2 (N55) Race-Spec Oil Cooler
  • 8104

Product Description - Invoice

CSF 8104 - BMW N55 F87 M2 Oil Cooler

AAIA Part Type Description

Engine Oil Cooler
