CSF 2014+ BMW X5M (F95) / X6M (F96) / XM (G09) Charge-Air-Cooler

In stock
Regular price $2,799.00
Product INFO
  • SKU T14.747138
  • Barcode 710353083154
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • CSF originally designed the BMW S63 Charge-Air-Coolers for the F9X M5/M6. Over five hundred of these Intercoolers kits have been sold with many of them on 1000+ hp builds. Due to their popularity and success, CSF has received many requests to have a set made to fit the X5M and X6M. CSF worked with Steve Dinan's Carbahn to develop the mounting hardware needed to use these coolers. The result - a true plug-and-play system requiring no modifications to install that will take your M SUV to a whole new level.

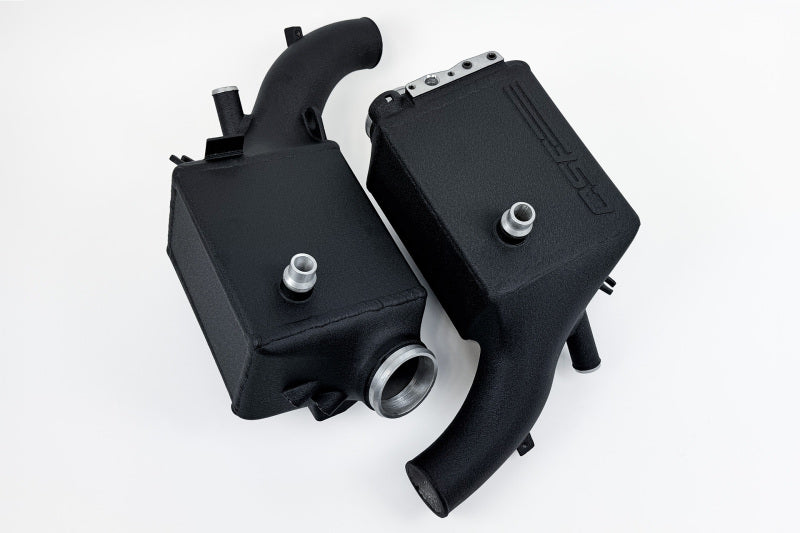

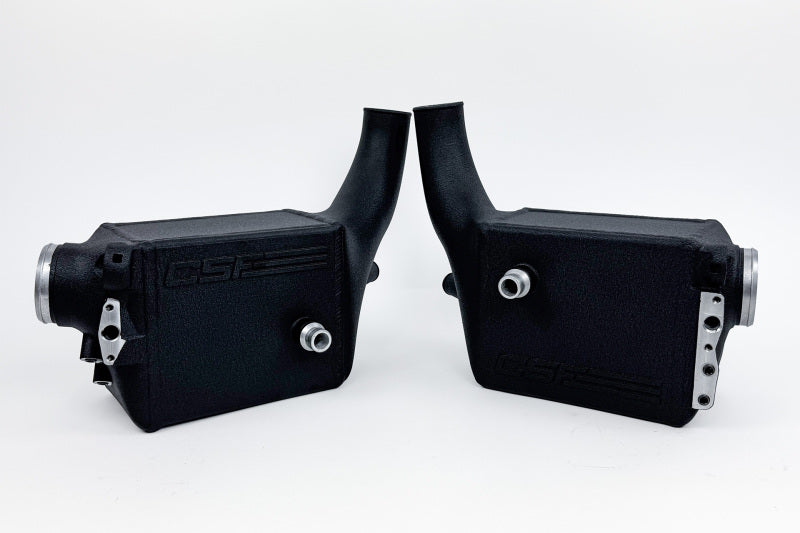

  • The weak OEM crimped-on plastic end tanks have been replaced with CSF's larger, CFD analyzed, 100% TIG-welded cast end tanks. CSF also integrated the charge pipe into the design of the top end tank. The single piece cast design removes the glued-on factory plastic charge pipes. This creates a much stronger system that can handle much higher boost pressures.
  • The CSF Charge-Air-Cooler Cores are 100% larger in volume than the factory coolers. These cores were custom designed using CFD analysis and testing to ensure optimal performance as well as perfect fitment. Both coolers come with OEM-Style "Quick Connect" water connections as well as sensor ports for fast and easy installation.

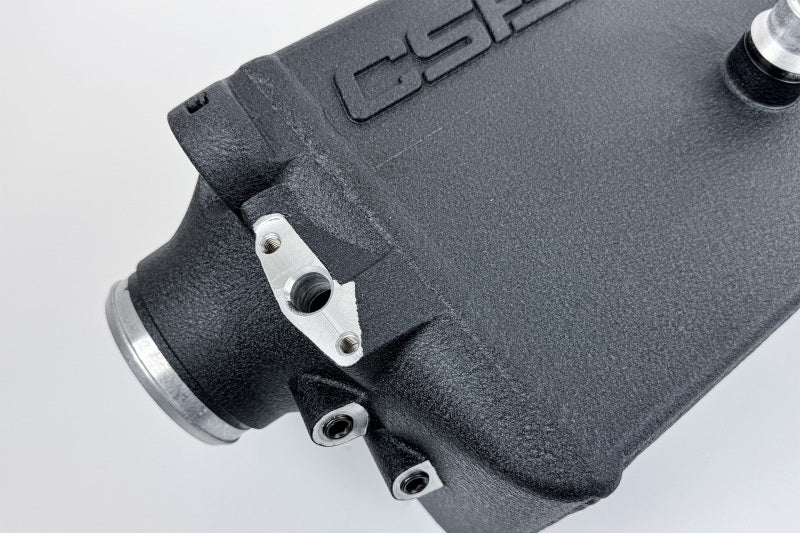

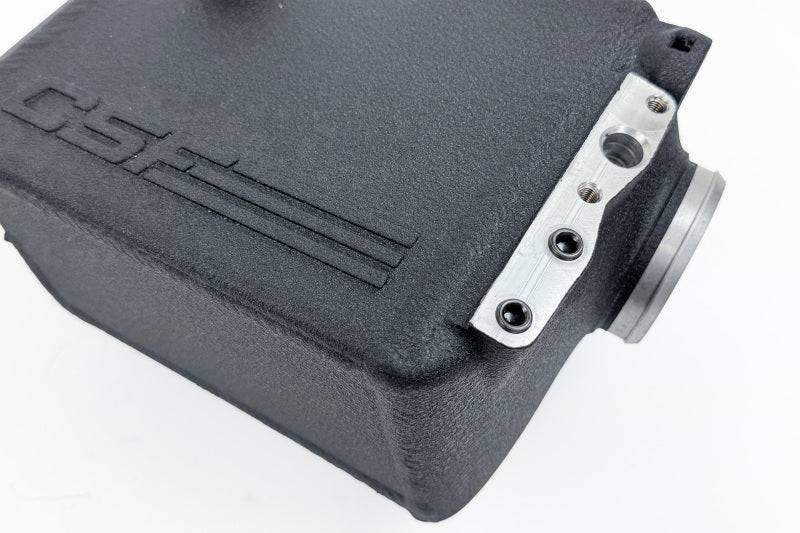

  • Integrated dual 1/8 NPT ports are located on both outlet side air tanks for quick and easy installation of aftermarket methanol/nitrous injection systems. The positioning of these ports have been carefully designed to place the injection system directly into the post-intercooled charge-air stream for maximum performance.
  • The Charge-Air-Coolers come in an OEM+ Crinkle Black Finish. In addition, custom finishes are available at an additional cost for those looking for a more unique engine bay look.

Associated Comments

The CSF #8315 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

The CSF Charge-Air-Coolers boast a nearly 100% larger core size than factory per side. This greatly increases the capacity for heat transfer from the hot charge air from your F95 X5M / F96 X6M / G09 XM's Turbos.

Features and Benefits

  • Finished with a Professional "Crinkle Black" Powder-Coated Finish (CSF #8315) - Custom Powder-Coating Available (Inquire for More Details on Lead Time and Pricing)
  • Designed with 3D Scanning and Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
  • Custom Designed CSF Liquid-To-Air Intercooler Core (CFD Analysis and Testing Completed to Ensure Optimal Performance)
  • Integrated E85/Methanol Injection Ports Built into Air Outlet End Tank (Dual 1/8 NPT Ports Per Cooler)
  • 100% Increase in Core Volume Per Each Charge Cooler Compared to the OEM Charge Air Coolers

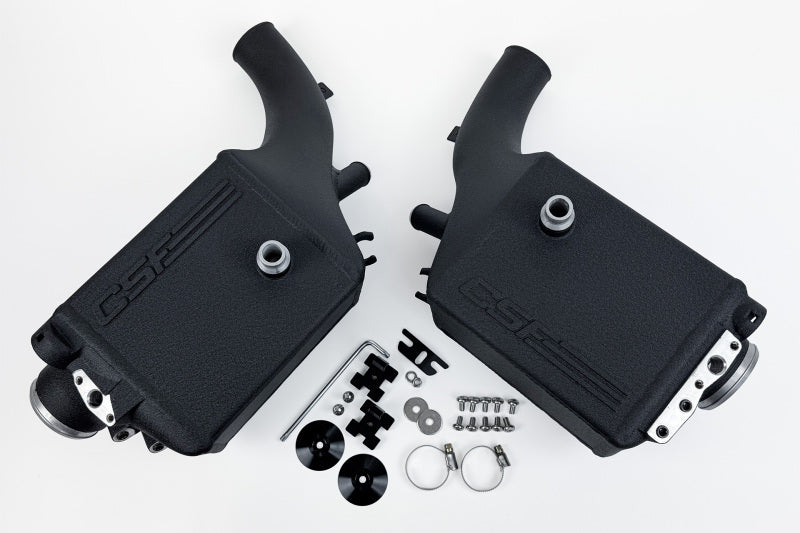

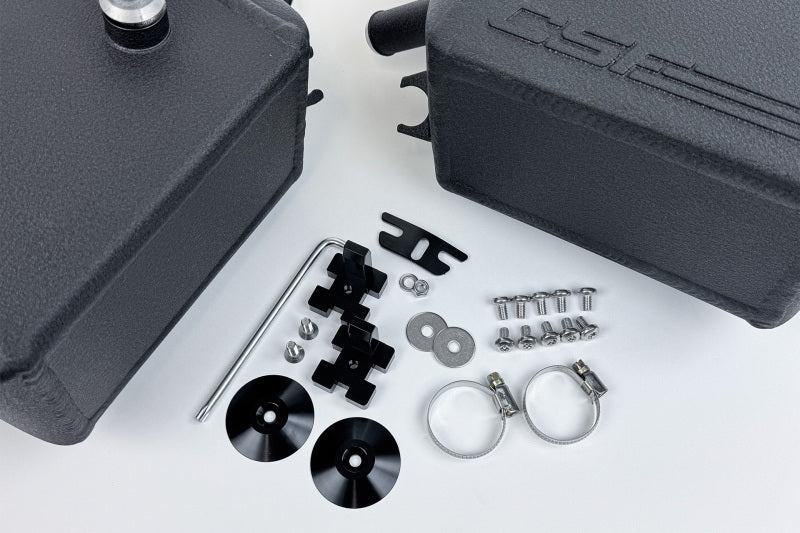

  • Sold as a Complete Set with Left and Right Charge-Air Coolers + Installation Hardware
  • Complete with OEM-Style "Quick Connect" Water Connections and Sensor Ports
  • 1-Piece Seamless Air Inlet End Tanks with Integrated Charge Pipes
  • "Drop-In Fit" Design with No Modifications Necessary
  • Significantly Reduces Intake Air Temperatures (IATs)
  • Lifetime Warranty

Product Description - Short

  • CSF 2014+ BMW X5M (F95) / X6M (F96) / XM (G09) Charge-Air-Cooler
  • CSF FI Air Cooler

Product Description - Long

BMW X5M / X6M / XM High-Performance Charge-Air-Coolers

Product Description - Invoice

CSF 8315 - X5M/X6M/XM FI Air Cooler

AAIA Part Type Description

Intercooler
