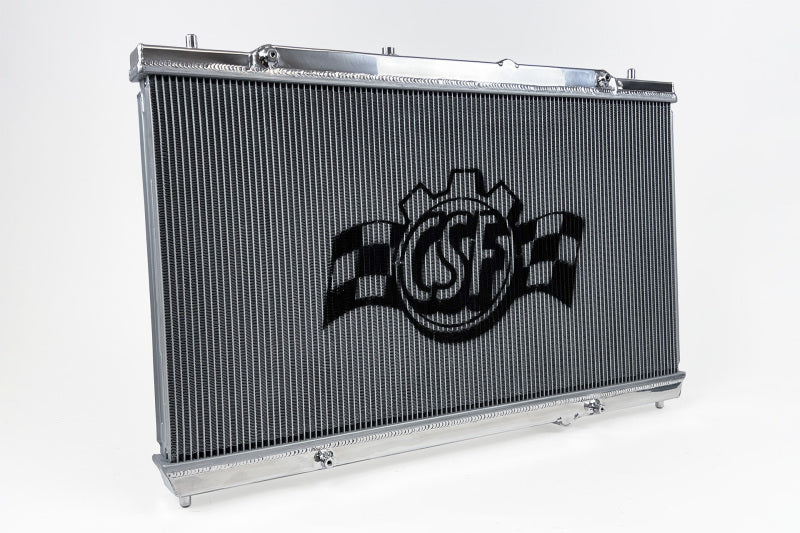

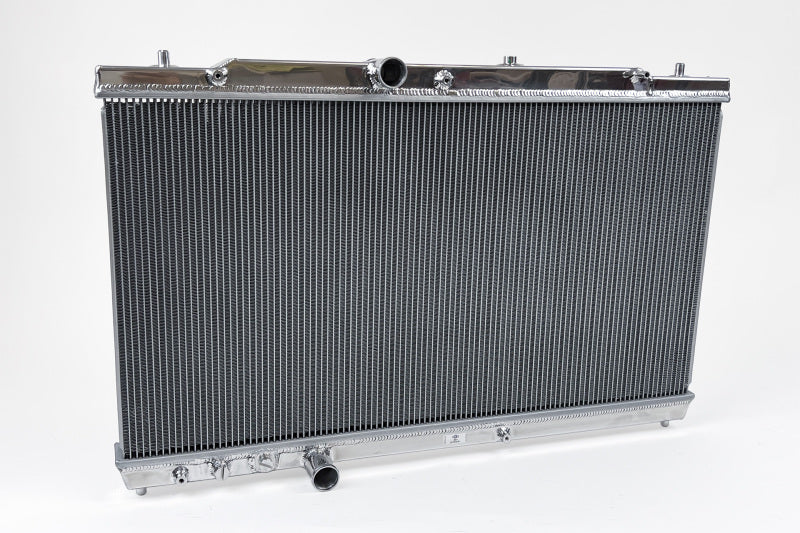

CSF 2023+ Honda Civic FL5 Type R / 2024+ Acura Integra DE5 Type S All-Aluminum Radiator

Manufacturer Part # : 7221

Market Description

• Just like the HPD Race Radiator, the CSF FL5 Civic Type R / DE5 Integra Type S Radiator features the latest 5mm fin technology. The smaller fins significantly increase the heat exchange surface area improving overall cooling efficiency. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Overall, testing has revealed that the CSF radiator decreases engine coolant temperatures by 6-8% compared to the factory radiator. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
• CSF has a long and successful track record with Honda cooling systems. This history includes making factory radiators for Honda Performance Development (HPD). Honda utilized the CSF private label HPD Race Radiator for the FK8 Civic Type R TCR and recently took delivery of a new system CSF developed for the FL5. CSF used the information and experience from building this Race Radiator to design a High-Performance version that would be available to the masses. Like the racing radiator, this new High-Performance version features CSF's latest 5mm fin cooling technology. The new fin design increases the heat transfer area of the radiator by 20-25% over other larger fin designs.

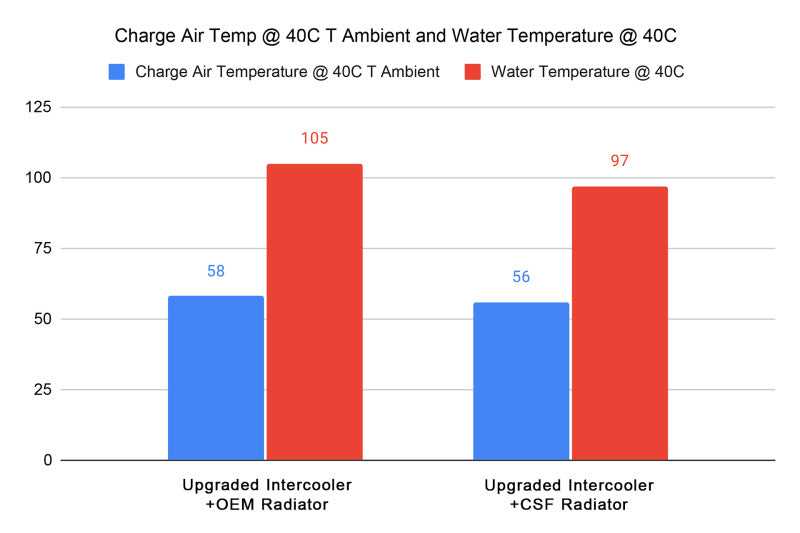

• Testing was performed on a FL5 Civic Type R tuned to 294 whp and equipped with an upgraded/larger Front Mount Intercooler. The larger front mount intercooler has been shown to raise engine coolant temperatures by 7%. This is due to the airflow restriction over the radiator. Test results show a decrease of of 8 deg C engine coolant temperature with the CSF Radiator vs OEM. As you can see, a radiator upgrade will be very important to anyone running a larger intercooler. The upgraded radiator will also be beneficial to anyone tracking their car.
• The original OE radiator from Honda is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds and hard driving. Turbo cars get hot, and the K20C1 is no exception. Anything you can do to help keep temperatures in check will improve longevity of your motor and components.

Associated Comments

The CSF #7221 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF manufactures the most advanced and efficient radiator in the industry for your FL5 CTR / DE5 Integra Type S. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Features and Benefits

• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

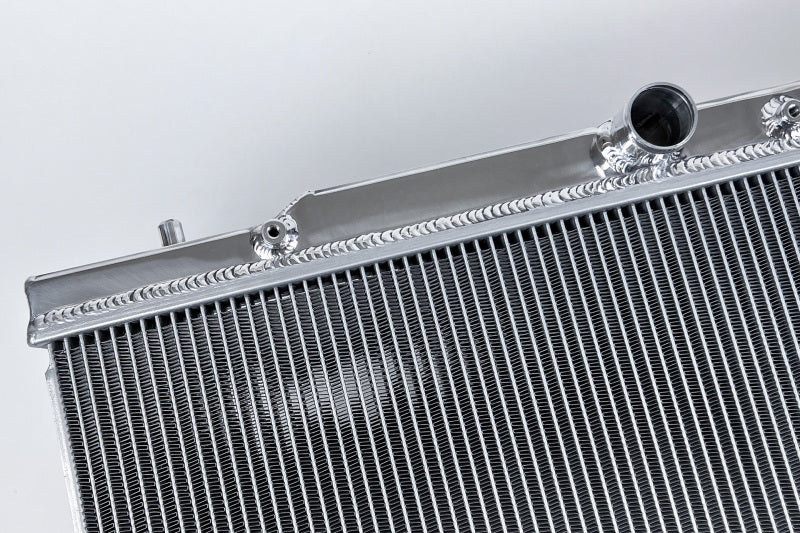

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Cooling Tubes with CSF's Exclusive B-Tube Technology

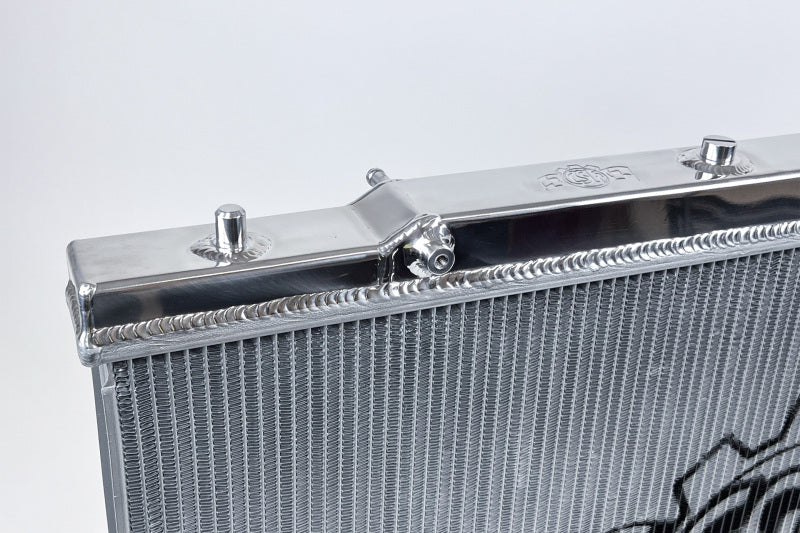

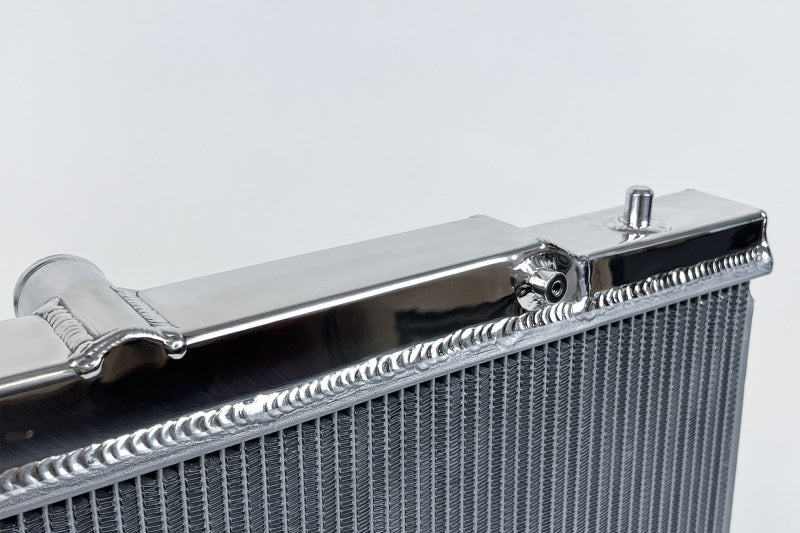

• 100% All Aluminum TIG-Welded Construction
• 2-Row, 42mm Ultra-High-Performance Core
• Individually Leak and Pressure Tested
• 1-Hour "Mirror Finish" Hand Polish
• 2-Year Limited Warranty

Product Description - Short

• CSF 2023+ Honda Civic FL5 Type R / 2024+ Acura Integra DE5 Type S All-Aluminum Radiator
• CSF Radiator

Product Description - Long

FL5 Civic Type R / DE5 Integra Type S High-Performance All-Aluminum Radiator

Product Description - Invoice

CSF 7221 - FL5 CTR/DE5 ITS Radiator

AAIA Part Type Description

Radiator
