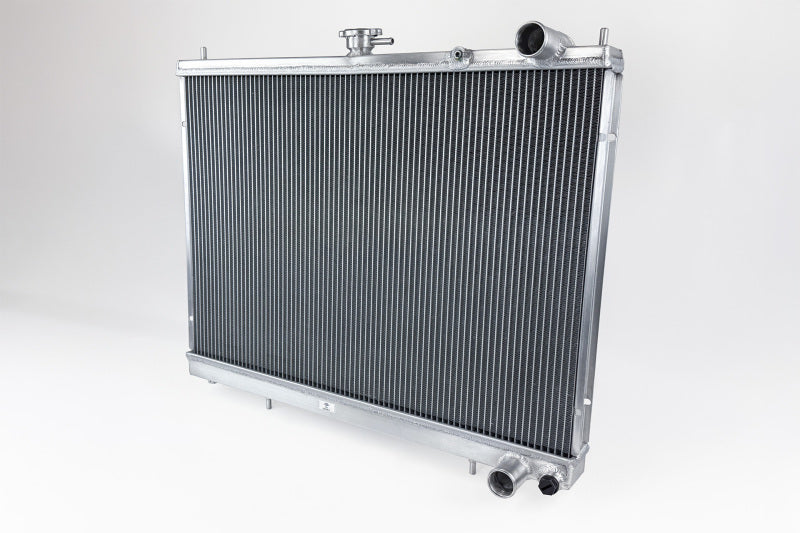

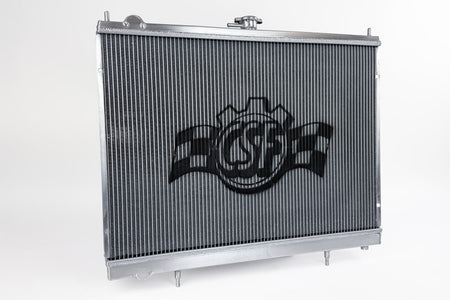

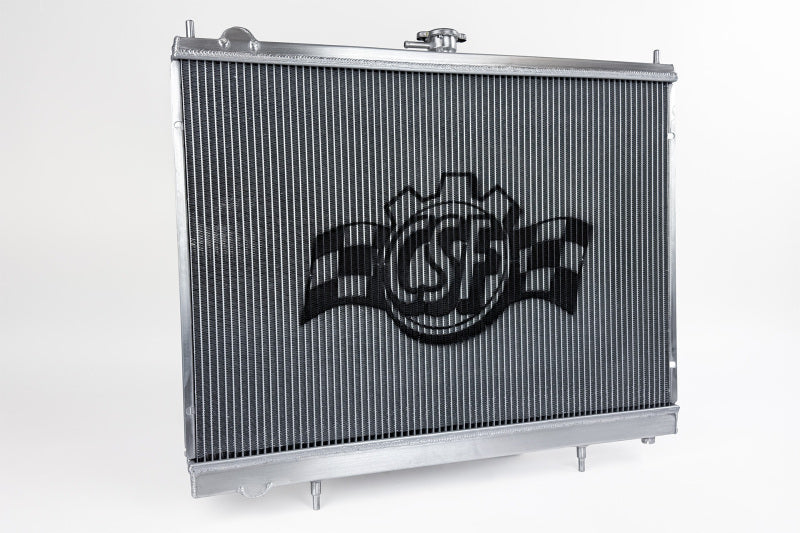

CSF 99-02 Nissan GT-R / GT R34 High-Performance All-Aluminum Radiator

Market Description

• The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from.
• The inline 6 motors found in the R34 Skylines are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26, you probably don't worry too much about engine reliability. The GT-R's RB26 is well known for making big power and being reliable while doing it. However, power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check on stock setups, it's always better to have more protection, especially as you're making big power upgrades.

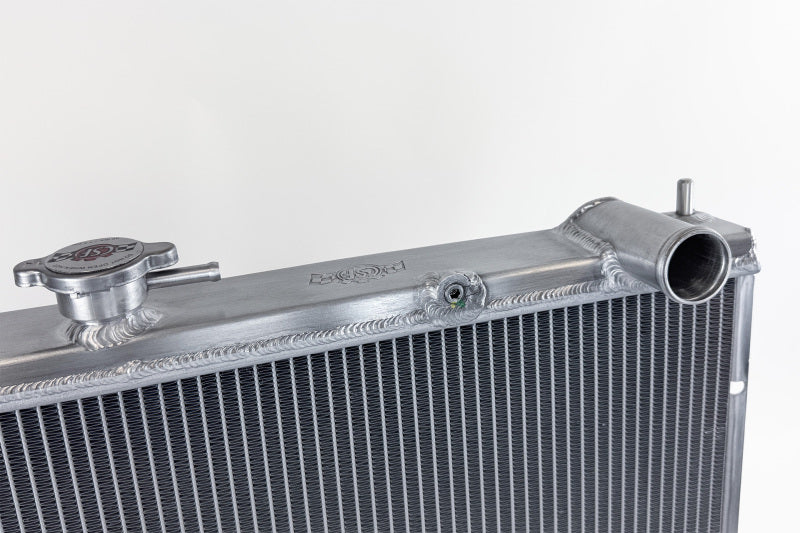

• Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot.

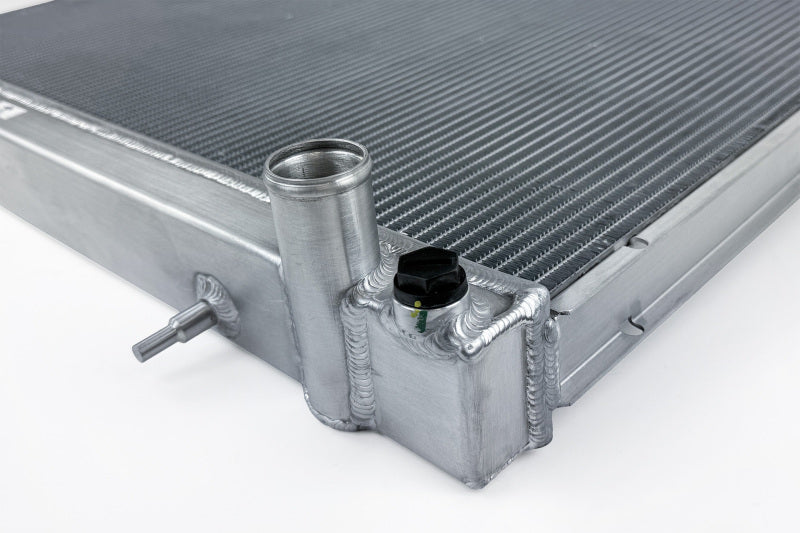

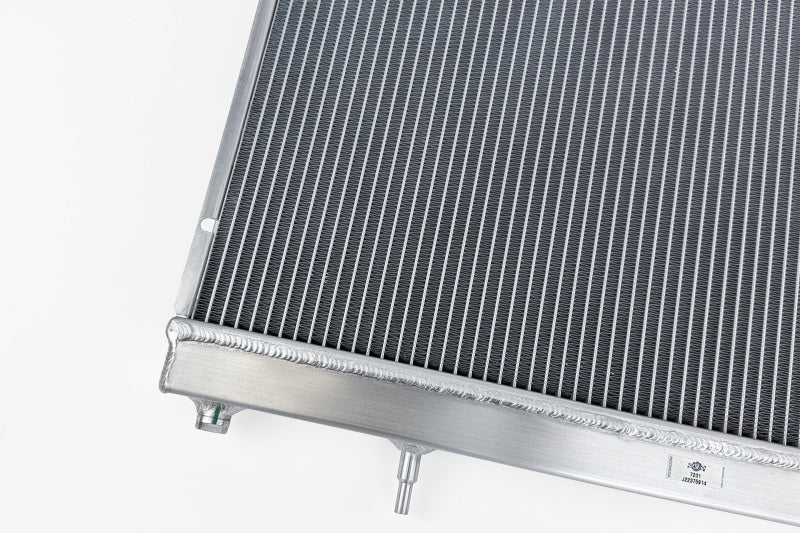

• Each end tank is constructed from high-grade aluminum for strength and durability. The TIG-Welded construction further increases the overall strength. Each top end tank includes a pre-plugged 1/8th NPT and each bottom end tank includes M16x1.5P ports for temperature sensors. The CSF radiators mount in the factory location and require no modifications or cutting.
• Fitment Note: The CSF #7231/7231B are based off the early model GT-R Radiator Design (Slim Tank). The radiators fit both the early and late model R34 GT-Rs, but the fan shroud will require different mounting hardware for the late models.

Associated Comments

The CSF #7231 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF manufactures the most advanced and efficient radiator in the industry for your R34 Skyline. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Features and Benefits

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• M16 x 1.5P temperature sensor port with pre-installed plug
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• 100% All Aluminum TIG-Welded Construction
• 2-Row - 42mm Ultra-High-Performance Core
• OE Location Fan Shroud Mounting Points
• Individually Leak and Pressure Tested
• Hand Brushed Satin Finish
• 2-Year Limited Warranty

Product Description - Short

• CSF 99-02 Nissan GT-R / GT R34 High-Performance All-Aluminum Radiator
• CSF Radiator

Product Description - Long

R34 Skyline GT-R/GTS High-Performance All-Aluminum Radiator - Silver

Product Description - Invoice

CSF 7231 - R34 GTR/GTS Radiator (SLV)

AAIA Part Type Description

Radiator
