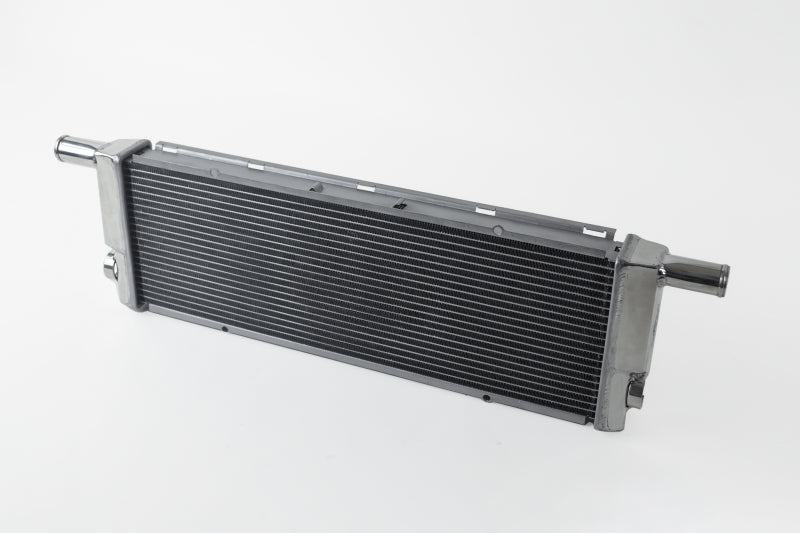

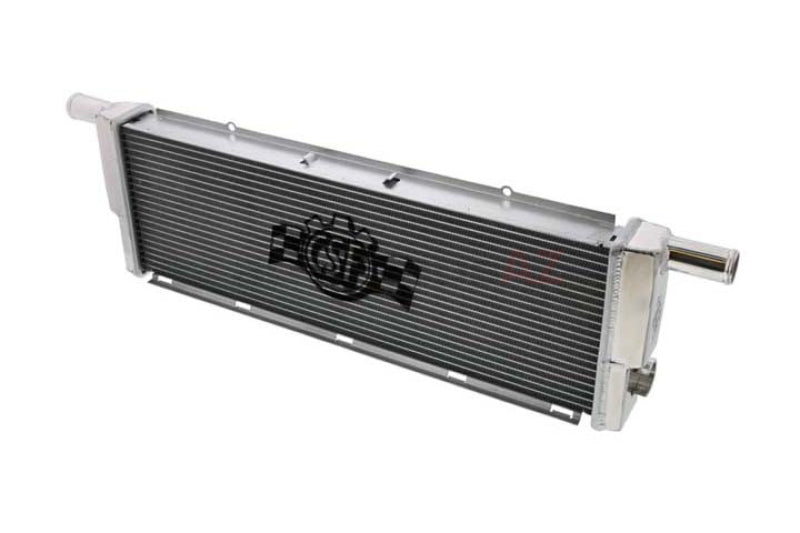

CSF Porsche 911 Turbo/GT3 RS/GT4 (991) Center Radiator

Out of stock
Regular price $599.00
Product INFO
  • SKU T14.205281
  • Barcode 710353070680
Out of stock

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

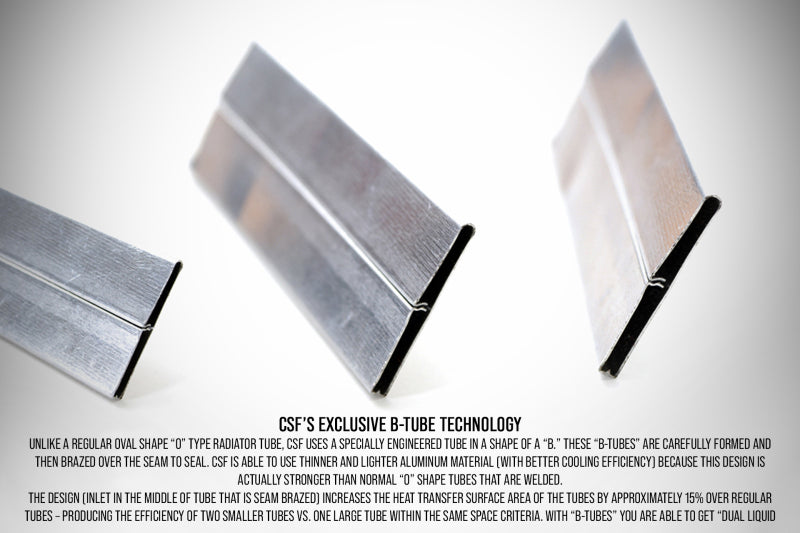

  • CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 911 Turbo running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
  • The CSF 911 Turbo radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Associated Comments

The CSF #7068 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF manufactures the most advanced and efficient radiator in the industry for your 911 Turbo. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Features and Benefits

  • High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
  • 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
  • Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation

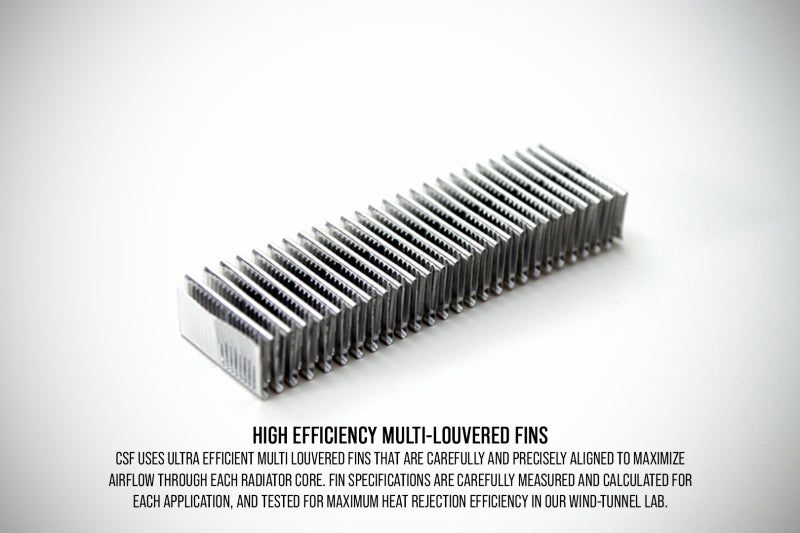

  • 6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • All-Aluminum Design with 100% TIG-Welded End Tanks
  • OEM-Style Machined Inlet/Outlet Connections
  • Accepts OEM AC Condenser and Fan Shroud
  • Individually Leak and Pressure Tested
  • Smooth Satin Finish

Product Description - Long

Porsche 991 Turbo / GT3/RS/CUP / 981 Spyder / GT4 (Center) All-Aluminum Radiator

Product Description - Short

  • CSF Porsche 911 Turbo/GT3 RS/GT4 (991) Center Radiator
  • CSF Radiator

Product Description - Invoice

CSF 7068 - 991 / 981 Radiator (Center)

AAIA Part Type Description

Radiator
