CSF

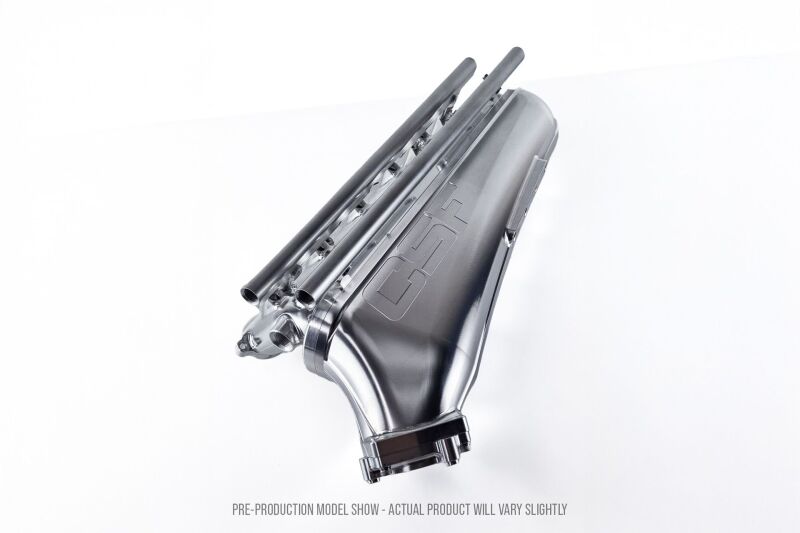

CSF S58 No Limit Billet Air-To-Air Competition Manifold

In stock
Regular price $3,995.00
Product INFO
  • Vendor CSF
  • SKU T14.1026779
  • Barcode 8402
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 8402


Market Description

Track proven and tested in the extreme Texas heat with ambient temperature consistently over 90°F (32°C) at TX2K by three S58 vehicles. All three posted times of 7-seconds, including new world record holder of the "Fastest BMW in the World" Tom Wrigley Performance in his G80 M3 race car (7.67 seconds at 183mph). The street driven GTP Motorsport G87 xDrive M2 also set the M2 World Record with a time of 7.84 seconds at 178mph.

Associated Comments

The CSF #8402 Cooling product is designed to be a "Custom Fit" application. The product installion may require modifications. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF's new manifold design, which removes the charge cooler from the intake manifold, resolves the core size limitation of all drop-in fit options available on the market.

Features and Benefits

  • Includes CSF's proprietary Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
  • S58 version comes with billet oil filter housing adapter to make filter accessible without removing the manifold
  • Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
  • Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
  • Comes Finished in Raw Billet Aluminum - Custom Finishes available (Powder Coat, Cerakote, or Anodizing)
  • Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
  • High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
  • CSF recommends using VTT-FAB Extension Harnesses - B58/S58 to S55 TB Conversion
  • Plenum inlet angle optimally designed for easier intercooler pipe routing
  • Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)
  • Includes Hardware and Installation Kit with picture diagrams and BOM
  • One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
  • Top Feed Port Injection - capable of running 6 or 12 injectors.
  • Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
  • Individual Runner Nitrous / Methanol adapter kit - CSF #8403
  • 2nd Fuel Rail (for 12 Injector setup) - CSF #8404
  • Optional Add-Ons (not included):
  • 6 Injector Block Off Plugs
  • Internal Velocity Stacks
  • Includes:

Product Description - Short

  • CSF S58 No Limit Billet Air-To-Air Competition Manifold
  • CSF Intake Manifold

Product Description - Long

S58 "No Limit" Billet Air-to-Air Competition Manifold

Product Description - Invoice

CSF 8402 - S58 Intake Manifold

AAIA Part Type Description

Engine Intake Manifold
