CSF

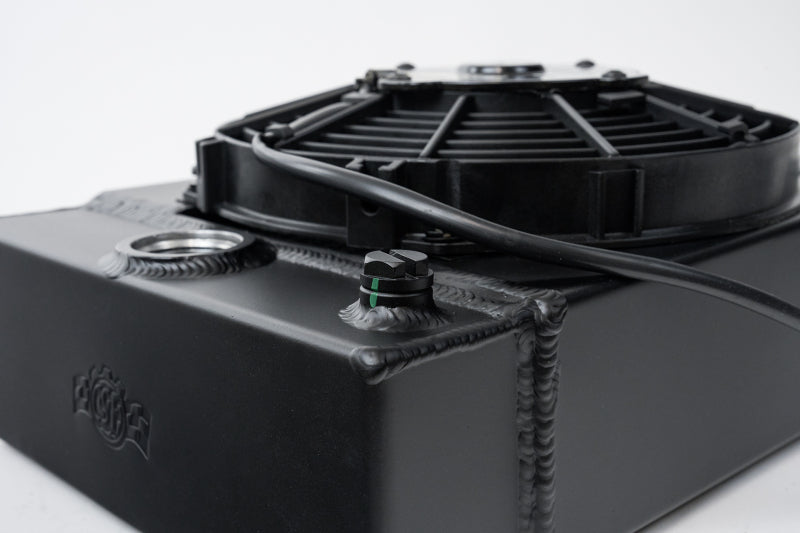

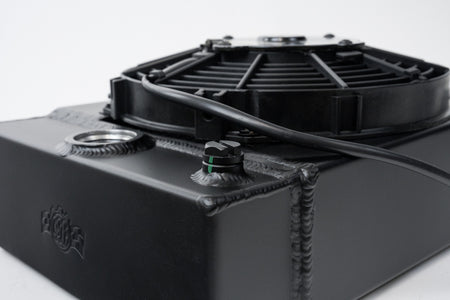

CSF Universal Drag Race / Tuck Radiator w/9in Spal Fan - 10.5in H x 10in L x 3.6in W - Black

In stock
Regular price $549.00
Product INFO
  • Vendor CSF
  • SKU T14.521465
  • Barcode 7065B
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 7065B


Market Description

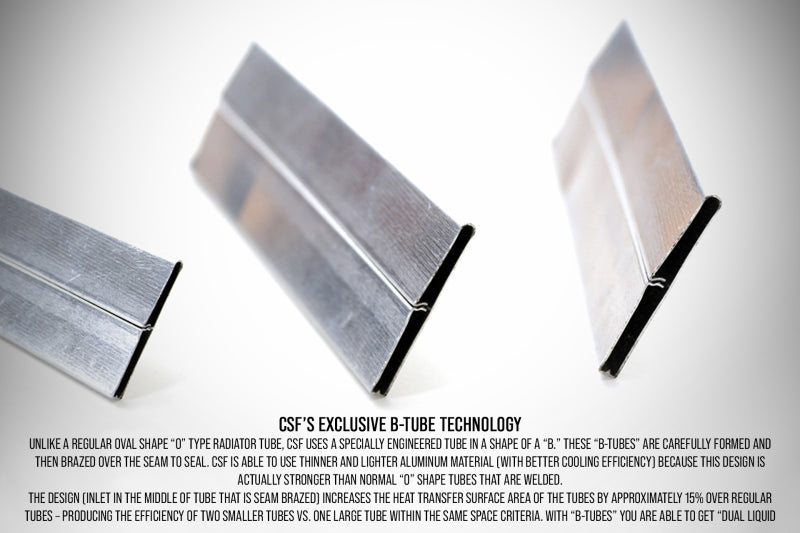

After more than 9 months of R&D, and input from some of the best import drag race builders in N. America, CSF has brought to the sport compact market the most advanced drag race cooling system ever developed. Introducing the KING Cooler. For the longest time, buying a drag-race radiator was a tasking process. End users had to custom order the unit based on their connection and mounting specifications. Typically, this process would take 2-4 weeks and be rather expensive. CSF has eliminated this hassle by making sure that these units are in stock in both of CSF's coastal warehouses and on the shelves of distributors and supporting dealers around the world. Universal Fit Allows for Mounting in Multiple Different Configurations. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval-shaped "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

Associated Comments

The CSF #7065B is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

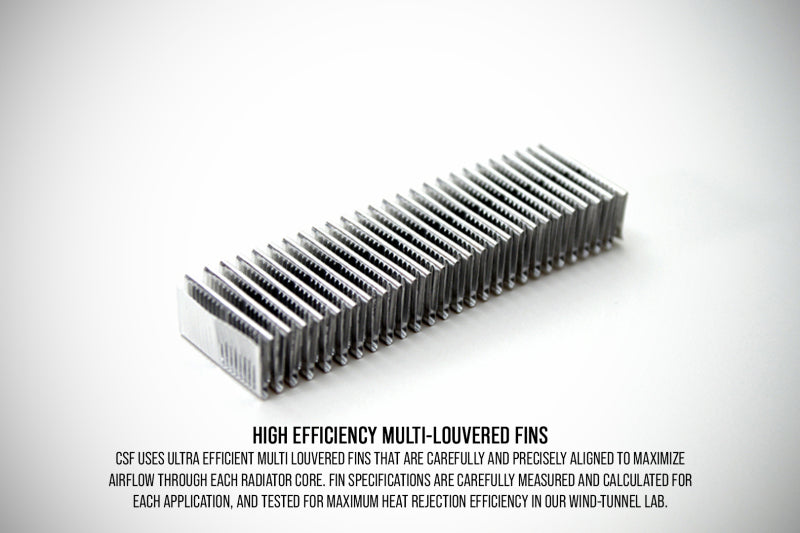

CSF manufactures the most advanced and efficient radiator in the industry for your Vehicle. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Features and Benefits

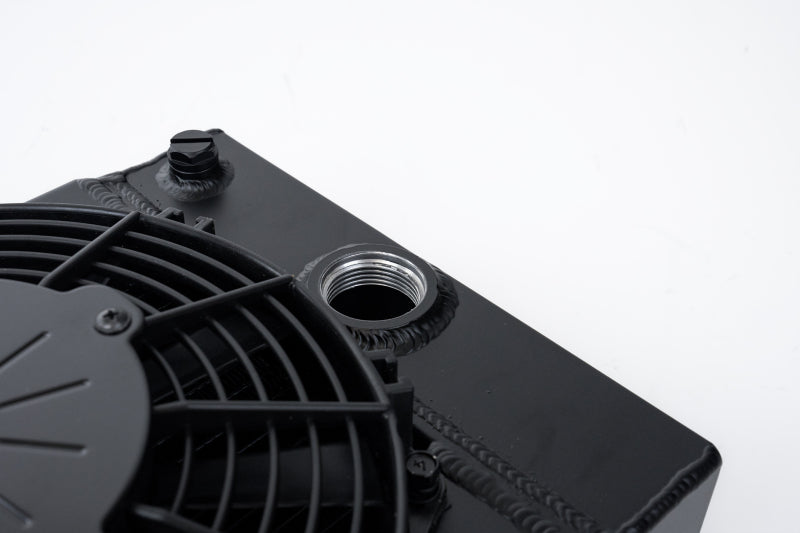

  • Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
  • Overall dimensions: 14.5H x 10.0L x 3.6W (5.65W with a fan installed)
  • Weight: 8.0 lbs (3.6 kg) - Radiator, Fan, and 2 Fittings Installed
  • 3.5-inch thick 2-row core with CSF's exclusive B-tube technology

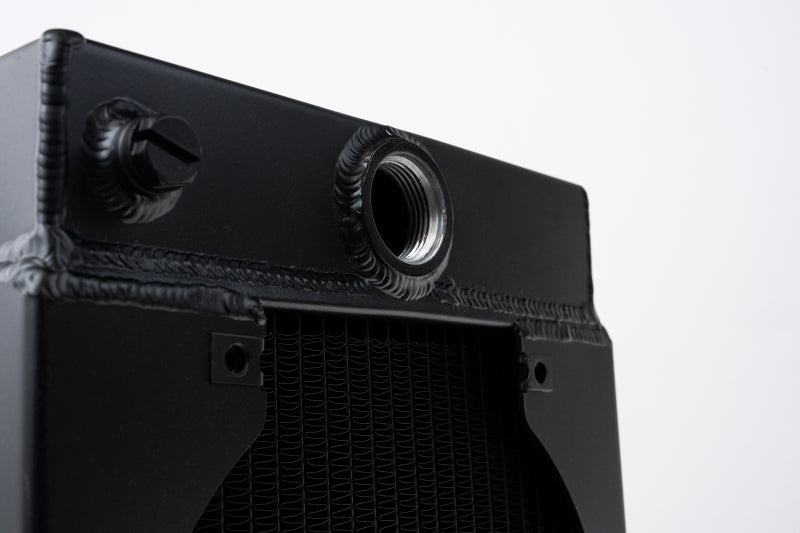

  • Threaded Bung size and thread pitch: 1 5/16" x 12G
  • Drain Plug Bung size and thread pitch: M12 x 1.5p
  • Fluid capacity - 2.95 liters (0.78 gal)
  • Black Finish for High-End Stealth Look

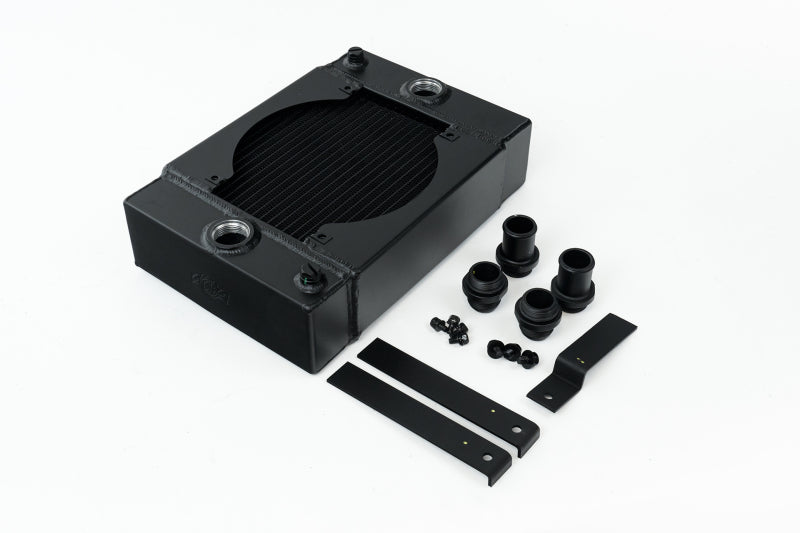

  • Universal mounting brackets included

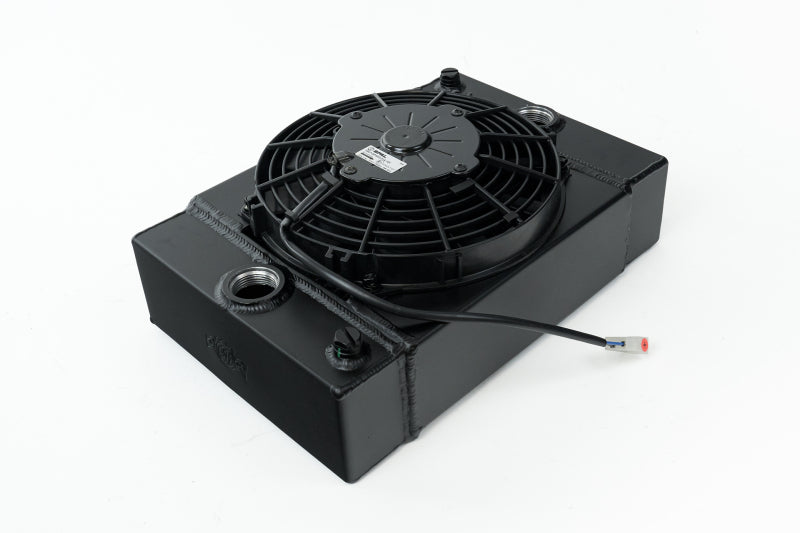

  • Includes 9-inch SPAL fan

Product Description - Short

  • CSF Universal Drag Race / Tuck Radiator w/9in Spal Fan - 10.5in H x 10in L x 3.6in W - Black
  • CSF Radiator

Product Description - Long

The KING Cooler - Ultimate Drag Race Radiator w/ SPAL Fan & Mounting Kit - Black

Product Description - Invoice

CSF 7065B - Univ. Radiator (w/Fan - BLK)

AAIA Part Type Description

Radiator
