CSF Universal Dual-Pass Internal/External Oil Cooler - 22.0in L x 5.0in H x 2.25in W

In stock
Regular price $369.00
Product INFO
  • SKU T14.205320
  • Barcode 710353080665
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
  • CSF's 1st universal-style oil cooler, dubbed the "BOSS" Cooler, has been on the market since 2016. Since CSF focuses mostly on direct fit applications, this oil cooler may still be unknown to many. However, for many industry insiders and race-teams that are close to CSF, this oil cooler has been the go-to option. CSF is very excited to offer our new BOSS cooler to the high performance and resto-mod market! A new high performance oil cooler that can be used both internally as well as externally on any vehicle with its universal design configuration. Finished in a special thermal rejection powder coating paint process, and topped off with our throw-back logo to complete the old school vibe. The Heavy-Duty Bar & Plate construction gives the cooler maximum durability when mounted externally. Its Dual-Pass turbulated core offers the highest level of cooling performance and can be mounted in any orientation.

Associated Comments

The CSF #8066 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Vehicle hard on the street or track, a CSF Oil Cooler is the obvious choice.

Features and Benefits

  • Heavy duty bar/plate construction for durability & strength (Ideal for external placement)
  • Unique semi-gloss / matte black powder coat finish using thermal rejecting powder
  • Turbulated 8-row core w/ high density multi-louvered fin pitch
  • Flip-able universal design for inlet/outlet on either side
  • 2 M8 Mounting Bosses (w/ steel helicoil)
  • -10 AN Male inlet/outlet connections

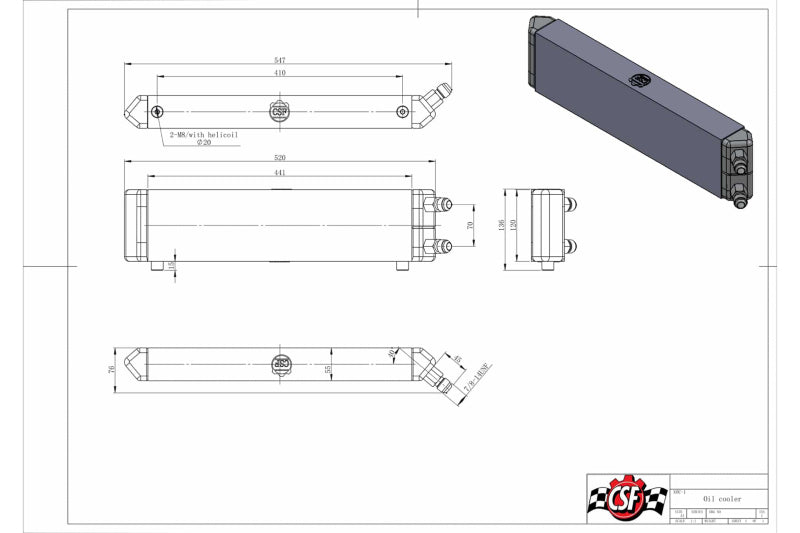

  • Dimensions: 22'L x 5'H x 2.25'W
  • Dual-pass design

Product Description - Short

  • CSF Universal Dual-Pass Internal/External Oil Cooler - 22.0in L x 5.0in H x 2.25in W
  • CSF Oil Cooler

Product Description - Long

Universal Dual-Pass internal/external Oil Cooler - 22.0in L x 5.0in H x 2.25in W

Product Description - Invoice

CSF 8066 - Universal Oil Cooler

AAIA Part Type Description

Engine Oil Cooler
