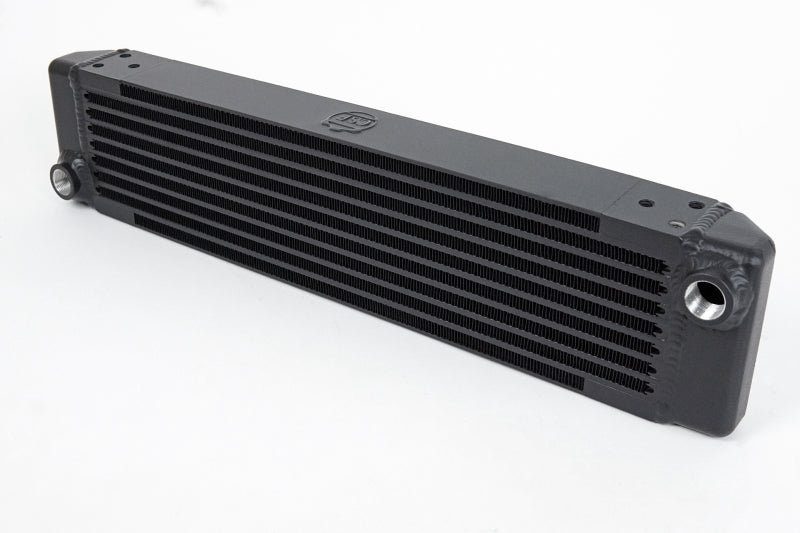

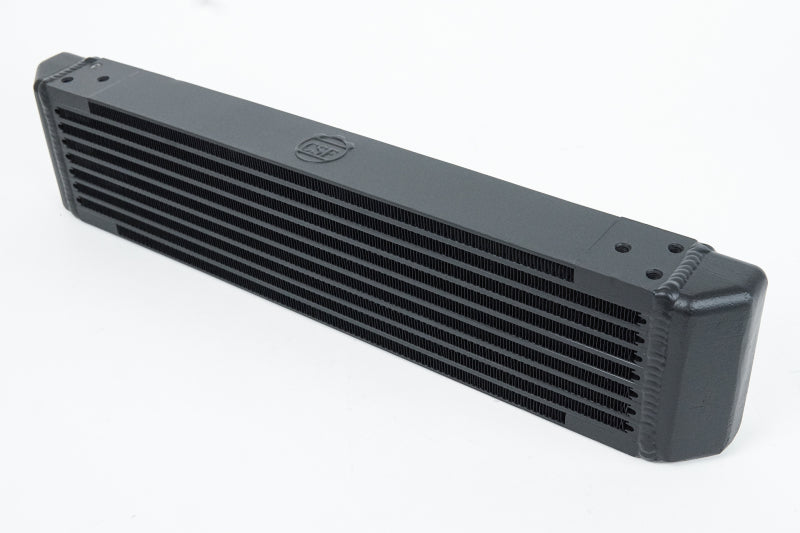

CSF Universal Single-Pass Oil Cooler - M22 x 1.5 Connections 22x4.75x2.16

Out of stock
No reviews
$579.00
Product INFO
  • SKU T14.480933
  • Barcode 710353082027
Out of stock

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Description Shipping information Reviews

Market Description

  • The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
  • This Single-Pass Oil Cooler can be mounted horizontally, vertically, as well as parallel to the ground (provided that the oil cooler has proper air-flow). The CSF #8202 Oil Cooler has custom end tanks with a 45' front angle, allowing it to fit flush inside '73-style RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling. In universal applications these oil coolers are commonly utilized for engine oil, transmission oil, power-steering fluid, and differential fluid, plus can be used as a water heat exchanger.

Product Description - Extended

CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Universal / 73' Porsche 911 RSR-Style Bumper hard on the street or track, a CSF is the obvious choice.

Associated Comments

The CSF #8202 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Long

Universal Single-Pass Oil Cooler / RSR Porsche / M22 x 1.5 / 22L x 4.75H x 2.16W

Product Description - Short

  • CSF Universal Single-Pass Oil Cooler - M22 x 1.5 Connections 22x4.75x2.16
  • CSF Oil Cooler

Features and Benefits

  • Satin Black Finish for Extreme Protection Against Corrosion and Debris
  • "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
  • High Efficiency & Rugged Durability Bar/Plate Design
  • Direct-Fit for Porsche '73 RSR Style Front Bumper

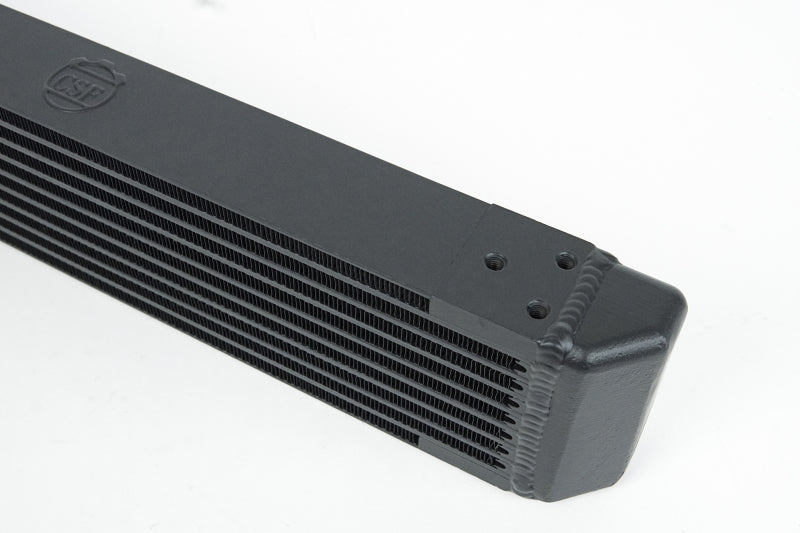

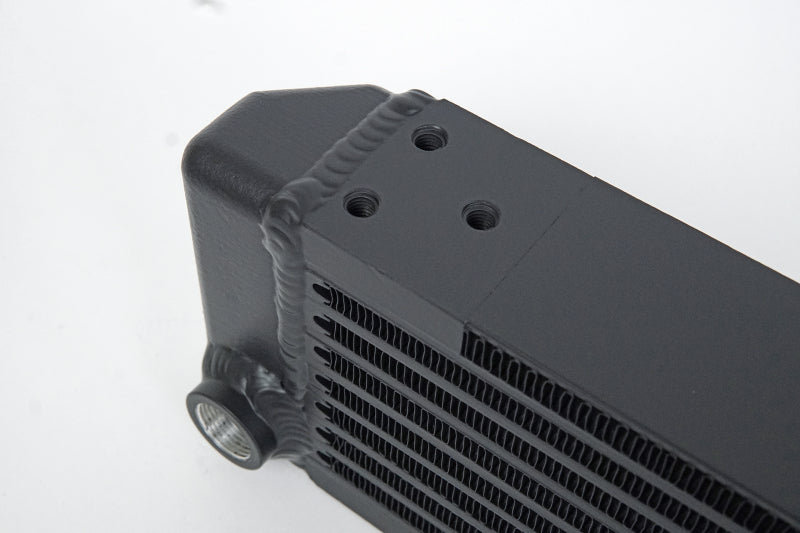

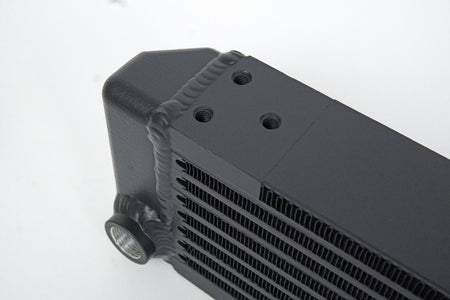

  • Triangular Flush Mounting Holes (M8 x 1.25)
  • Optimized to Also Accept AN-16 Connections
  • Core Surface: 18.9" L x 4.72" H x 2.25" W
  • Overall: 22" L x 4.75" H x 2.25" W
  • M22 x 1.5 Inlet/Outlet Connections
  • Internal Radius for Maximum Flow
  • Pressure Tested at 120psi
  • Single-Pass Oil Cooler

Product Description - Invoice

CSF 8202 - Universal Oil Cooler

AAIA Part Type Description

Engine Oil Cooler
