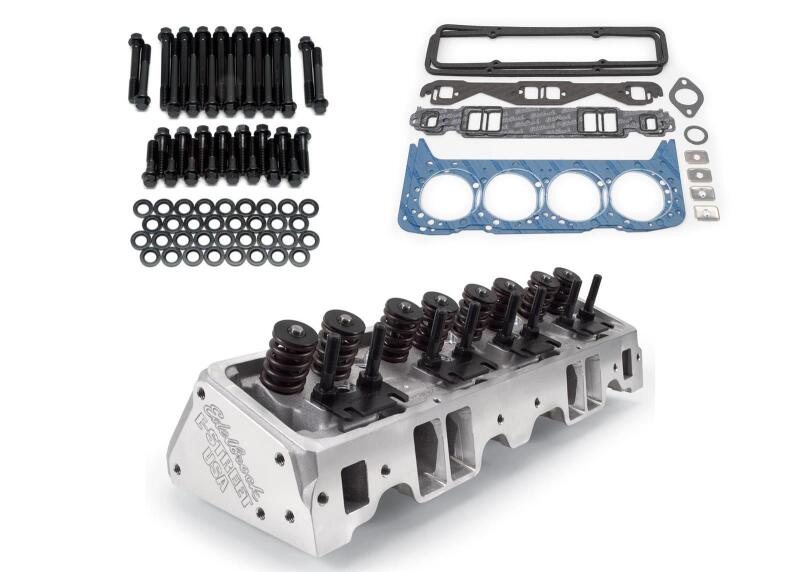

Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

Pre-Order
Regular price $1,791.95
Product INFO
  • Vendor Edelbrock
  • SKU T14.1030600
  • Barcode 2240
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 2240


Market Description

  • Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles.
  • This Edelbrock cylinder head kit part #2240 is designed to include everything needed to successfully install a set of Edelbrock heads without having to hunt down the correct components. This will save the customer time and money and will give peace of mind knowing the correct items were chosen by our own Edelbrock Technical Staff.

Key Search Words

Edelbrock; Performer; RPM; Camshaft; Engine; V8; Cam; Rollin Thunder; 2262; 454-502; Gen VI; 1996-Later; Chevy

Product Description - Short

  • Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit
  • POWER PKG

Product Description - Long

  • E-Street Cylinder Heads SB Chevy 262-400, Hydraulic Flat Tappet With Install kit
  • E-Street Cylinder Head

Product Description - Extended

  • Edelbrock Complete Small Block Chevy E-Street Cylinder Heads with Install kit
  • CYL HEAD SBC E-STREET WITH INSTALLATION KIT COMPLETE

Application Summary

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Label Description

  • E-Street Cylinder Head #2240 SB Chevy 262-400, Hydraulic Flat Tappet
  • E-Street Cylinder Head #2240 SB Chevy 262-400; Hydraulic Flat Tappet

Product Description - Invoice

Edelbrock SBC Cylinder Head

AAIA Part Type Description

Engine Cylinder Head

Shipping Restrictions

{ eo : 3in.}

Product Description - Abbreviated

Cyl. Head
