Edelbrock Manifold Perf RPM for GM LS3 Carbureted w/ Timing Control Module
Regular price
$1,070.95
Product INFO
- Vendor Edelbrock
- SKU T14.127564
Manufacturer Part # : 71196
Market Description

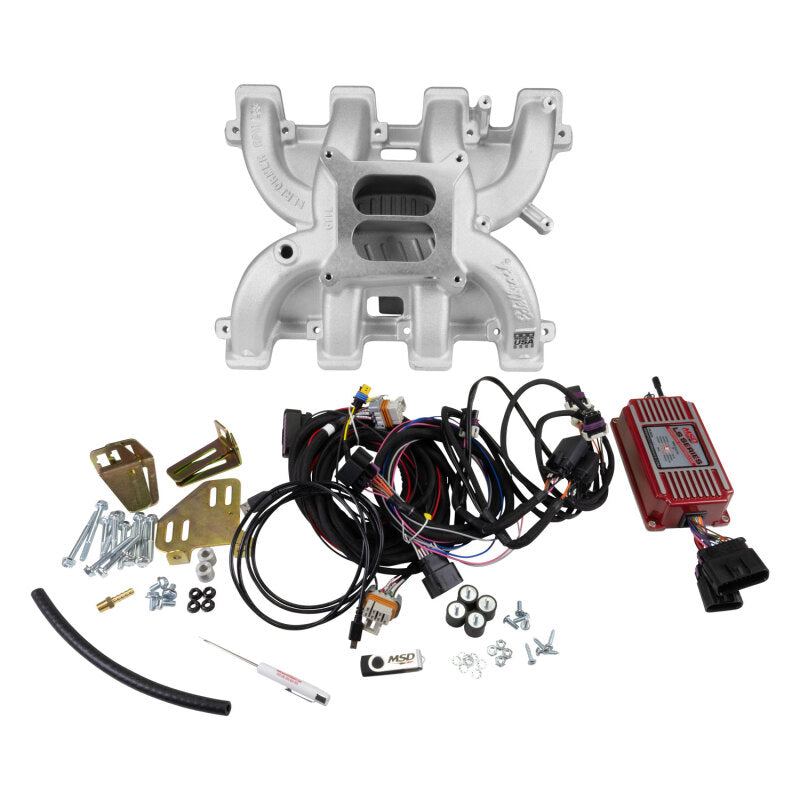

- Edelbrock part #71196 Performer RPM LS3 intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Performer RPM LS3 manifold is ideal for anybody looking to build a carbureted LS3 or LS2 engine with an operating range between 1,500 - 6,500 rpm. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve. It features a high-rise dual-plane design optimized for square-bore carburetors. This manifold kit includes an MSD Ignition Timing Control Module #6014. The ignition module has an internal MAP sensor, and works with either 24x (Gen II) or 58x (Gen IV) OE sensors to fire the Coil-on-Plug ignition system. A rotary dial offers a choice of six timing curves. More extensive programming of rev limits, nitrous retard etc. available via laptop connection. A special throttle and trans bracket that works with 700R-4, 200-4R and Turbo 350 transmissions is also included, making this an easy retro-fit into any muscle car or street rod application. Uses GM individual o-ring gaskets PN 19256623. Manifold hold down bolts included. For LS cathedral port (LS1) applications see PN 7118.
- Edelbrock part #71196 Performer RPM LS3 intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Performer RPM LS3 manifold is ideal for anybody looking to build a carbureted LS3 or LS2 engine with an operating range between 1,500 - 6,500 rpm. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve. It features a high-rise dual-plane design combined with a plenum that has been optimized for square-bore carburetors. This manifold includes an MSD Ignition Timing Control Module #6012, including passages for routing the coil wire harness, for a clean look. A special throttle and trans bracket that works with 700R-4, 200-4R and Turbo 350 transmissions is also included, making this an easy retro-fit into any muscle car, street rod or marine application.
Application Summary
Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37
Key Search Words
7121; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin
Product Description - Extended
- Edelbrock Performer RPM LS3 Intake Manifold With Timing Control Module for Gen IV LS
- MANIFOLD; CHEV LS3; RECT PORT; W/TIMING CONTROL MOD; PERFORMER RPM
Label Description
Performer RPM Small Block Chevy LS3 Intake Manifold with Timing Control Module
Product Description - Short
- Edelbrock Manifold Perf RPM for GM LS3 Carbureted w/ Timing Control Module
- MANIFOLD
Product Description - Invoice
- Perf RPM LS3 W/ Timing Control Module
- Perf RPM LS3 W/Timing Control Module
Product Description - Long
Performer RPM LS3 Intake Manifold
AAIA Part Type Description
Engine Intake Manifold
Features and Benefits
Lightweight Casting
Product Description - Abbreviated
Intake Mnfld
