Edelbrock Pro Flo 4 Fuel Injection Kit Seq Port SBC 1986&Earlier 550 Max HP 29 LbHr Injectors Satin

Manufacturer Part # : 35760

Market Description

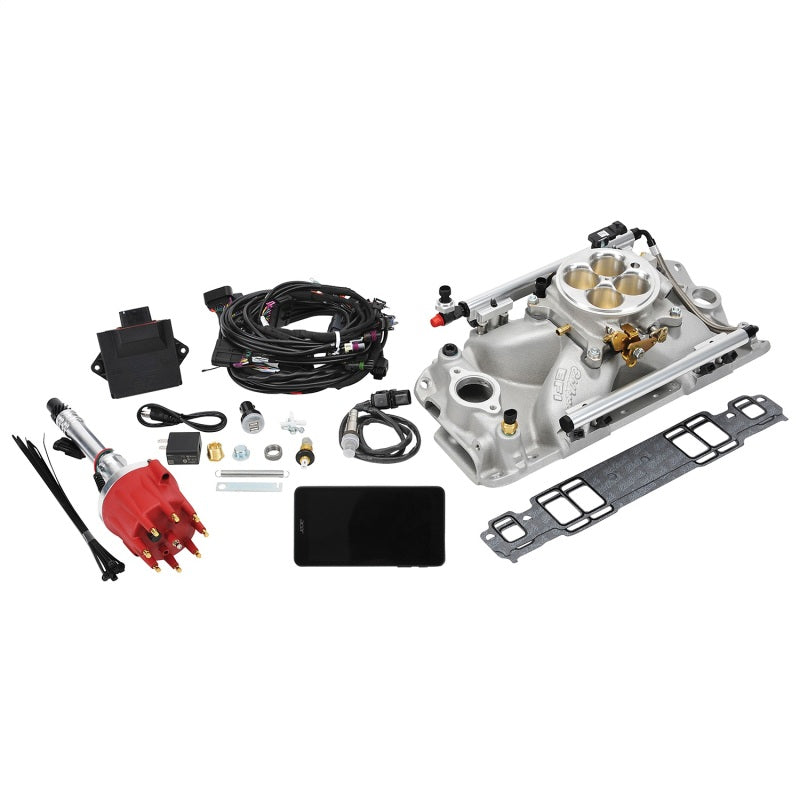

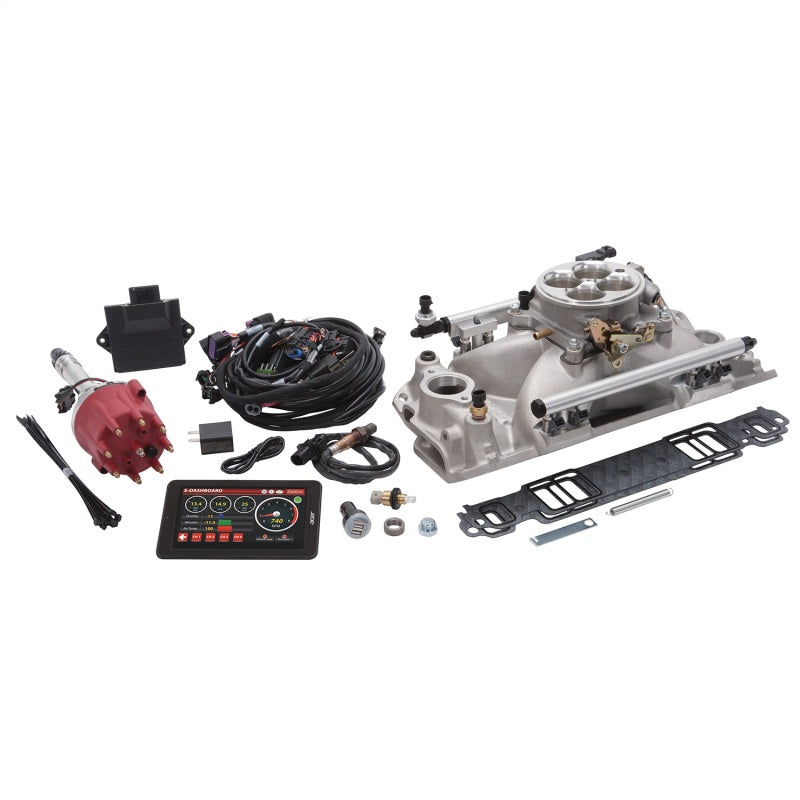

• The Edelbrock part #35760 Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals from your Android smart phone or tablet.Pro-Flo 4 does not require laptop tuning.
• The Edelbrock Pro-Flo 4 EFI Kit #35760 for 1986 & Earlier Small-Block Chevy engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

Product Description - Extended

• Edelbrock Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines. The EFI System comes with a 4150-Style satin finish single plane intake manifold & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure.
• PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT SBC 1986/EARLIER 450 HP 29 LbHr INJECTORS

Key Search Words

Edelbrock; EFI; Fitting;-6 AN; Fuel Pressure Regulator; Return line fitting; Pro-Flo; Pro-Flo 2; Pro-Flo 3; Pro-Flo 4; Pro-Flo XT; Fuel System

Application Summary

Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Product Description - Short

• Edelbrock Pro Flo 4 Fuel Injection Kit Seq Port SBC 1986&Earlier 550 Max HP 29 LbHr Injectors Satin
• FUEL INJECTION

Label Description

• Pro-Flo 4 EFI Traditional 4150-Style Kit #35760 1986 & Earlier Chevy Small-Block
• Pro-Flo 4 EFI Traditional 4150-Style Kit #35760 For 1986 Earlier Chevy SB

Features and Benefits

New ECU Preloaded w/80 Dyno-Tuned Calibrations

Product Description - Invoice

Edelbrock Pro-Flo 4 EFI System SBC

Product Description - Long

Pro-Flo 4 Fuel Injection Kit

AAIA Part Type Description

Fuel Injection System

Shipping Restrictions

{ eo : 7in.}

Product Description - Abbreviated

EFI System
