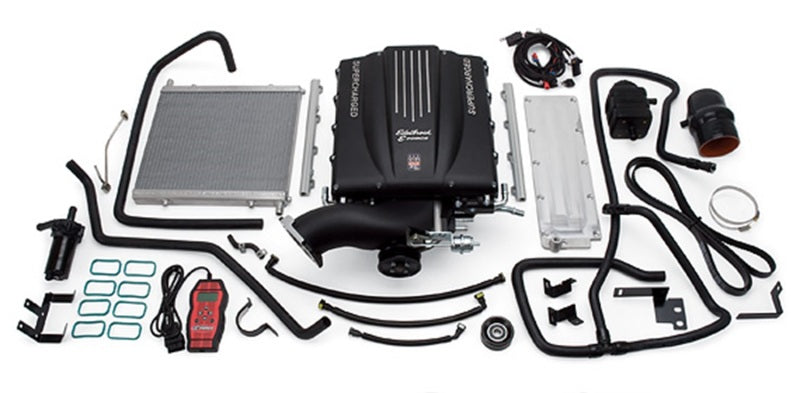

Edelbrock Supercharger Stage 1 - Street Kit 2003-2006 GM Gmt800 Trucks 4 8 5 3 6 0L w/ Tuner

Pre-Order
Regular price $8,683.95
Product INFO
  • Vendor Edelbrock
  • SKU T14.128301
  • Barcode 1577
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 1577


Market Description

The Edelbrock supercharger Stage 1 Street system part #1577 is for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic vehicles. This supercharger system works with the 6.0L, 4.8L and 5.3L Gen III engines and increases the performance of the 6.0L engine to 348 horsepower and 381 ft-lbs at the rear wheels, 4.8L engine to 339 horsepower and 359 ft-lbs of torque at the rear wheels and the 5.3L engine to 345 horsepower and 381 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1577 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Application Summary

Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen

Product Description - Extended

  • Edelbrock Supercharger #1577 is for 2007 Gen III Silverado/Sierra 1500 4.8L, 5.3L, and 6.0L. This kit produces 339 HP and 359 ft-lbs of TQ for the 4.8L, 345 HP and 381 ft-lbs of TQ for the 5.3L and 348 HP and 381 ft-lbs of TQ for the 6.0L.
  • SC ASSY 03-06 GM TRUCK/SUV GMT800 CHASSIS GEN III LS CATHEDRAL PORT 4.8L; 5.3L/6.0L ENGINES

Shipping Restrictions

{ eo : 1in.; eo_carb_number : D-215-110in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-110.pdf }

Key Search Words

Edelbrock; Supercharger; Edelbrock; Corvette; Chevy; Chevrolet; LT1; 2013; 2012; 2011; 2300; 1576

Product Description - Short

  • Edelbrock Supercharger Stage 1 - Street Kit 2003-2006 GM Gmt800 Trucks 4 8 5 3 6 0L w/ Tuner
  • SUPERCHARGER

Label Description

  • Edelbrock Stg 1 Supercharger #1577 03-07 Silverado/Sierra 4.8L/5.3L/6.0L W/ Tune
  • Edelbrock Stg 1 Supercharger #1577 03-07 Silverado/Sierra 4.8L/5.3L/6.0L W/Tune

Product Description - Long

  • E-Force Supercharger for 2003-07 Silverado/Sierra 4.8L/5.3L/6.0L
  • E-Force Stage-1 Street Systems Supercharger

Features and Benefits

Little To No Decrease In Fuel Economy

Product Description - Invoice

Edelbrock supercharger #1577

AAIA Part Type Description

Supercharger Kit

Product Description - Abbreviated

SuperchrgrKt
