Edelbrock Supercharger Stage 1 - Street Kit 2011-2014 Ford F-150 5 0L w/ Tuner

Pre-Order
Regular price $8,505.95
Product INFO
  • Vendor Edelbrock
  • SKU T14.128393
  • Barcode 1584
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 1584


Market Description

  • The Edelbrock supercharger Stage 1 System part #1584 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1584 system is emissions legal and provides the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
  • The Edelbrock supercharger Stage 1 System part #1584 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The Edelbrock #1584 system is emissions legal and provides the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Shipping Restrictions

{ eo : 1in.; eo_carb_number : D-215-89in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-89.pdf }

Product Description - Extended

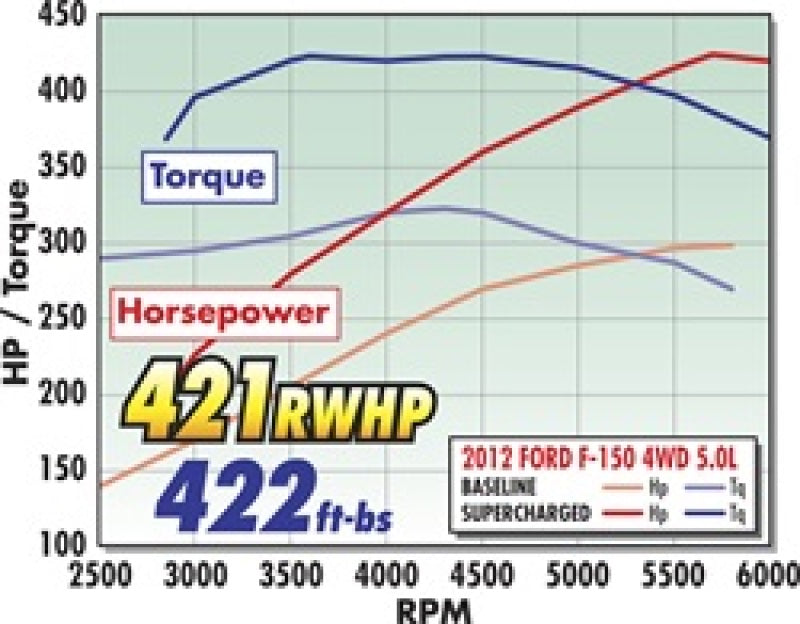

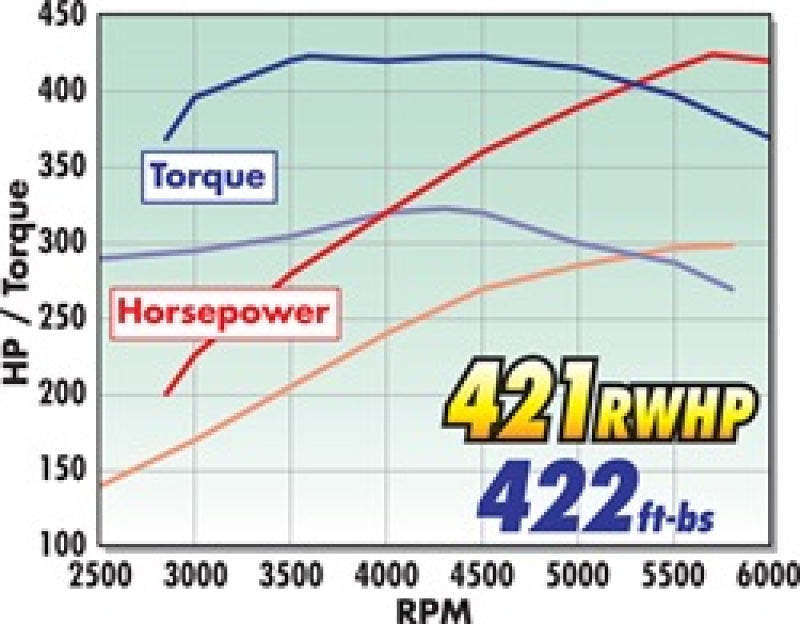

  • The Edelbrock Supercharger System part #1584 is for the 2011-14 Ford F-150. This kit produces 421 RWHP and 422 RWTQ.
  • SC ASSY 2011-12 FORD F-150 5.0L

Key Search Words

Edelbrock; Supercharger; Edelbrock; F-150; V8; 5.0L; Engine; Ford; 2011; 2012; 2013; 2014; 1584

Label Description

  • Edelbrock Stage 1 Supercharger Kit #1584 For 2011-14 Ford F-150 5.0L 4V W/ Tune
  • Edelbrock Stage 1 Supercharger Kit #1584 For 2011-14 Ford F-150 5.0L 4V W/Tune

Product Description - Short

  • Edelbrock Supercharger Stage 1 - Street Kit 2011-2014 Ford F-150 5 0L w/ Tuner
  • SUPERCHARGER

Product Description - Long

  • E-Force Supercharger for 2011-14 Ford F-150 5.0L Coyote
  • E-Force Stage-1 Street Systems Supercharger

Features and Benefits

Little To No Decrease In Fuel Economy

Product Description - Invoice

Edelbrock supercharger #1584

Application Summary

Ford:Coyote 4V:302 (5.0L)

AAIA Part Type Description

Supercharger Kit

Product Description - Abbreviated

SuperchrgrKt
