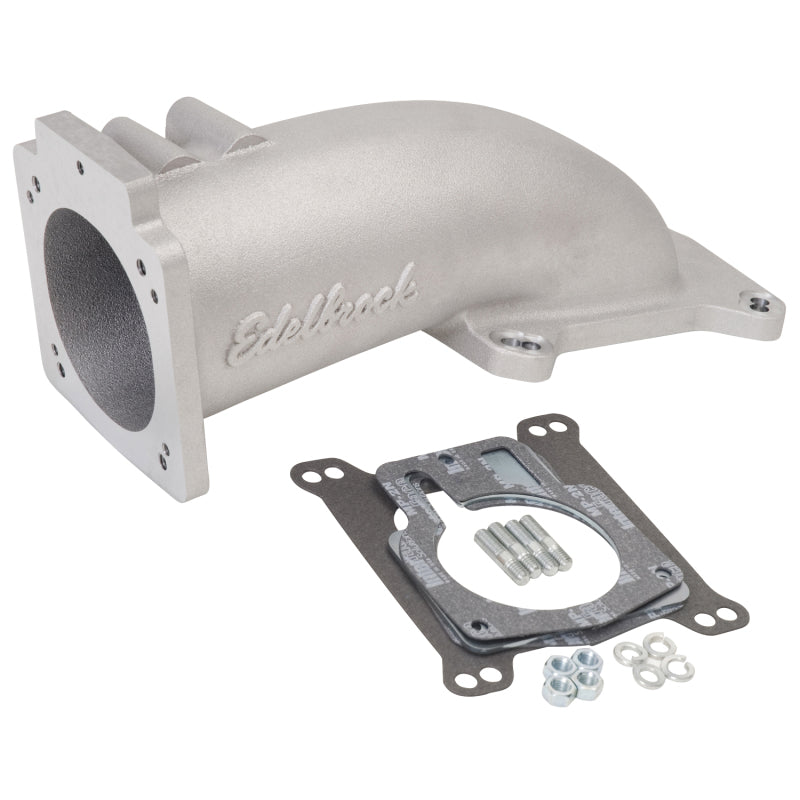

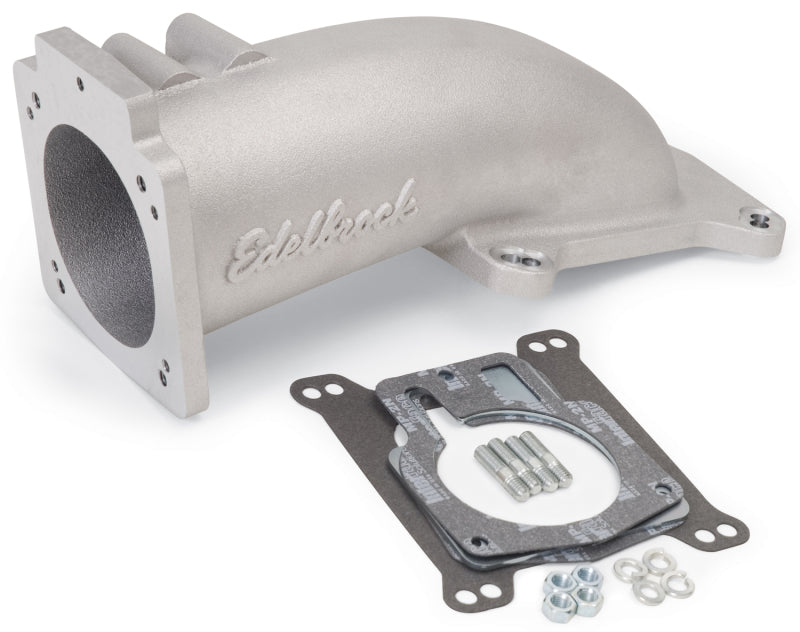

Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish

Pre-Order
Regular price $209.95
Product INFO
  • Vendor Edelbrock
  • SKU T14.128471
  • Barcode 3847
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 3847


Market Description

The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It can be mounted forward, backward, or sideways on our Victor EFI square bore (4150) style manifolds, when fuel rail or waterneck clearance permits. Because of its low profile, it will not fit Chevy manifolds in the forward mount configuration as it will hit the water neck. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. The 3847 adaptor features: 1) Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies. 2) Adapts to standard (4150 style) square bore manifolds.3) Fits manifold either in a forwards, backward, or sideways configuration (user determines clearance). 4) The throttle bore center sits 9.00" forward and only .56" up from the manifold 4150 flange. The throttle body flange points down on a 12 Deg angle.5) Internal divider optimizes flow quantity and distribution into the manifold.6) The PN 3848 Low Profile elbow will also be available. It's throttle body bore is 7.00" forward and 2.00" above the manifold flange.

Key Search Words

Edelbrock; Throttle Body; EFI; Manifold; Elbow; 70mm; 75mm; 80mm; 85mm; 90mm; Ford; Chevy; Honda; LS; 5.0; 5.7; T.B.; 4150; Victor; Jr.; Low; Ultra Low; Big Block; Small Block; Acura; Bracket; Adaptor; 3835; 3845; 3848; 38112; 38353; 38453; 38483

Product Description - Extended

  • The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies.
  • EFI INTAKE ELBOW ULTRA LOW PROFILE UNIVERSAL 90MM TB TO 4150 FLANGE

Product Description - Short

  • Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish
  • FUEL INJECTION COMPO

Label Description

  • Throttle Body Intake Elbow #3847 Ultra Low Profile; 90mm Opening; Satin Finish
  • Throttle Body Intake Elbow #3847 Ultra Low Profile, 90mm Opening, Satin Finish

Product Description - Long

  • Ultra Low Profile Universal Intake Elbow - 90mm T.B. to 4150 Flange
  • Throttle Body Intake Elbow

AAIA Part Type Description

Engine Air Intake Deceleration Elbow

Product Description - Invoice

Ultra Low Intake Elbow

Features and Benefits

As-Cast Finish

Shipping Restrictions

{ eo : 2in.}

Product Description - Abbreviated

Adapter
