Ford Focus RS 2.3L

In stock
Regular price $1,799.00
Product INFO
  • Vendor Xtreme-DI
  • SKU XDI.XDI-Ai010-30
  • Barcode XDI-Ai010-30
Fuel Pumps
Injectors
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

HPFP(s):
HPFP35: Please inquire for current ETA
EVO: Please inquire for current ETA
HPFP60: Please inquire for current ETA

Injectors:
1750cc: Please inquire for current ETA

2000cc: Please inquire for current ETA
2500cc: Please inquire for current ETA

If you would like information on becoming a dealer or about this product please click the button below!

The Factory High Pressure line need to be bent slightly, if you want to avoid this you can purchase a pre-bent line from us.





Install Video

Fastest Focus RS Pass

APPLICATION
Maximum Rail Pressure
200bar / 2900psi (OEM)
180bar / 2600psi (XDI-HPFP35)
200bar (XDI-2000cc Injectors)
250bar / 3600psi (EVO)
260bar / 3800psi (XDI-HPFP60)

MECHANICAL DATA
Geometric Volume
OEM = 1.12cc / rev
XDI-HPFP35/EVO = 1.52cc / rev > +36% capacity
XDI-HPFP60 = 1.83cc / rev > +63% capacity

Fuel Compatibility: all known fuels, all Ethanol blends
Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI, tuning changes needed
Accessories: electric pigtail
Maximum Flow Rate: 240LPH @ 7000rpm (actual measured flow)
Housing material: stainless steel, hard coated Aluminum
Tuning Support:  Standalone, SCT, COBB, HPT
Dry Weight: 1112 g

1750cc Injectors
  • Flow Rates:
    • 1750 cc/min at 100 bar
    • 2600 cc/min at 220 bar
  • Power Capability:
    • 684 BHP on E30
    • 527 WHP on E85
  • Performance: Rock-solid, perfectly linear
  • Fitment: 100% drop-in, with OEM spray pattern
  • Drivability: Stock-like cold start and idle with only one ECU value change
  • Custom Tuning Required

Testing and Documentation:
Each XDI injector set is rigorously tested and matched at three key operating points, with full documentation provided:

  1. Idle Stability: 0.8 ms / 20 bar
  2. Static Flow Reference: 10 ms / 100 bar
  3. WOT Performance and Stability: 6 ms / 200 bar

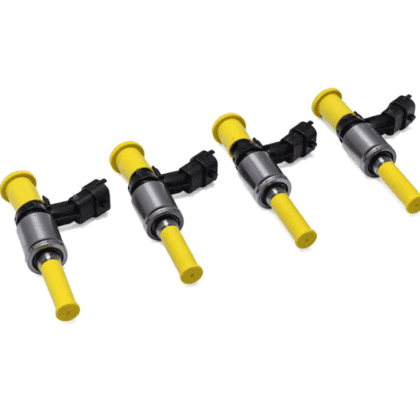

2000cc Injectors
  • Flow Rates:
    • 2000 cc/min at 100 bar
    • 3000 cc/min at 220 bar
  • Power Capability:
    • 684 BHP on E30
    • 527 WHP on E85
  • Performance: Rock-solid, perfectly linear
  • Fitment: 100% drop-in, with OEM spray pattern
  • Drivability: Stock-like cold start and idle with only one ECU value change
  • Custom Tuning Required
  • Note: We do not recommend the 2000cc injectors for the masses on the Focus ST, we recommend our new 1750cc injectors.

Testing and Documentation:
Each XDI injector set is rigorously tested and matched at three key operating points, with full documentation provided:

  1. Idle Stability: 0.8 ms / 20 bar
  2. Static Flow Reference: 10 ms / 100 bar
  3. WOT Performance and Stability: 6 ms / 200 bar
