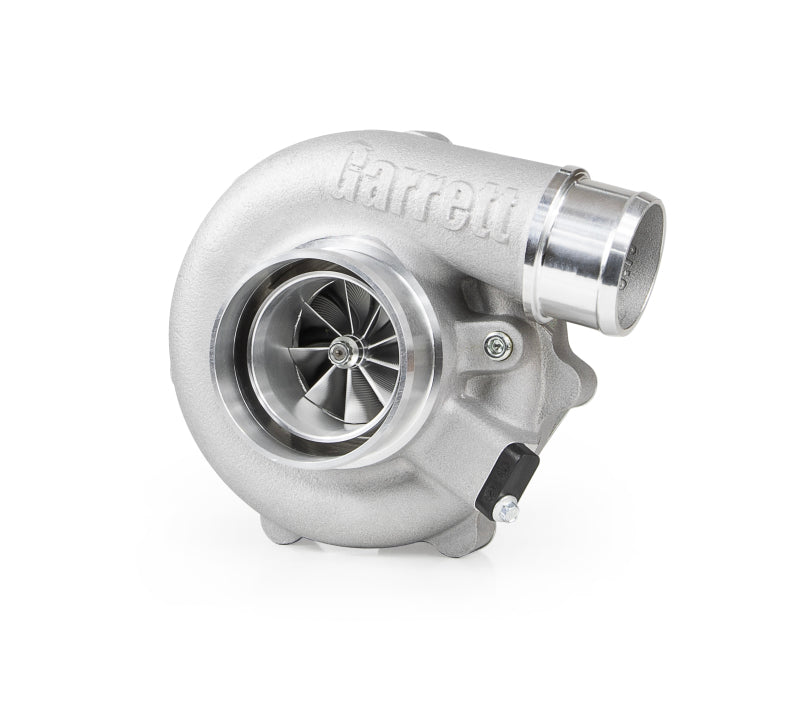

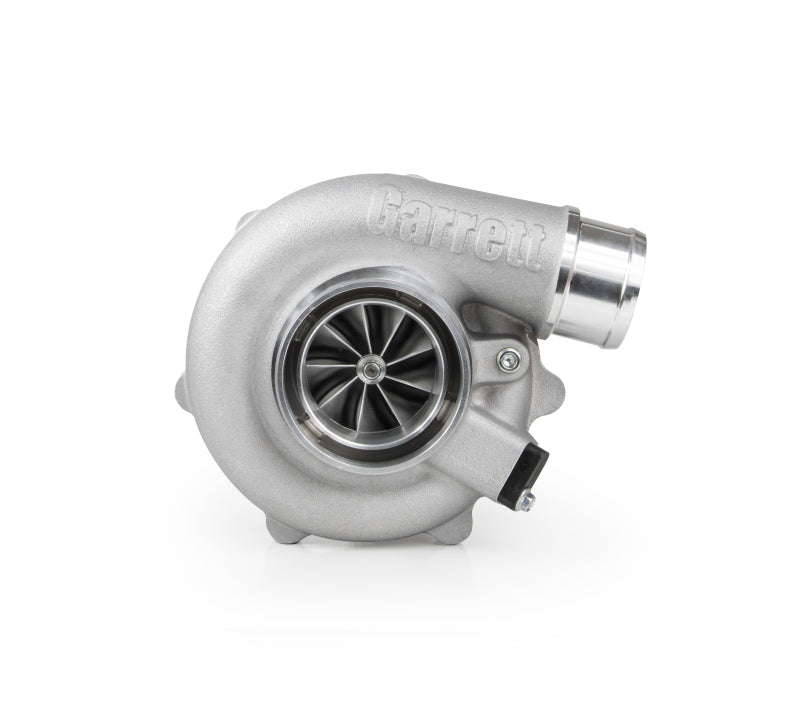

Garrett's Generation II G25-585 updates the original G25 with next-gen compressor aero for improved power and efficiency. With just a 48mm inducer it is the smallest turbo in the G-Series Gen II lineup, but this compact powerhouse delivers exceptional performance and ultra-responsive spool. A clean-sheet ball-bearing turbo with state-of-the-art aerodynamics, it outflows comparable turbos in its class and supports higher pressure ratios.
New aero combined with exotic high-temperature alloys let the engineers push to a 185,000 RPM max turbo speed. Carrying over nothing from the old GT/GTX series, the G-Series II 60mm exducer billet compressor wheel redefines efficiency and airflow, delivering 53 lb/min — a +13 lb/min (+28%) gain over the outgoing GTX2860R Gen II it replaces.
Compressor Specifications
- Compressor wheel exducer: 60mm
- Compressor wheel inducer: 48mm
- Compressor wheel trim: 65
- Compressor wheel material: forged billet aluminum alloy
- Compressor housing A/R: 0.70
- Max flow rate: 53 lb/min
- Max recommended turbo shaft speed: 185,000 RPM
- Compressor inlet: 3.0" hose coupler
- Compressor outlet: 2.0" hose coupler
Features
- Dual ball bearing CHRA, standard and reverse rotation options
- CFD-engineered compressor wheel increases airflow up to 15% at 60mm, with 79-80% efficiency compared to GTX Gen II
- V-band turbine housing to CHRA connection for easier installation, clocking and servicing
- Improved ported shroud inlet for maximum surge resistance
- Fully machined speed sensor port
- Four large water jacket ports for flexible coolant line routing
- Max exhaust gas temperature 1050°C / 1922°F
What's in the Box
- G25-585 supercore (CHRA with compressor housing)
- 1 x -4AN oil restrictor fitting with 1mm restriction orifice, for the recommended 40 psi oil feed pressure
- 2 x -6AN water fittings and two plugs
Supercore only — turbine housing sold separately.
