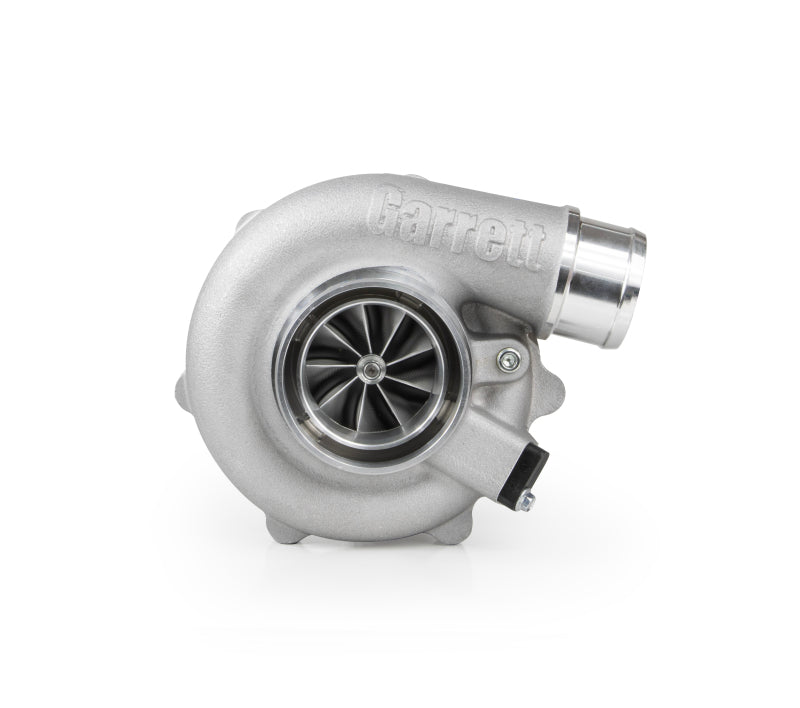

Garrett's G25-700 Gen II turbo brings cutting-edge aerodynamics to the largest turbo in the G25 lineup. With an updated 54mm inducer, the G25-700 delivers improved efficiency and power over the original small-frame G-Series while maintaining the compact form factor. Engineered to support up to 67 lb/min of airflow for a maximum of 700 flywheel horsepower, it is built for fast spool, high power and proven reliability.
The latest advancements in compressor and turbine aero push peak performance further, with a maximum turbo speed of 160,000 RPM and a maximum temperature of 1050°C / 1922°F. The G25 compressor housing uses a traditional 3" inlet and 2" hose outlet with a fully machined speed sensor port, and the improved ported shroud inlet design offers maximum surge resistance with high flow rates in a compact outline.
All G-Series turbos use a V-band turbine housing to CHRA connection, which improves ease of installation, clocking and servicing. Each unit includes a -4AN oil restrictor fitting with a 1mm restriction orifice to provide the recommended 40 psi of oil pressure, four large water jacket ports for flexible coolant routing, and two -6AN water fittings with plugs.
Compressor Specifications
- Compressor wheel inducer: 54mm; exducer: 67mm
- Compressor wheel trim: 65; forged billet aluminum alloy
- Compressor housing: 0.70 A/R
- Max flow rate: 67 lb/min
- Max recommended turbo shaft speed: 160,000 RPM
- Inlet: 3.0" hose coupler; outlet: 2.0" hose coupler
- Dual ball bearing CHRA, available in standard and reverse rotation
This listing is the supercore only — no turbine housing is included. Turbine housings are sold separately.
