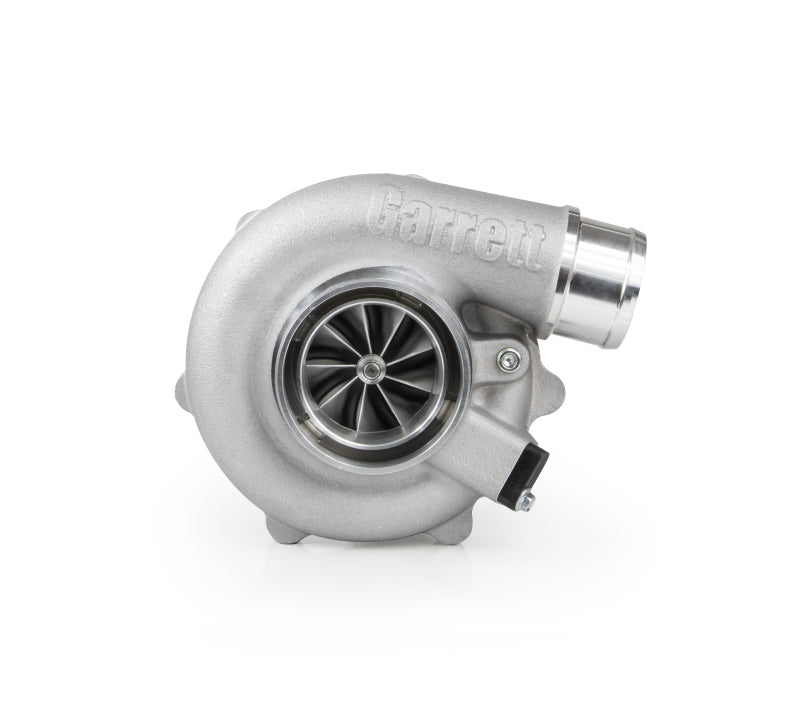

Garrett's G25-700 Gen II turbo brings cutting-edge aerodynamics to the largest turbo in the G25 lineup. With the updated 54mm inducer, the G25-700 delivers improved efficiency and power over the original small-frame G-Series while maintaining the compact form factor. Engineered to support up to 67 lb/min airflow for a maximum of 700 flywheel HP, this turbo is built for fast spool, high power and proven reliability.
The latest advancements in compressor and turbine aero push peak performance to the next level, achieving a maximum turbo speed of 160,000 RPM. This listing is the 0.72 A/R V-band inlet / V-band outlet internal wastegate configuration, sold as a complete assembly with supercore and turbine housing.
Features
- Forged, fully machined billet aluminum compressor wheel with next-generation aerodynamics
- Ported shroud compressor housing for maximum surge resistance and continuous power through the band
- Dual ceramic ball bearing cartridge for longer lifespan and improved shaft balance
- Water-cooled CHRA with four large water jacket ports for flexible water line routing
- Mar-M super alloy turbine wheel that maintains strength under prolonged high exhaust gas temperatures
- V-band turbine housing to CHRA connection for easier installation, clocking and servicing
- Includes one -4AN oil restrictor fitting with a 1mm orifice for the recommended 40 psi oil pressure, plus two -6AN water fittings and two plugs
- Also available in standard and reverse rotation, in EWG and IWG configurations
Specifications
- Compressor wheel inducer: 54mm, exducer: 67mm, trim: 65
- Compressor wheel material: forged billet aluminum alloy
- Compressor housing A/R: 0.70
- Max flow rate: 67 lb/min
- Max recommended turbo shaft speed: 160,000 RPM
- Max temperature: 1050°C / 1922°F
- Compressor inlet: 3.0in hose coupler; outlet: 2.0in hose coupler
