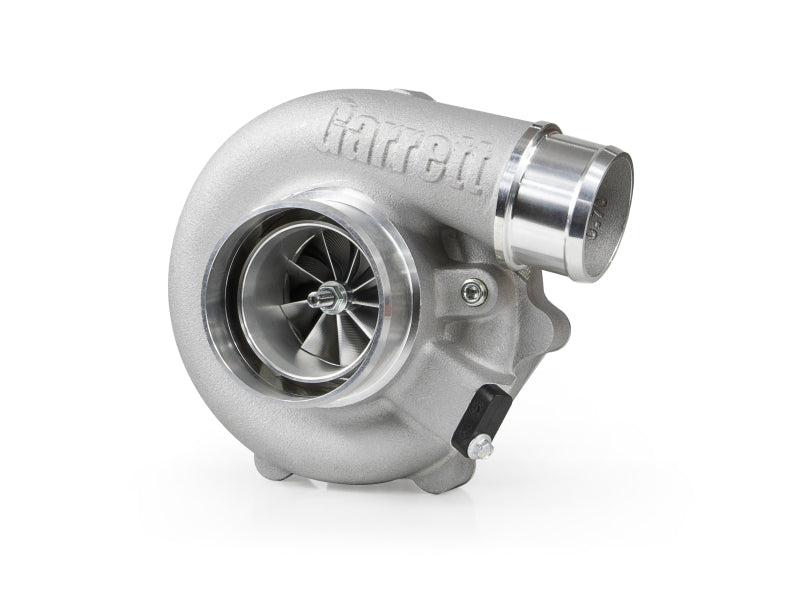

Garrett's Gen II G30-825 is the ultimate 600-700 HP turbo for those who demand power, response, and efficiency. A sweet spot in the G-Series lineup, this ball-bearing turbo provides state-of-the-art aerodynamics in a compact, high-flowing design. If you're considering the G35 for sheer size, take a closer look at the G30-825 — it delivers incredible performance with faster spool and better transient response.
Featuring a 71mm exducer billet compressor wheel, this turbo outflows its GTX3071R Gen II predecessor while maintaining lower backpressure for optimized efficiency. With a max turbo speed of 140,000 RPM and temperature resistance up to 1050°C (1922°F), it is built to handle extreme conditions. The ported shroud compressor housing improves surge resistance, while the fully machined speed sensor port allows for precise data monitoring. Available in standard and reverse rotation, it suits twin-turbo setups and space-constrained single applications alike.
Compressor Specifications
- Compressor wheel exducer: 71mm
- Compressor wheel inducer: 58mm
- Compressor wheel trim: 65
- Compressor wheel material: forged billet aluminum alloy
- Compressor housing A/R: 0.70
- Max flow rate: 77 lb/min
- Max recommended turbo shaft speed: 140,000 RPM
- Compressor inlet: 3.0" hose coupler
- Compressor outlet: 2.0" hose coupler
Features
- Dual ball bearing CHRA, available in standard and reverse rotation
- V-band turbine housing to CHRA connection for easier installation, clocking and servicing
- Improved ported shroud compressor inlet for maximum surge resistance
- Fully machined speed sensor port
- Four large water jacket ports for flexible coolant line routing
- Max exhaust gas temperature 1050°C / 1922°F
What's in the Box
- G30-825 supercore (CHRA with compressor housing)
- 1 x -4AN oil restrictor fitting with 1mm restriction orifice, for the recommended 40 psi oil feed pressure
- 2 x -6AN water fittings and two plugs
Supercore only — turbine housing sold separately.
