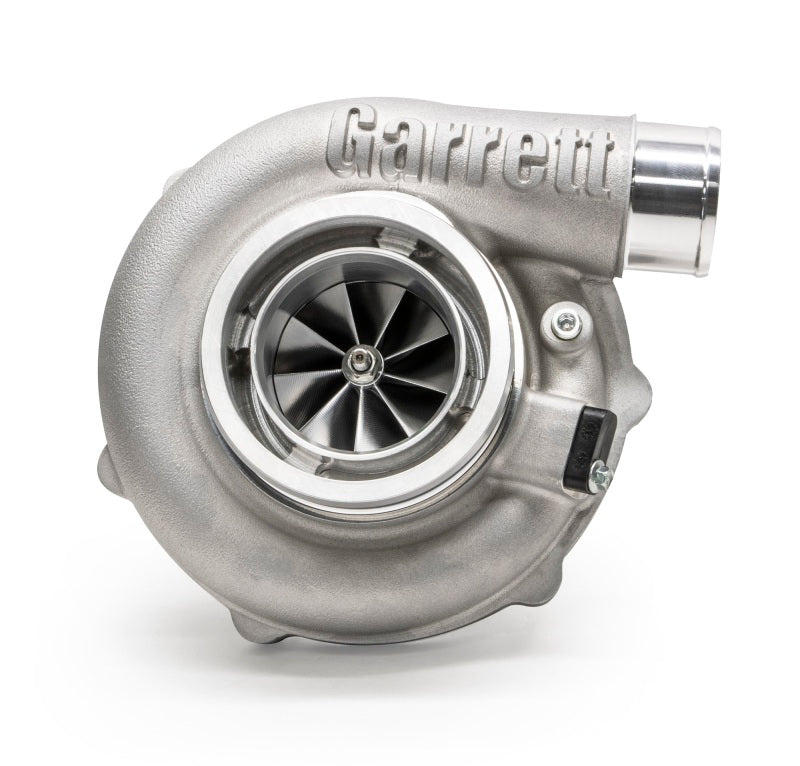

Introducing performance out of a package you never thought possible. The Garrett G-Series G30-900 is the largest and highest-flowing "30" size turbo in history — a clean-sheet design tailored to the demands of hard-core racing while providing industry-leading power capability in a small package.
The G30-900 is compatible with 2.0L-3.5L engine displacements and capable of producing up to 900 horsepower, sitting right between the G30-770 and the G35-900. New compressor and turbine aero combined with high-temperature-resistant materials allowed Garrett engineers to push the limits of performance.
This listing is the reverse rotation super core, PN 880694-5003S. Reverse rotation is intended for the perfect twin-turbo installation, or for a single turbo where installation restrictions demand it.
Features
- Horsepower 550-900, displacement 2.0L-3.5L
- Compressor: 62mm inducer / 76mm exducer, 65 trim, 0.72 A/R
- Turbine: 60mm inducer / 55mm exducer, 84 trim
- Garrett G Series compressor aerodynamics for maximum horsepower
- Turbine wheel aero constructed of MAR-M alloy rated up to 1050°C
- One-piece center housing and backplate for increased durability
- Four large water jacket ports, with two -6AN water fittings and two plugs
- Single-stage oil passage with a -4AN oil restrictor fitting (1mm orifice) for the recommended 40psi oil pressure
- Twin piston rings on both sides of the shaft wheel assembly
- Fully machined speed sensor and pressure ports (speed sensor sold separately)
- V-band turbine housing to CHRA connection allows 360-degree clocking with Garrett non-wastegated housings
Super core only - turbine housing sold separately. Matching reverse rotation turbine kits: 740902-0096 (0.61 A/R), 740902-0097 (0.83 A/R), 740902-0098 (1.01 A/R) and 740902-0099 (1.21 A/R), all V-band inlet and outlet, free float, non-divided.
