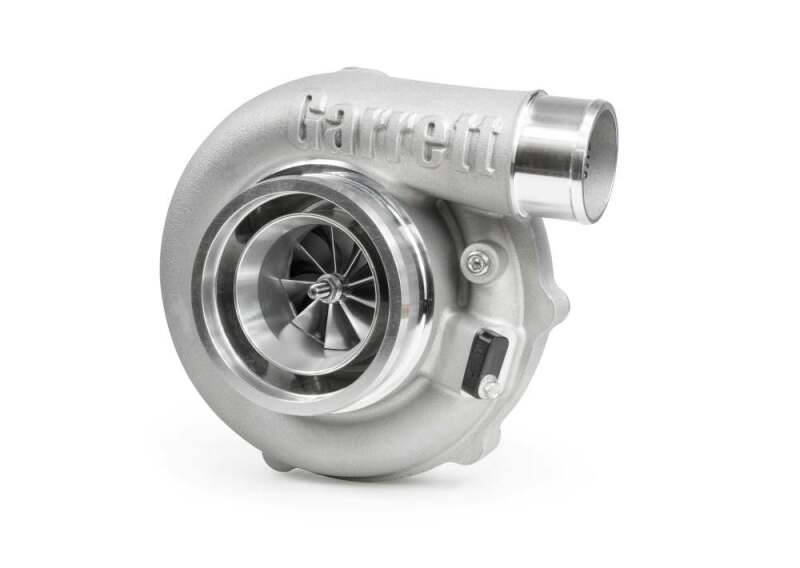

The Garrett G35-990 G-Series II supercore is the rotating assembly and compressor housing of the Gen II G35-990 turbocharger, supplied without a turbine housing so it can be paired with the turbine inlet flange and A/R that suit your build. Garrett's Gen II G35-990 is a powerhouse in a compact package: next-generation aerodynamics on a 62mm inducer / 76mm exducer wheel with an aggressive 65 trim, flowing 89 lb/min for higher pressure ratios, increased efficiency and more top-end power.
Building on the legendary G35, the Gen II design pushes performance further while maintaining Garrett's reliability. The Mar-M turbine wheel (rated to 1050°C / 1922°F) withstands extreme conditions, while the one-piece center housing and backplate enhance structural integrity. Four water jacket ports allow flexible coolant routing, and speed sensor and pressure ports are machined in.
Compressor Specifications
- Compressor wheel inducer: 62mm
- Compressor wheel exducer: 76mm
- Compressor wheel trim: 65
- Compressor wheel material: forged billet aluminum alloy
- Compressor housing A/R: 0.72
- Max flow rate: 89 lb/min
- Max recommended turbo shaft speed: 140,000 RPM
- Compressor inlet: 4.0" hose coupler | outlet: 2.5" hose coupler
Features
- Dual ceramic ball bearing cartridge for longer life and improved shaft balance
- Water-cooled CHRA keeps housing temperatures to a minimum
- V-band turbine housing to CHRA connection for easier installation, clocking and servicing
- Ported shroud compressor housing for maximum surge resistance with high flow in a compact outline
- Fully machined speed sensor port
- Four large water jacket ports for customisable water line routing
- Mar-M super alloy turbine wheel maintains strength under prolonged high exhaust gas temperatures
- In the G35-990 name, "G" designates Garrett's 80+ years of turbo heritage, "35" the frame size, and "990" the maximum horsepower rating at the flywheel
Super core only — turbine housing sold separately.
