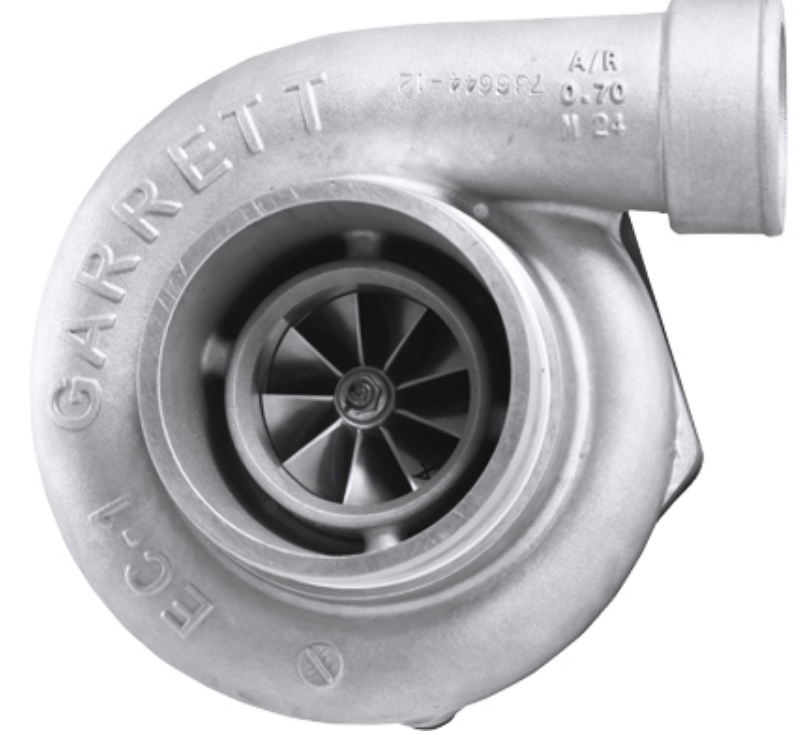

Garrett GTW3684R Dual Ball Bearing Turbo
GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options. Garrett's GTW3684R dual ball bearing or journal bearing turbo with ultra high flow compressor wheel featuring Garrett 8-Blade technology. Compressor housing is has 4″ inlet and 2.5″ outlet with built in anti-surge ported shroud design for Surge Resistance. Sold as Complete Assembly with Supercore and Turbine Housing. New fully machined Speed Sensor Port.
The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.
The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations.

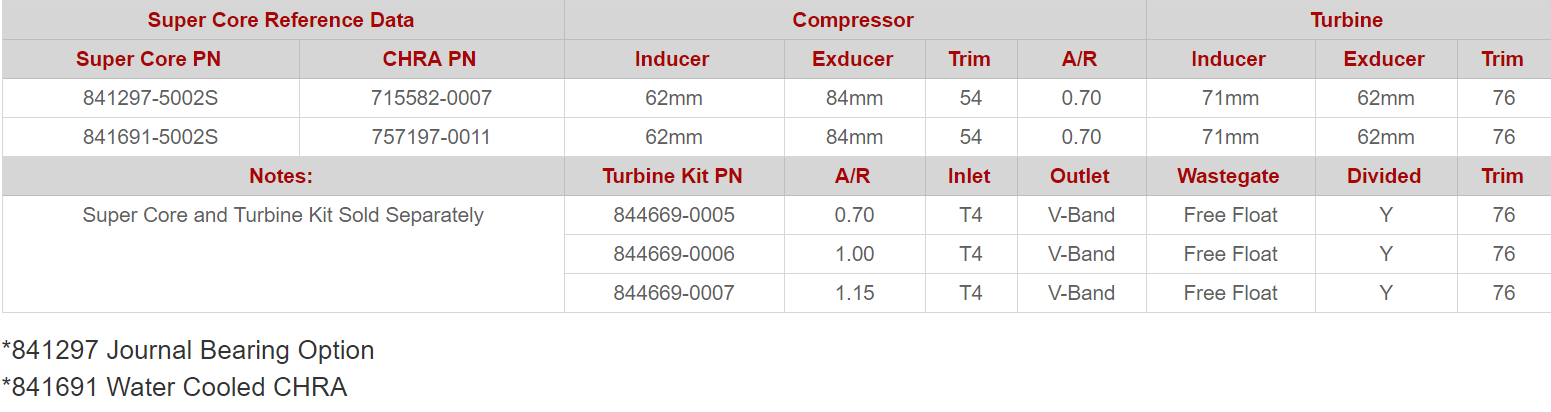

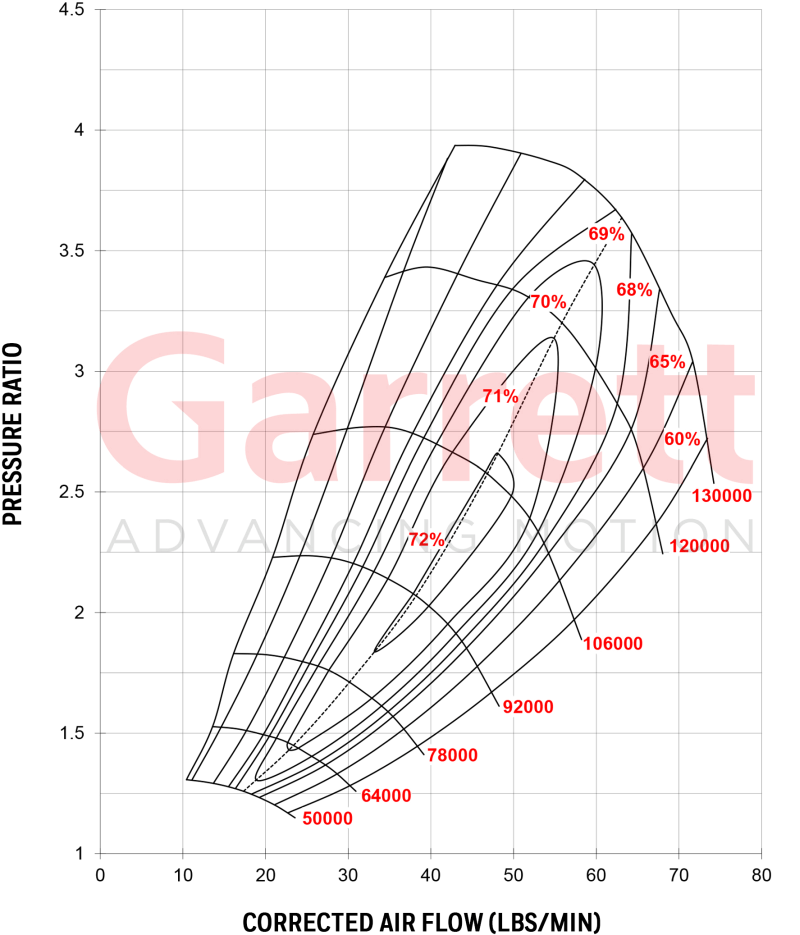

Compressor Specifications
Compressor Wheel Exducer: 84mm
Compressor Wheel Inducer: 62mm
Compressor Wheel Trim: 54
Compressor Wheel A/R: 0.70 A/R
Max Flow Rate: 74 lb/min
Max Recommended Turbo Shaft Speed: 130000 RPM

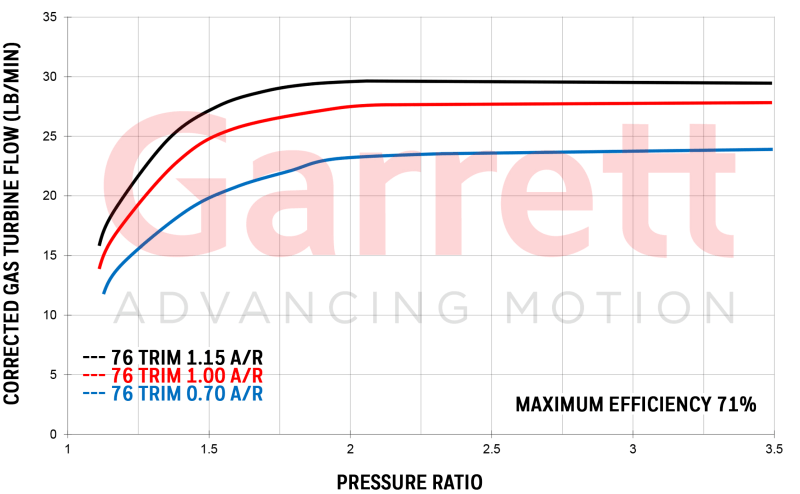

Turbine Specifications
Turbine Wheel Exducer: 62mm
Turbine Wheel Inducer: 71mm
Turbine Wheel Trim: 76
Housing Size and A/R ratio: GTW3684R is available in three (3) different turbine housing configurations:
0.70 A/R T4 Twin Scroll Inlet, V-Band Outlet
1.00 A/R T4 Twin Scroll Inlet, V-Band Outlet
1.15 A/R T4 Twin Scroll Inlet, V-Band Outlet
