Garrett GTW3884R Turbo

In stock
Regular price $989.58
Product INFO
  • Vendor Garrett
  • SKU GTW3884-JB
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

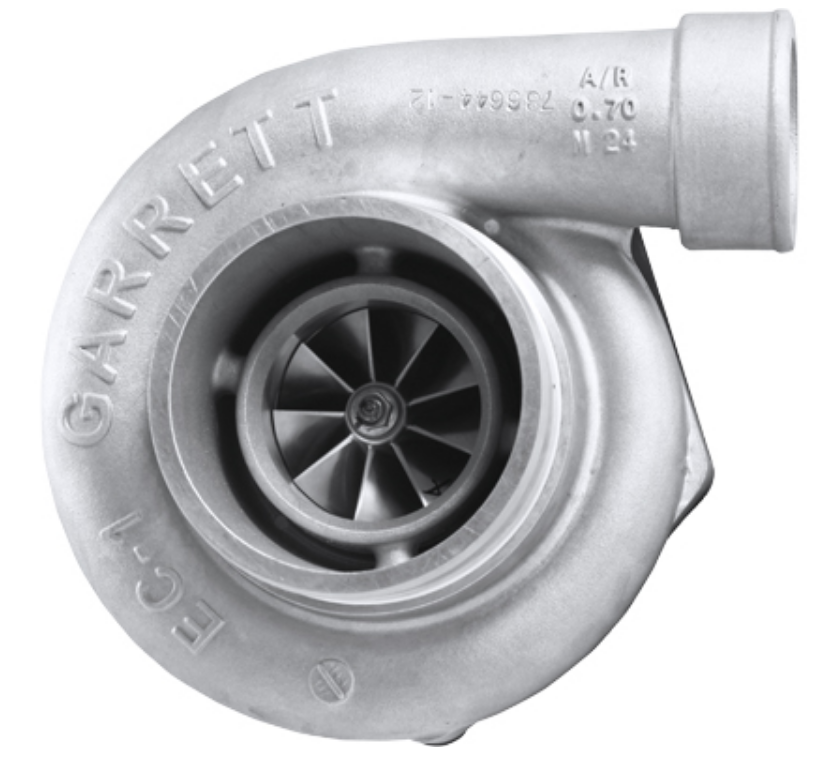

Garrett GTW3884R Turbo
Garrett’s GTW3884R is a very unique turbo in the Garrett lineup. Proven to outperform the GTX40 at a fraction of the cost, this is one of the highest value turbos on the market today for the 600-800+whp range. Available as dual ball bearing or journal bearing with ultra high flow compressor wheel featuring Garrett 8-Blade GTX Gen2 technology. This compressor wheel is borrowed from the GT3584RS and compliments the twinscroll P-trim turbine wheel perfectly. The compressor housing remains Garrett's tried and true T04S with 4″ inlet / 2.5″ outlet and built in anti-surge ported shroud design for Surge Resistance. Sold as Complete Assembly with Supercore and Turbine Housing.

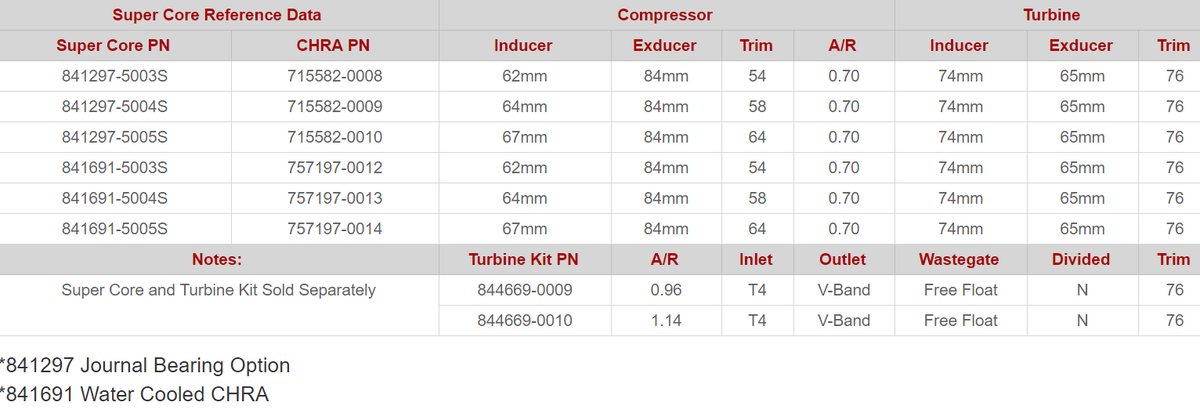

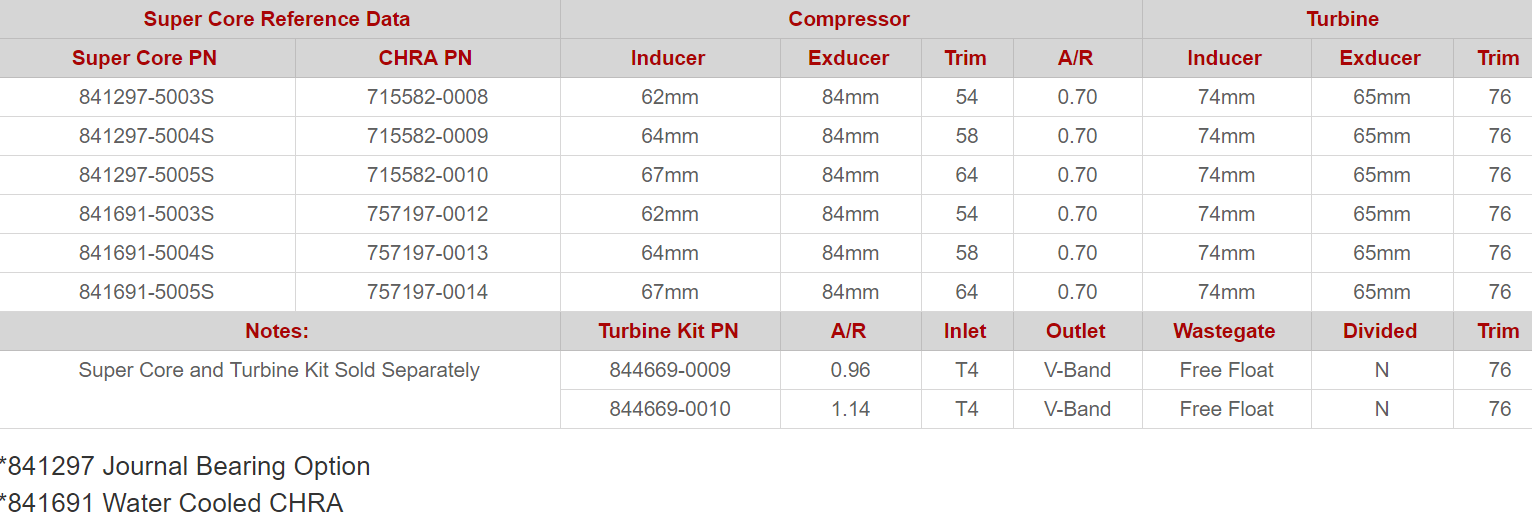

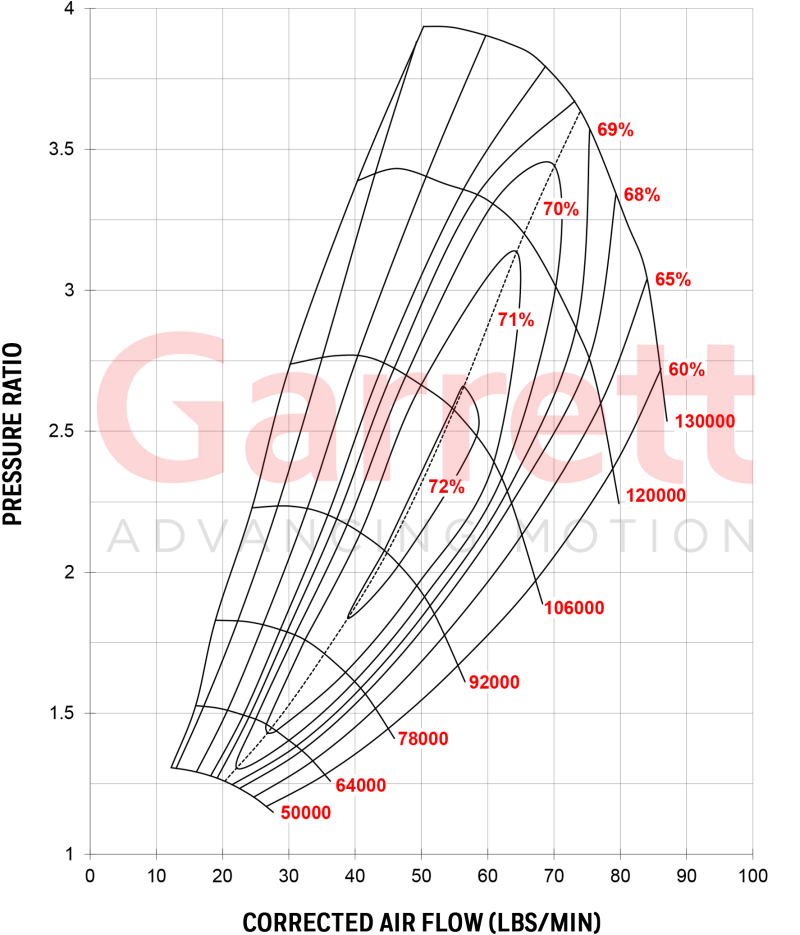

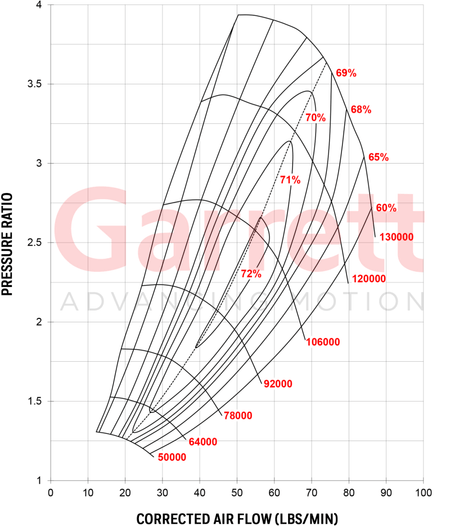

Compressor Specifications

Compressor Wheel Exducer: 84mm
Compressor Wheel Inducer: 62mm (800hp), 64mm (900hp), and 67mm (950hp)
Compressor Wheel Trim: 54, 58, and 64
Compressor Wheel A/R: 0.70 A/R
Max Flow Rate: 87 lb/min
Max Recommended Turbo Shaft Speed: 130000 RPM

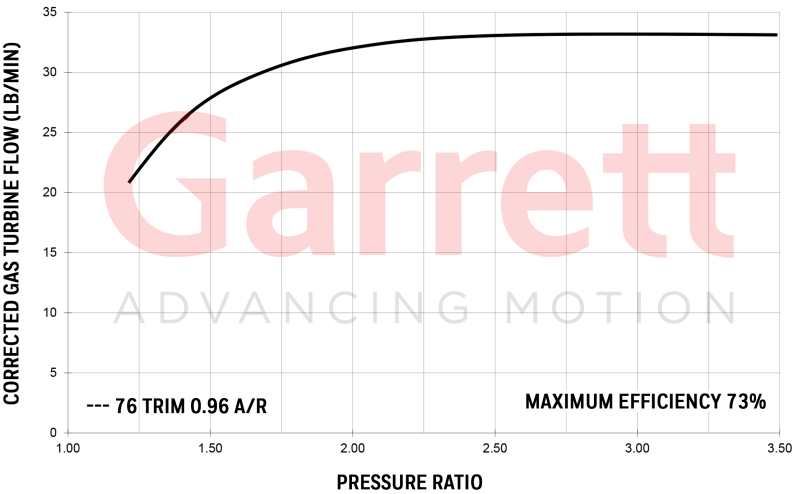

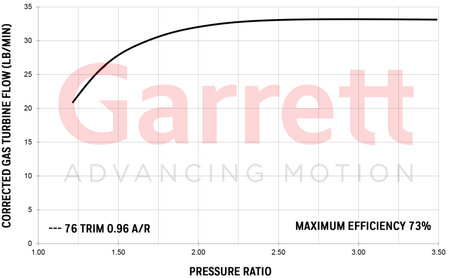

Turbine Specifications

Turbine Wheel Exducer: 65mm
Turbine Wheel Inducer: 74mm
Turbine Wheel Trim: 76
Housing Size and A/R ratio: GTW3884R will suit P trim T4 turbine housings. Twinscroll strongly recommended
