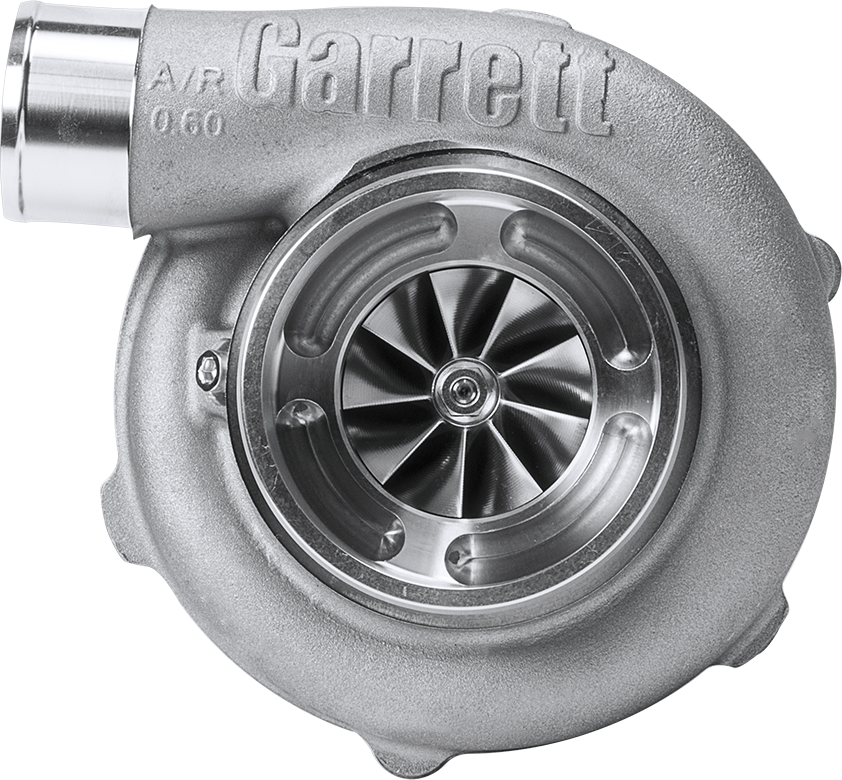

Garrett Reverse Rotation GTX3576R Gen II Dual Ball Bearing Turbo
New Reverse Rotation GTX3576R Gen II dual ball bearing turbo with ultra high flow compressor wheel featuring Garrett 8-Blade technology. This turbo is a perfect match for a mirrored twin turbo setup for V6, V8, V10, and V12 motors which have one turbo per bank. Compressor housing is GTX35 style with 4" inlet and 2" outlet but has built in anti-surge machining. Improved ported shroud design for Surge Resistance. Sold as Complete Assembly with Supercore and Turbine Housing. New fully machined Speed Sensor Port.
Compressor Specifications
Compressor Wheel Exducer: 76mm
Compressor Wheel Inducer: 58mm
Compressor Wheel Trim: 58
Compressor Wheel A/R: 0.60 A/R
Max Flow Rate: 67 lb/min
Max Recommended Turbo Shaft Speed: 145000 RPM
Compressor Housing Connections:
Inlet: 4.0 Hose Coupler
Outlet: 2.0 Hose Coupler
Turbine Specifications
Turbine Wheel Exducer: 62mm
Turbine Wheel Inducer: 68mm
Turbine Wheel Trim: 84
Housing Size and A/R ratio: Reverse Rotation GTX3576R Gen II is available in three (3) different turbine housing configurations:
0.61 A/R V-Band Single Scroll Inlet, V-Band Outlet
0.83 A/R V-Band Single Scroll Inlet, V-Band Outlet
1.01 A/R V-Band Single Scroll Inlet, V-Band Outlet
About Garrett GTX Series Turbochargers
Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
