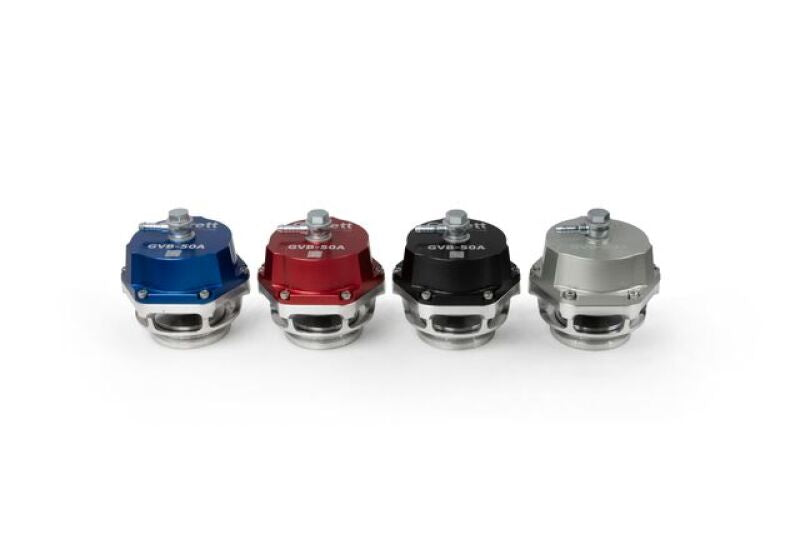

Garrett Vent blow-off valves release excess boost pressure from the charge pipe when the throttle is closed, preventing damage to the turbocharger and other engine components, ensuring smooth operation and prolonging the turbo's lifespan. They were created by the engineers who designed the G-Series turbochargers and GVW wastegates. The GVB-50 is a high-flowing BOV with a 50mm valve; this is the vent-to-atmosphere (VTA) housing in black, part number 914956-0003.
Advanced CFD design software was used to simulate, visualize and quantify airflow before manufacturing began. A proprietary high-temperature Nomex reinforced elastomer diaphragm ensures unmatched durability and fatigue resistance, while a plated stem and bushing lower friction and improve wear resistance.
GVB blow-off valves are set to 10 psi of base pressure and offer configurable rates from 0.2 bar (3 psi) to 0.9 bar (13 psi). Unlike other products on the market, Garrett includes five springs, enabling fine tuning of the pressure setting to optimise BOV and overall turbo system performance. The single vacuum port streamlines functionality.
Features
- 50mm valve, vent-to-atmosphere housing, black finish
- CFD tested for maximum flow and thermal efficiency
- 6061 anodized aluminum actuator cover and fully-machined billet housing
- Base pressure 0.7 bar / 10 psi (blue and white spring installed)
- Configurable spring settings: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 psi
- Wrought aluminum alloy weld flange; 17/7 PH stainless steel springs
- High-temp Nomex reinforced diaphragm; plated stem and bushing
- Stainless steel fittings and fasteners
- Replaceable components and easy diaphragm replacement to increase service life
- BOV flange dimensions interchangeable with Tial Q and QR
What's in the Box
- Springs — installed: blue, white; spare: red, green, brown
- V-band assembly (V-band, bolt, nut)
- Inlet flange and O-ring
- Air fitting hardware (nuts, bolts, washers, banjo fitting)
