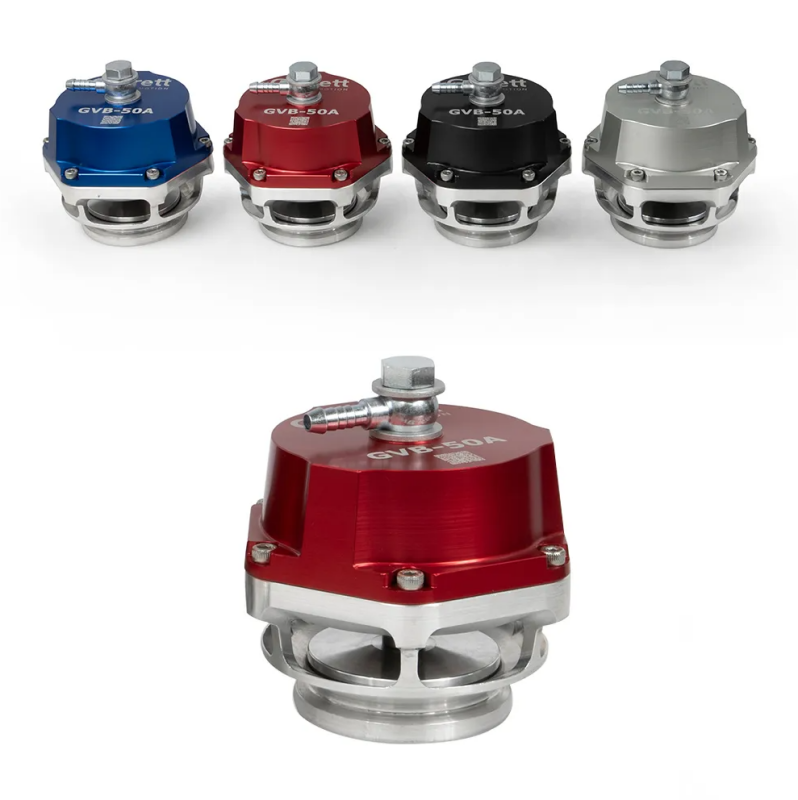

Garrett Vent blow-off valves release excess boost pressure from the charge pipe when the throttle is closed, preventing damage to the turbocharger and other engine components, ensuring smooth operation and prolonging the turbo's lifespan. They are created by the engineers who designed the G-Series turbochargers and GVW wastegates. The GVB-50 is a high-flowing BOV with a 50mm valve, supplied here in the vent-to-atmosphere (VTA) housing, finished in red.
A proprietary high-temperature Nomex-reinforced elastomer diaphragm ensures durability and fatigue resistance, while a plated stem and bushing lower friction and improve wear resistance. GVB blow-off valves ship set to 10 psi base pressure and are configurable from 0.2 bar / 3 psi to 0.9 bar / 13 psi — Garrett includes five springs so the pressure setting can be fine-tuned to your turbo system.
Features
- CFD tested for maximum flow and thermal efficiency
- 6061 anodized aluminum actuator cover and fully machined billet housing
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- Base pressure 0.7 bar / 10 psi (blue and white spring installed)
- Configurable spring settings: 3, 4, 6, 7, 9, 10, 12 and 13 psi
- Wrought aluminum alloy weld flange
- 17-7 PH stainless steel springs
- High-temperature Nomex-reinforced diaphragm
- Stainless steel fittings and fasteners
- Single vacuum port
- BOV flange dimensions interchangeable with TiAL Q and QR
What's in the Box
- Springs — installed: blue and white; spare: red, green and brown
- V-band assembly (V-band, bolt, nut)
- Inlet flange and O-ring
- Air fitting hardware (nuts, bolts, washers, banjo fitting)
Garrett part number 914956-0001 — GVB-50 Blow-Off Valve, VTA 50mm, Red.
