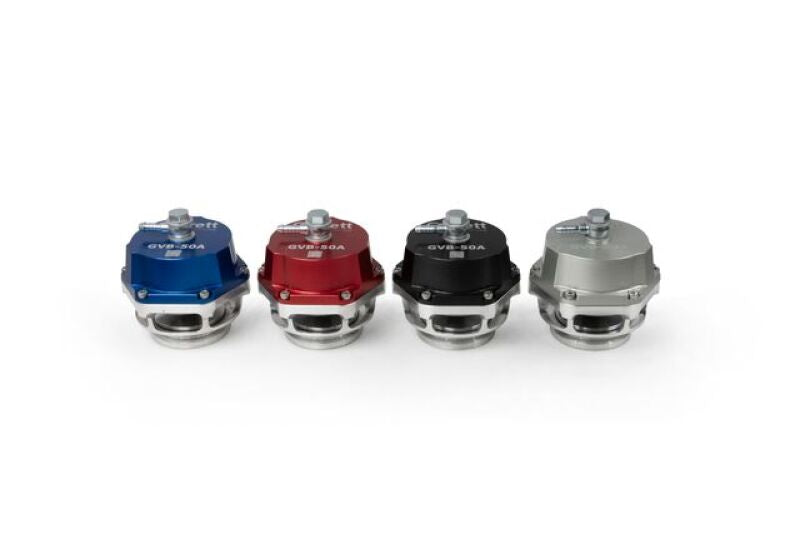

Garrett Vent blow-off valves release excess boost pressure from the charge pipe when the throttle is closed, preventing damage to the turbocharger and other engine components, ensuring smooth operation and prolonging the turbo's lifespan. They were created by the engineers who designed the G-Series turbochargers and GVW wastegates. The GVB-50 is a high-flowing BOV with a 50mm valve, and this listing is the vent-to-atmosphere (VTA) housing in silver.
Advanced CFD design software was used to simulate, visualize and quantify airflow before manufacturing began. A proprietary high-temperature Nomex reinforced elastomer diaphragm ensures unmatched durability and fatigue resistance, while a plated stem and bushing lower friction and improve wear resistance. GVB blow-off valves are set to 10 psi of base pressure and offer configurable rates from 0.2 bar (3 psi) to 0.9 bar (13 psi). Unlike other products on the market, Garrett includes five springs so the pressure setting can be fine-tuned to optimize BOV and overall turbo system performance. A single vacuum port streamlines functionality.
Key Features
- CFD tested for maximum flow and thermal efficiency
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- 6061 anodized aluminum actuator cover and fully-machined billet housing
- Base pressure 0.7 bar / 10 psi (blue and white springs installed)
- Configurable spring settings: 3, 4, 6, 7, 9, 10, 12 and 13 psi
- Wrought aluminum alloy weld flange
- 17/7 PH stainless steel springs
- Plated stem and bushing for lowered friction and wear resistance
- High-temp Nomex reinforced diaphragm
- Stainless steel fittings and fasteners
- BOV flange dimensions interchangeable with TiAL Q and QR
- Garrett part number 914956-0004
What's in the Box
- GVB-50 50mm vent-to-atmosphere blow-off valve, silver
- Springs (installed: blue, white; spare: red, green, brown)
- V-band assembly (V-band, bolt, nut)
- Inlet flange and O-ring
- Air fitting hardware (nuts, bolts, washers, banjo fitting)
