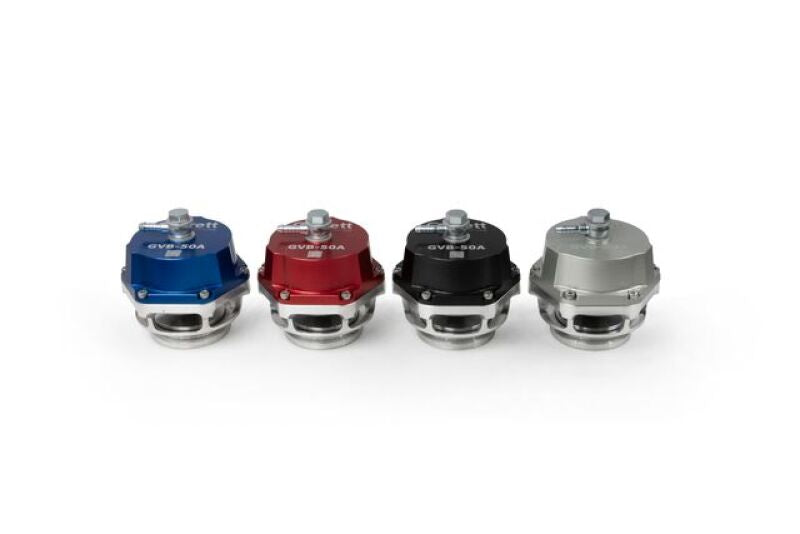

Garrett Vent | Blow-Off Valves release excess boost pressure from the charge pipe when the throttle is closed, preventing damage to the turbocharger and other engine components, ensuring smooth operation and prolonging the turbo's lifespan. They are created by the engineers that designed G-Series turbochargers and GVW wastegates.
The GVB-50R is the recirculating (RCV) housing version of the 50mm GVB blow-off valve, delivering a maximum flow up to 350 CFM | .21 kg/s as a result of advanced CFD design software used to simulate, visualize, and quantify airflow before manufacturing started. The proprietary high-temperature Nomex reinforced elastomer diaphragm ensures durability and fatigue resistance, while a plated stem and bushing lower friction and improve wear resistance.
GVB blow-off valves are set to 10 PSI of base pressure and offer configurable rates from 0.2 Bar | 3 PSI to 0.9 Bar | 13 PSI. Unlike other products on the market, Garrett includes five springs enabling fine tuning of the pressure setting to optimize BOV performance, and therefore overall turbo system performance. The single vacuum port streamlines functionality.
Features
- CFD tested for maximum flow and thermal efficiency
- Maximum flow 350 CFM | .21 kg/s for GVB-50R
- 6061 anodized aluminum actuator cover and fully-machined billet housing
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- Base pressure 0.7 Bar | 10 PSI (blue and white spring installed)
- Configurable spring settings: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 PSI
- Wrought aluminum alloy weld flange
- 17/7 PH stainless steel springs
- Plated stem and bushing for lowered friction and wear resistance
- High-temp Nomex reinforced diaphragm
- Stainless steel fittings and fasteners
- BOV flange dimensions interchangeable with TiAL Q and QR
- Four outlet adapters available for the recirculating valve (adapters sold separately)
What's in the Box
- Springs (installed: blue, white; spare: red, green, brown)
- V-band assembly (V-band, bolt, nut)
- Inlet flange and O-ring
- Air fitting hardware (nuts, bolts, washers, banjo fitting)
