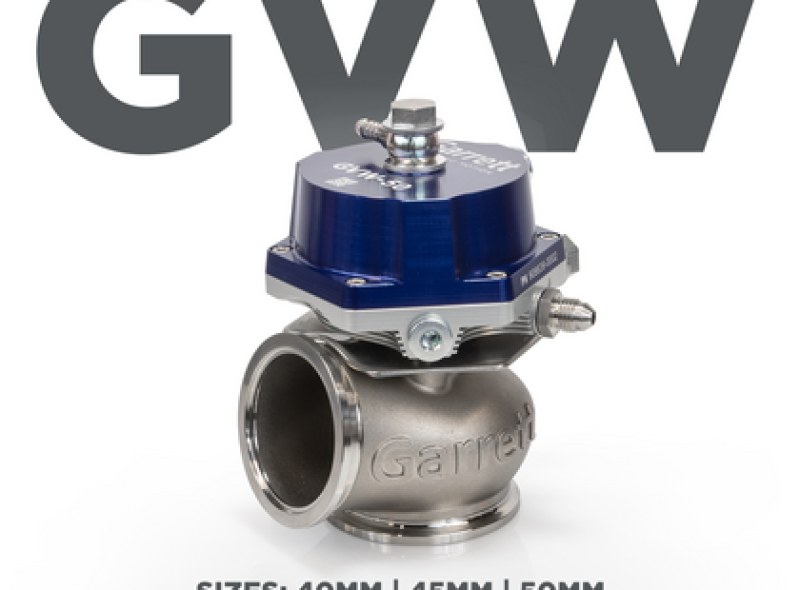

Vent exhaust gas around the turbine and precisely regulate turbocharger shaft speed on any racing turbocharger with Garrett's 40mm external wastegate kit, the GVW-40. Garrett's team originally thought the GVW wastegates would be a quick project; after digging into what it actually takes to build the best wastegate, they spent a full year on the design.
The GVW-40 has been CFD tested for maximum flow, thermal efficiency and durability. The valve body is cast from high-temp stainless steel and rated for exhaust gas temperatures up to 1050°C, and the design was crafted so the wastegate stays dead consistent no matter the temperature, year after year. It delivers 5% more flow than any competitor. It ships set to 1 bar (14.5 psi) and can be configured from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi) base boost with the included springs. Garrett recommends the GVW-40 for twin-scroll dual-wastegate applications.
Technology and Features
- CFD tested for maximum flow and thermal efficiency
- Optimized actuation stability and temperature resistance for superb durability
- Fully replaceable bushing components for longer service life
- Easy Nomex diaphragm replacement
- Anodized aluminum top cap with optional watercooled actuator port
Mechanical Specs
- Valve diameter: 40mm
- Valve mass: 1.27 kg / 45 oz
- Maximum spring base pressure: 1.7 bar / 25 psi (1:1 backpressure ratio)
- Minimum spring base pressure: 0.2 bar / 3 psi (1:1 backpressure ratio)
- Air port fitting: M10x1.0 to hose barb (6mm / 0.25in hose ID)
- Liquid port fitting: M8x1.0 to AN-3
Materials
- Valve housing: high-temp stainless steel rated up to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully-machined anodized 6061 aluminum
- Valve guide / bushing: Nitronic 60
- Valve: high-temp stainless steel with plated stem
- V-band: CNC machined 304 stainless steel
- Flanges: fully machined 304 stainless steel
- Springs: 17/7 PH stainless steel
Thermal Specs
- Maximum exhaust gas temperature, peak: up to 1050°C
- Maximum thermal stress (non-cooled): 270°C actuator body temperature during thermal cycle testing
- Maximum thermal stress (watercooled): 130°C body temperature during thermal cycle testing
What's in the Box

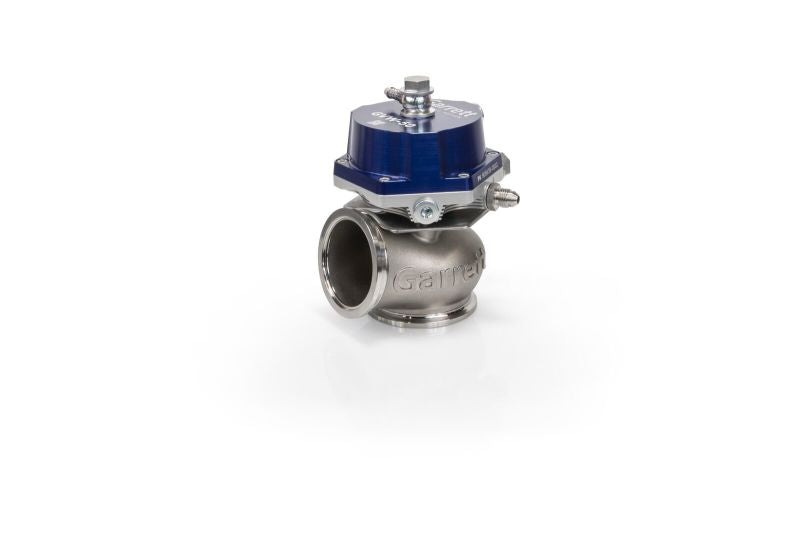

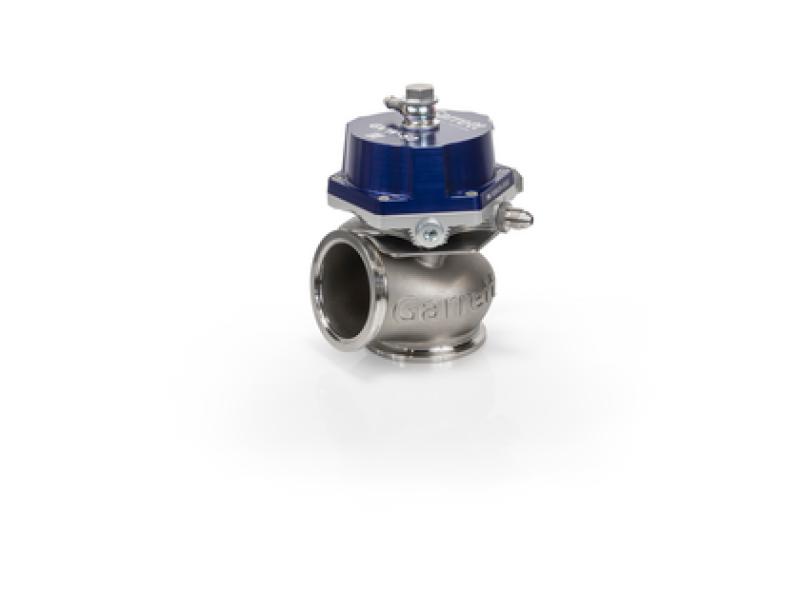

- GVW-40 40mm external wastegate, blue
- Springs
- Fasteners
- Fittings
- V-bands and clamps
- Flanges
