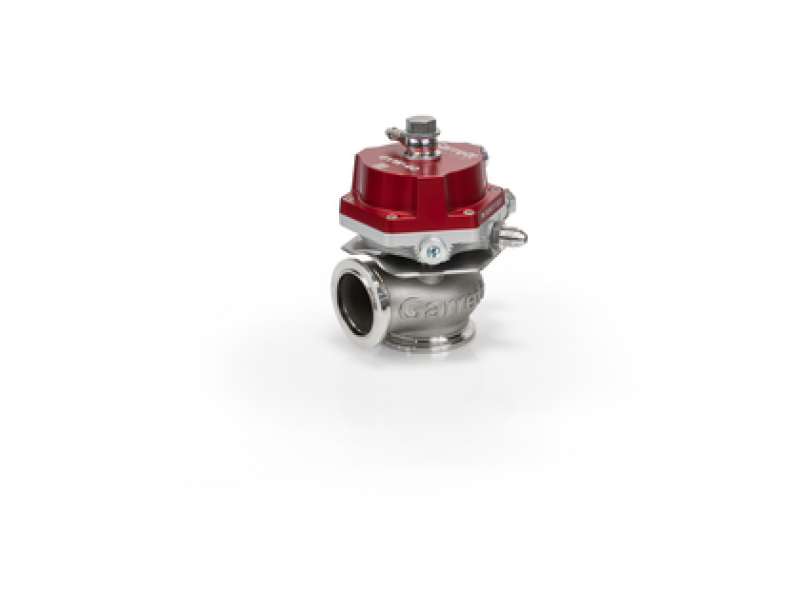

Vent exhaust gas around the turbine and precisely regulate turbocharger shaft speed on any racing turbocharger with Garrett's 40mm external wastegate kit, the GVW-40. It has been CFD tested for maximum flow, thermal efficiency and durability.

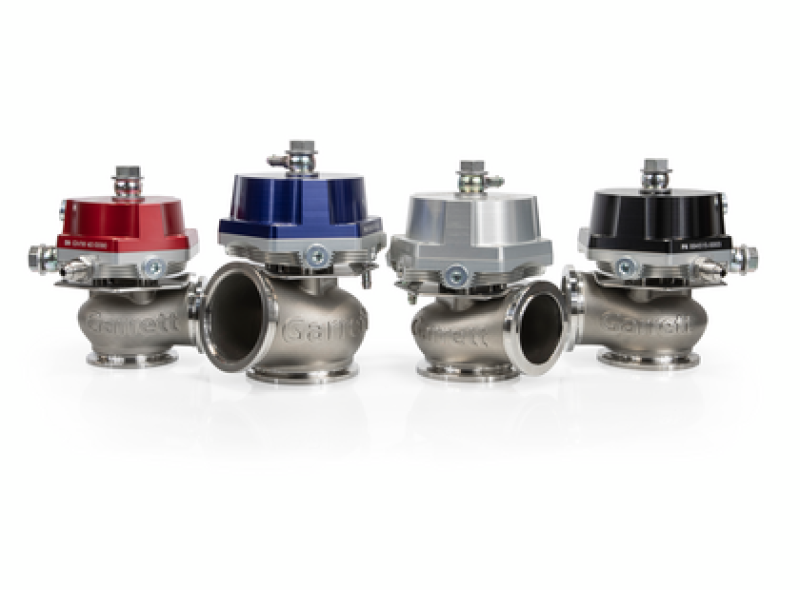

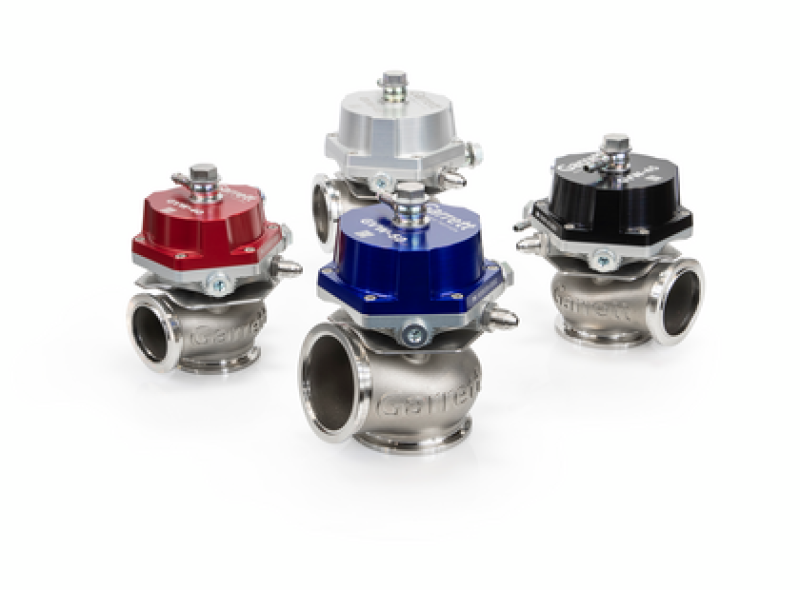

Garrett's team spent a full year designing the GVW wastegate family (GVW-40, GVW-45, GVW-50). The GVW-40 valve body is cast from high-temp stainless steel and rated for exhaust temperatures up to 1050°C, and the design was specifically crafted so the wastegate stays consistent no matter the temperature, year after year — delivering the maximum flow possible, 5% more than any competitor.
When it ships, the GVW-40 is set to 1 bar (14.5 psi). With the included springs it can be configured from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi) base boost. Garrett recommends the GVW-40 for twin-scroll dual wastegate applications.
Technology & Features
- CFD tested for maximum flow and thermal efficiency
- Superb durability thanks to optimized actuation stability and temperature resistance
- Fully-replaceable bushing components, increasing service life
- Easy Nomex diaphragm replacement
- Anodized aluminum top cap with optional watercooled actuator port
Specifications
- Valve diameter: 40mm; valve mass 1.27 kg / 45 oz
- Spring base pressure: 0.2 bar (3 psi) to 1.7 bar (25 psi) at 1:1 backpressure ratio
- Air port fitting: M10x1.0 to hose barb (6mm / 0.25 in hose ID); liquid port: M8x1.0 to AN-3
- Valve housing: high-temp stainless steel rated up to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully-machined anodized 6061 aluminum
- Valve guide/bushing: Nitronic 60; valve: high-temp stainless steel with plated stem
- V-band and flanges: CNC machined 304 stainless steel; springs: 17/7 PH stainless steel
- Max exhaust gas temperature: 1050°C peak; actuator body 270°C non-cooled, 130°C watercooled
What's in the Box
- GVW-40 wastegate with springs installed, plus the full spring set
- Fasteners, fittings, V-bands, clamps and flanges
