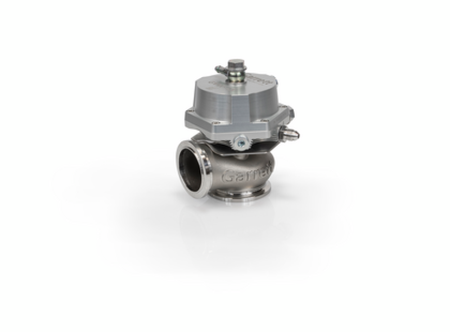

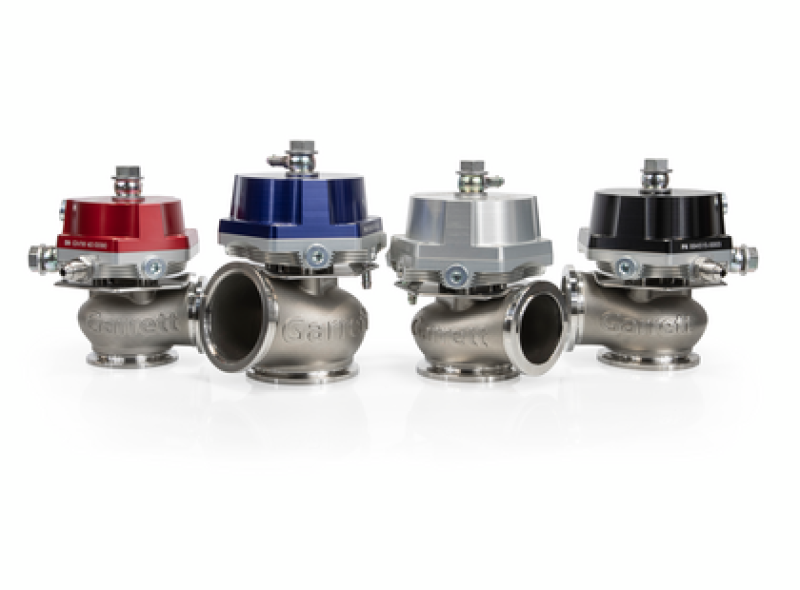

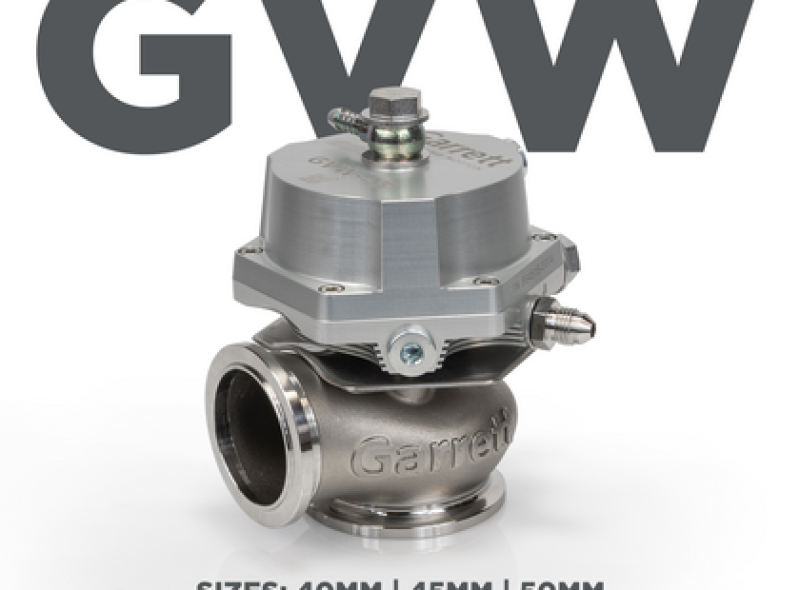

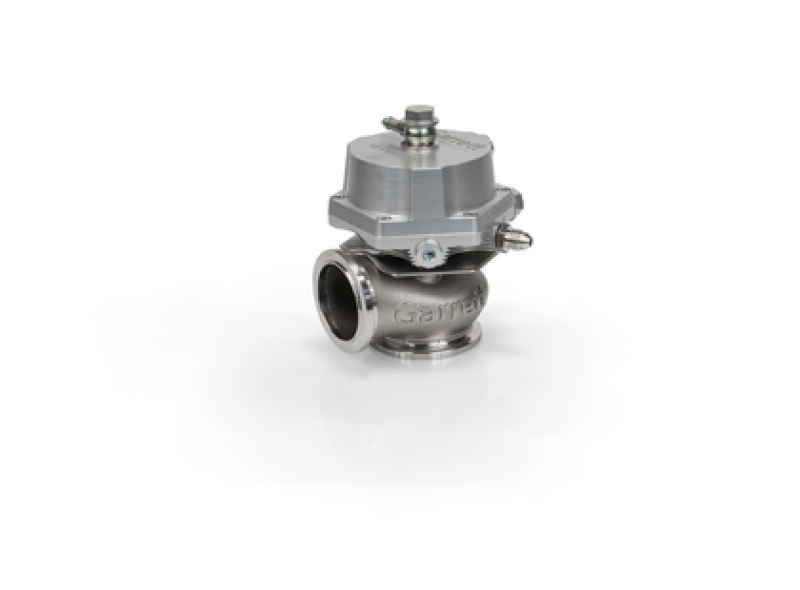

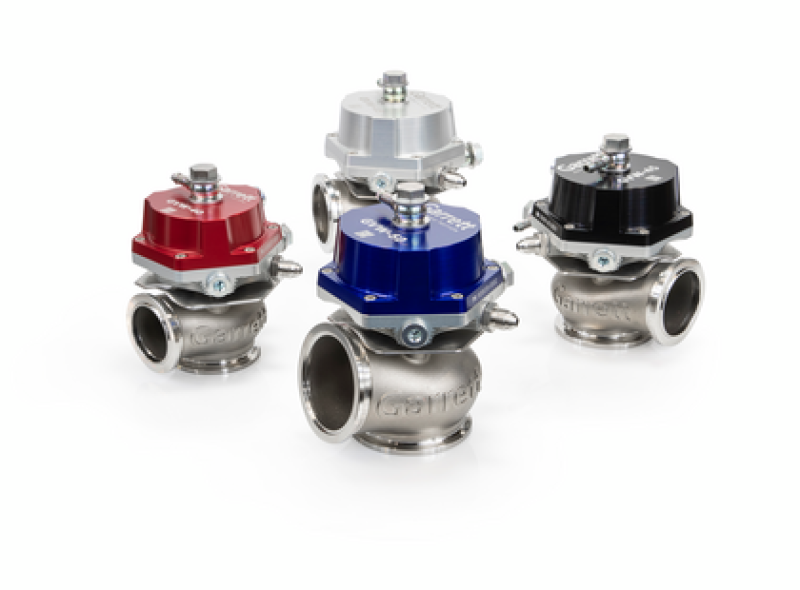

Vent exhaust gas around the turbine and precisely regulate turbocharger shaft speed on any racing turbocharger with Garrett's 40mm external wastegate kit, the GVW-40. Garrett spent a full year designing the GVW family (GVW-40, GVW-45 and GVW-50) to build what it considers the best wastegate available.
The GVW-40 has been CFD tested for maximum flow, thermal efficiency and durability. The valve body is cast from high-temp stainless steel and rated for exhaust gas temperatures up to 1050°C, and the design was crafted so the wastegate stays dead consistent no matter the temperature, year after year. It delivers the maximum flow possible — 5% more than any competitor — giving you the best performance from your turbocharger and the most efficient output from your engine.
The GVW-40 ships set to 1 bar (14.5 psi). With the included springs it can be configured from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi) base boost. Garrett includes all fasteners, springs, fittings, V-bands, clamps and flanges, so the kit is ready to install as soon as it arrives. Garrett recommends the GVW-40 for twin-scroll dual wastegate applications.
Features
- CFD tested for maximum flow and thermal efficiency
- Optimized actuation stability and temperature resistance for superb durability
- Fully replaceable bushing components for longer service life
- Easy Nomex diaphragm replacement
- Anodized aluminum top cap with optional watercooled actuator port
Specifications
- Valve diameter: 40mm
- Valve mass: 1.27kg / 45 oz
- Spring base pressure: 0.2 bar (3 psi) to 1.7 bar (25 psi) at 1:1 backpressure ratio
- Air port fitting: M10x1.0 to hose barb (6mm / 0.25in hose ID)
- Liquid port fitting: M8x1.0 to AN-3
- Valve housing: high-temp stainless steel rated to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully machined anodized 6061 aluminum
- Valve guide / bushing: Nitronic 60
- Valve: high-temp stainless steel with plated stem
- V-band: CNC machined 304 stainless steel; flanges: fully machined 304 stainless steel
- Springs: 17-7 PH stainless steel
- Thermal stress: 270°C actuator body temperature non-cooled, 130°C watercooled
What's in the Box
- GVW-40 40mm wastegate
- Configuration springs
- Fasteners, fittings, V-bands, clamps and flanges
