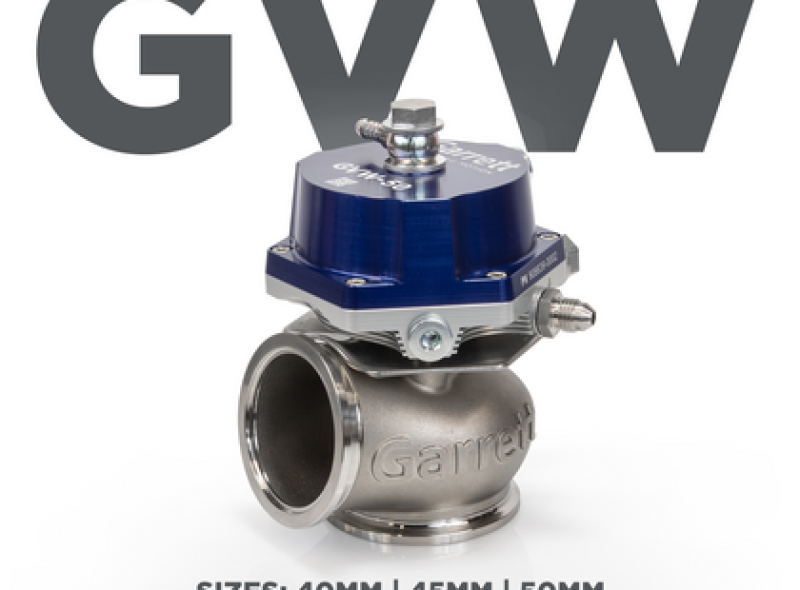

Optimal boost control with the maximum flow possible — Garrett's 45mm GVW-45 wastegate vents exhaust gas around the turbine wheel to precisely regulate turbocharger shaft speed for any racing turbocharger. The GVW-45 kit has been CFD tested to deliver thermal efficiency with superior durability and versatility.
Garrett engineers believed making a truly great wastegate would be easy. They quickly found out that wasn't the case. It took the team a full year to design the GVW wastegates, and when they were finished they'd crafted what is the most impressive wastegate available. Developed with the help of Formula 1 teams, it provides 5% more boost than any competitor and stays dead consistent no matter the temperature.

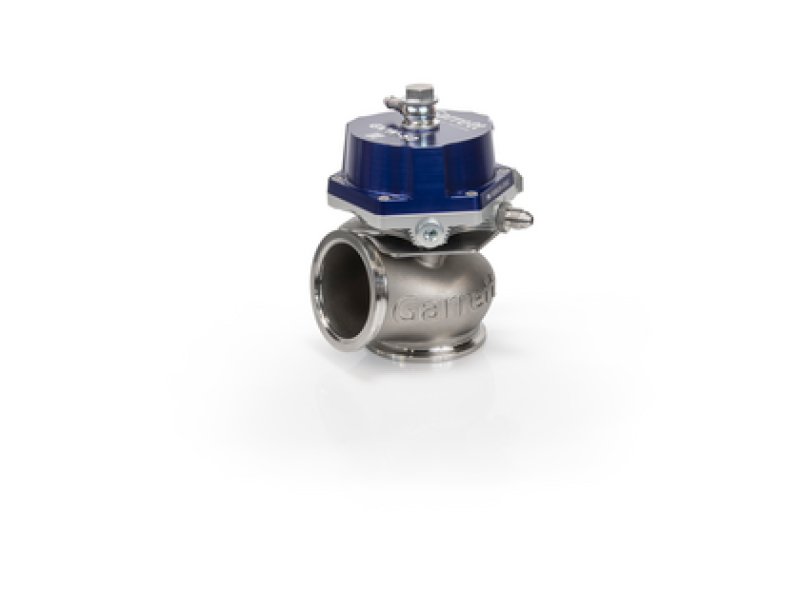

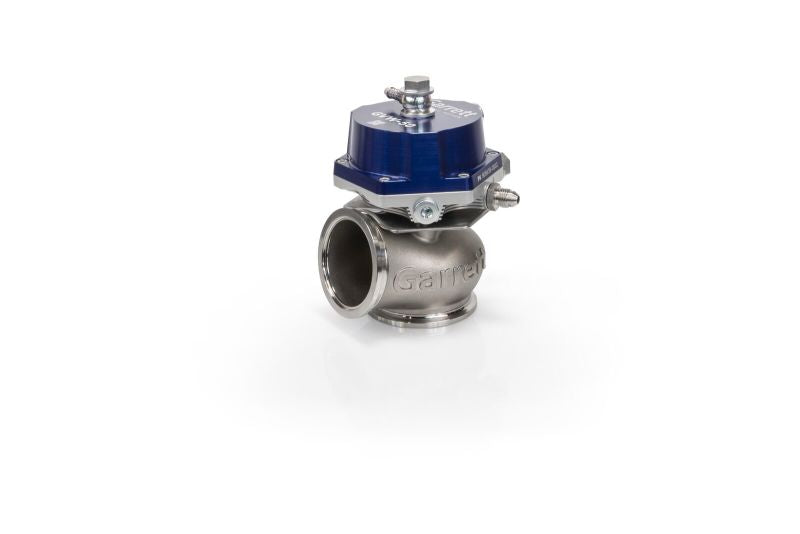

Cast from high-temp stainless steel and rated for exhaust temperatures up to 1050°C, this 45mm wastegate comes set to 1 bar (14.5 psi) but includes all springs to configure from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi) base boost. Garrett provides everything needed to begin installation as soon as the product arrives: fasteners, springs, fittings, V-bands, clamps and flanges. This listing is the blue finish.
Technology & Features
- CFD tested for maximum flow and thermal efficiency
- Optimized actuation stability and temperature resistance
- Fully replaceable bushing components for increased service life
- Easy Nomex diaphragm replacement
- Optional watercooled actuator ports
Mechanical Specs
- Valve diameter: 45mm
- Valve mass: 1.47kg / 52oz
- Spring base pressure: 0.2 bar (3 psi) to 1.7 bar (25 psi) at 1:1 backpressure ratio
- Air port fitting: M10x1.0 to hose barb (6mm / .25in hose ID)
- Liquid port fitting: M8x1.0 to AN-3
Material Specs
- Valve housing: high-temp stainless steel rated up to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully machined anodized 6061 aluminum
- Valve guide / bushing: Nitronic 60
- Valve: high-temp stainless steel with plated stem
- V-band: CNC machined 304 stainless steel
- Flanges: fully machined 304 stainless steel
- Springs: 17/7 PH stainless steel
Thermal Specs
- Maximum exhaust gas temperature, peak: up to 1050°C
- Maximum thermal stress, non-cooled: 270°C actuator body temperature
- Maximum thermal stress, watercooled: 130°C body temperature
